PT00A-12-10P
| Manufacturer | |
| Description | Conn MIL-C-26482 Circular PIN 10 POS Solder ST Wall Mount 10 Terminal 1 Port MIL-C-26482 Series 1 Connector, Solder Contacts CONN RCPT 10 POS WALL MNT W/PINS Circular MIL Spec Connector 10P Sz 12 Wall Mount Pin Receptacle CONNECTOR, WALL MOUNTING RECEPTACLE, CLASS A, SIZE 12, 10 #20 SOLDER PIN CONTACT |
| Category |
Business
| Other Names | PT00A1210P | Product Category | Circular MIL Spec Connector |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS non-compliant | MIL Type | MIL-DTL-26482 |
| Approval Agency Marking | UL Recognized | ||
Electrical
| Voltage Rating | 600VAC | Current Rating (Max) | 7.5A |
Mechanical
| Packaging | Bulk | Shell Size | 12 |
| Wire Gauge | 20-24 | Orientation | N (Normal) |
| Shell Style | wall mount receptacle | Termination | Solder |
| Contact Type | pin contacts | Mounting Type | Wall Mount |
| Shell Plating | Chromate over Cadmium, Olive Drab | Angle of Throw | Straight |
| Connector Type | Receptacle, Male Pins | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Housing Finish | Olive Drab Cadmium |
| Mounting Style | Panel | Package / Case | Metal |
| Shell Material | Aluminum Alloy | Connector Usage | Bayonet |
| Insertion Angle | normal (no rotation) position | Housing Material | Aluminum |
| Primary Material | 26482 Commercial | Termination Style | Solder |
| 1st Contact Gender | Pin (Male) | Mating Orientation | Bayonet |
| Number of Contacts | 10 | Dielectric Material | Neoprene |
| Number of Positions | 10 | Shell Size - Insert | 12-10 |
| Mounting Hole Diameter | 0.12 " | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
| Contact Layout, Typical | 10#20 | ||
Product Info
| Type | MIL-C-26482 Circular | Class | A |
| Gender | RCP | Series | PT |
| Features | 5 Key/Keyway Polarization | Manufacturer | PT Series |
| Product Type | Receptacles | Service Class | general duty back shell |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts
PT06A-12-10S
amphenol
Conn MIL-C-26482 Circular SKT 10 POS Solder ST Cable Mount 10 Terminal 1 Port MIL-C-26482 Series 1 Connector, Solder Contacts CONN PLUG 10POS W/SOCKT SOLDER connector;metal circular;straight plug;size 12;10 #20 solder socket contact Circular MIL Spec Connector 10P Size 12 Straight Socket Plug Conn Miniature Cylindrical SKT 10 POS Solder ST Cable Mount 10 Terminal 1 Port connector, metal circular, straight plug, size 12, 10 #20 solder socket contact
10-101949-012
amphenol
Connector Accessories Flange Gasket 12 Shell Size SEALING GASKET FOR #12 WALL RCPT Circular MIL Spec Tools, Hardware & Accessories MOUNTING FLANGE GASKET connector accessory, mounting flange gasket, for pt and pc receptacles, size 12

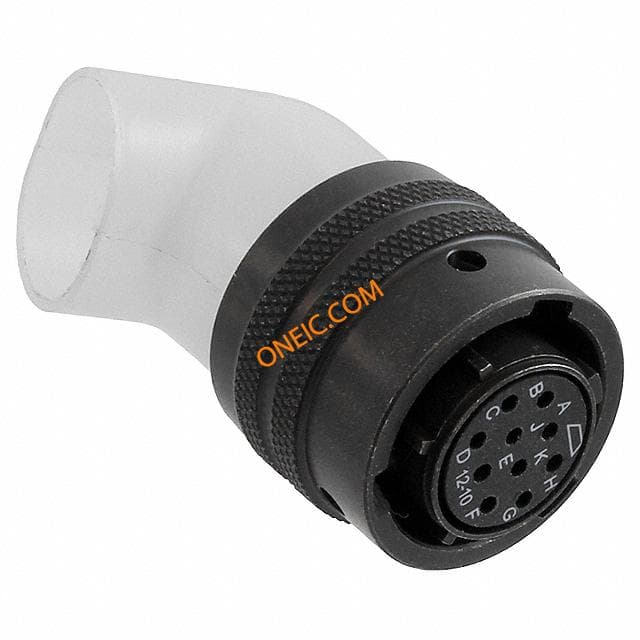

PT08P-12-10S
