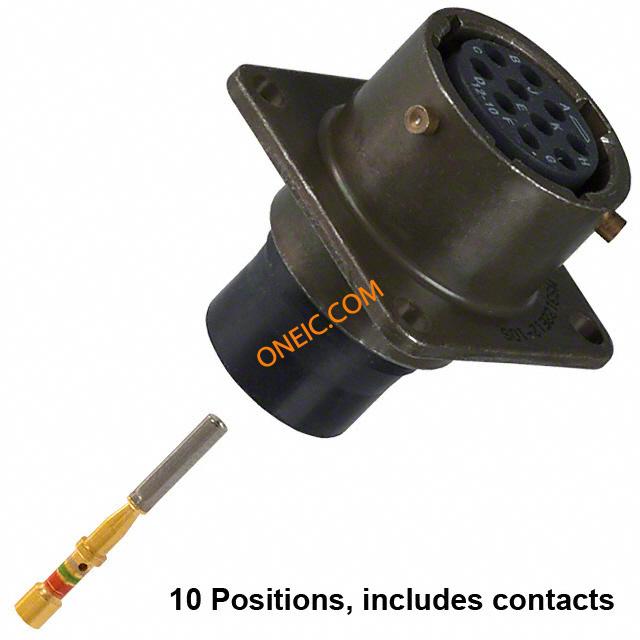

MS3122E12-10S
| Manufacturer | |
| Description | Conn MIL-C-26482 Circular SKT 10 POS Crimp ST Box Mount 10 Terminal 1 Port MIL-C-26482 Series 1 Connector, Crimp Contacts CONN RECEPT 10POS W/SOCKET CRIMP Circular MIL Spec Connector BOX MNT RECPT RECEPT, PANEL, SIZE 12, 10WAY, SKT CONNECTOR, MILSPEC BOX MOUNTING RECEPTACLE, CLASS E, SIZE 12, 10#20 CRIMP SOCKET CON |
| Category |
Business
| Product Category | Circular MIL Spec Connector | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL Type | MIL-DTL-26482 |
| Tariff No | 85369010 | Approval Agency | :MIL Spec |
Electrical
| Voltage Rating | 600VAC | Current Rating (Max) | 7.5A |
Mechanical
| Weight | 0.018 | Packaging | Bulk |
| Shell Size | 12 | Wire Gauge | 20-24 |
| Orientation | N (Normal) | Shell Style | box mount receptacle |
| Termination | Crimp | Weight (g): | 9.12200 |
| Contact Type | socket contacts | Mounting Type | Box Mount |
| Shell Plating | Olive Drab Chromate over Cadmium | Angle of Throw | Straight |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Housing Finish | Olive Drab Cadmium |
| Mounting Style | Panel | Package / Case | Metal |
| Shell Material | Aluminum Alloy | Connector Usage | Bayonet |
| Insertion Angle | normal (no rotation) position | Material - Body | :Aluminium |
| Contact Material | Copper Alloy | Housing Material | Aluminum |
| Primary Material | 26482 MIL Spec | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Mating Orientation | Bayonet |
| Number of Contacts | Yes | Contact Termination | :Crimp |
| Dielectric Material | Neoprene | Number of Positions | 10 |
| Shell Size - Insert | 12-10 | Mounting Hole Diameter | 0.12 " |
| Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated | Contact Layout, Typical | 10#20 |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Type | MIL-C-26482 Circular | Class | E |
| Gender | RCP | Series | MS |
| Features | Rear Insertable/Front Release, 5 Key/Keyway Polarization | Manufacturer | MS Series |
| Product Type | Receptacles | Service Class | environmental resisting connector |
| Application Specifics | True MIL | ||
Environmental
| Ingress Protection | Environment Resistant | Operating Temperature | -55°C ~ 125°C |
Documents & Media
Similar Parts
MS3126E12-10P
amphenol
Conn MIL-C-26482 Circular PIN 10 POS Crimp ST Cable Mount 10 Terminal 1 Port MIL-C-26482 Series 1 Connector, Crimp Contacts CONN PLUG 10POS STRAIGHT W/PINS Circular MIL Spec Connector 10P SIZE 12 STRAIGHT PLUG PIN CONNECTOR, CIRCULAR, SIZE 12, 10WAY
10-101949-012
amphenol
Connector Accessories Flange Gasket 12 Shell Size SEALING GASKET FOR #12 WALL RCPT Circular MIL Spec Tools, Hardware & Accessories MOUNTING FLANGE GASKET connector accessory, mounting flange gasket, for pt and pc receptacles, size 12
MS3116E12-10P
amphenol
Conn Miniature Cylindrical PIN 10 POS Solder ST Cable Mount 10 Terminal 1 Port MIL-C-26482 Series 1 Connector, Solder Contacts CONN PLUG 10POS STRAIGHT W/PINS Circular MIL Spec Connector 10P #20 PIN CONTACTS CONNECTOR, CIRCULAR, SIZE 12, 10WAY

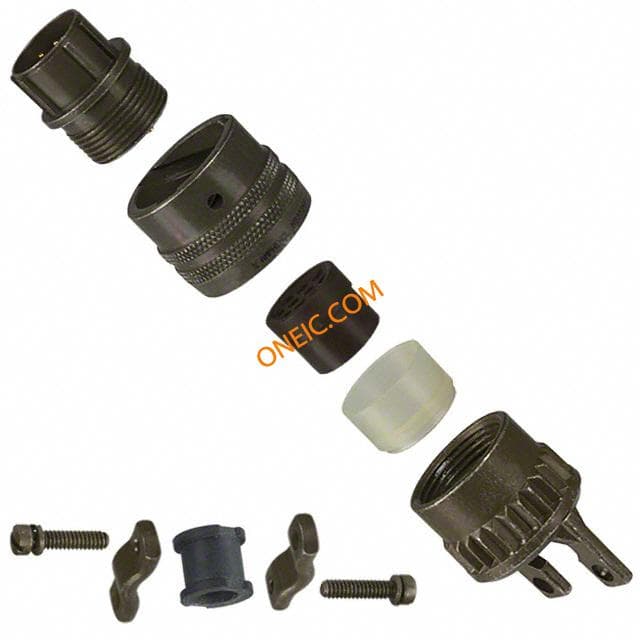

MS3116F-12-10P
Amphenol Industrial Operations
C0NN PLUG 10POS W/PINS SOLDER CONN PLUG 10POS W/PINS SOLDER Cable plug 12-10, MS3116F-12-10P, Amphenol

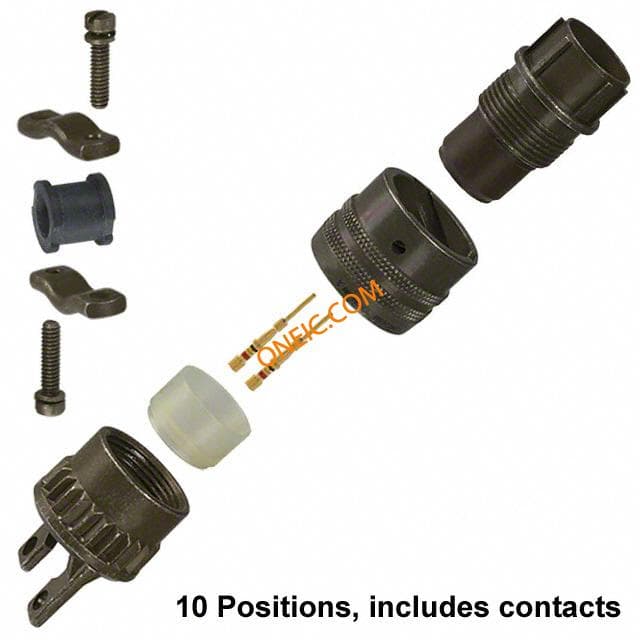

MS3126F-12-10P
