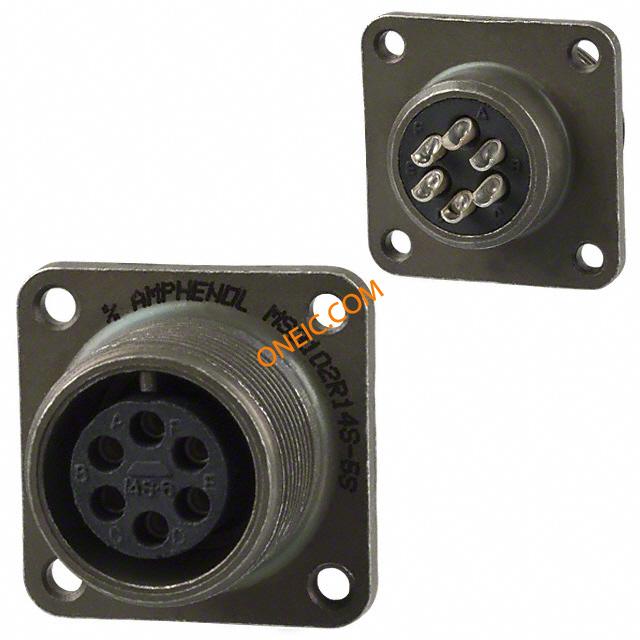

MS3102R14S-6S
| Manufacturer | |
| Description | Conn MIL-DTL-5015 Circular SKT 6 POS Solder Cup ST Box Mount 6 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RECEPT 6POS BOX MNT W/SCKT connector;metal circ;box mount recept;no bkshl;size 14s;6 #16 solder socket cont Circular MIL Spec Connector 6P #16 SKT CONTACTS CIRCULAR, RECEPTACLE, 14S-6, BOX CIRCULAR CONN, RCPT, SIZE 14S, 6POS, BOX CIRCULAR, SIZE 14S, 6WAYS, SKT connector, metal circ, box mount recept, no bkshl, size 14s, 6 #16 solder socket cont |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Circular MIL Spec Connector | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL Type | MIL-DTL-5015 |
| Tariff No | 85369010 | Approval Agency | :MIL-DTL-5015 |
Electrical
| Voltage Rating | 200VAC, 250VDC | Current Rating (Max) | 13 A |
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Shell Size | 14S | Wire Gauge | 16-20 |
| Orientation | N (Normal) | Shell Style | box mount receptacle |
| Termination | Solder Cup | Weight (g): | 20.99800 |
| Contact Size | 16 | Contact Type | socket contacts |
| Mounting Type | Box Mount | Shell Plating | Olive Drab Chromate over Cadmium |
| Angle of Throw | Straight | Connector Type | MIL-DTL-5015 Connector |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Olive Drab Cadmium | Mounting Style | Panel |
| Package / Case | Metal | Shell Material | Aluminum Alloy |
| Connector Usage | Threaded | Insertion Angle | 14S-6 |
| Material - Body | :Aluminium | Contact Material | :Copper |
| Housing Material | Aluminum Alloy | Primary Material | 5015 MIL Spec |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Number of Contacts | Yes | Contact Termination | :Solder |
| Dielectric Material | Neoprene | Number of Positions | 6 |
| Shell Size - Insert | 14S-6 | Mounting Hole Diameter | 0.12 " |
| Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated | Contact Layout, Typical | 6#16 |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Type | MIL-DTL-5015 Circular | Class | R |
| Gender | RCP | Series | MS |
| Features | Environmental Resistant, Single Key/Keyway Shell Polarization | Manufacturer | MS Series |
| Product Type | Receptacles | Service Class | lightweight environmental resisting |
| Application Specifics | True MIL | ||
Environmental
| Ingress Protection | Environment Resistant | Operating Temperature | -55°C ~ 125°C |
