点击放大查看
D38999/26WD35PB
| Manufacturer | |
| Description | Conn MIL-DTL-38999 Circular PIN 37 POS Crimp ST Cable Mount 37 Terminal 1 Port Circular MIL Spec Connector 37P SIZE 15 CABLE MOUNT PIN MIL-DTL-38999 Series III Circular Connector CONN PLUG 37POS STRAIGHT W/PINS CONNECTOR, CIRC, 15-35, 37WAY, SIZE 15 |
| Category |
Business
| Part # Aliases | 88-552044-35I | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL Type | MIL-DTL-38999 III |
| Tariff No | 85369010 | Approval Agency | :MIL-DTL-38999 Series III |
Electrical
| Voltage Rating | 400VAC, 550VDC | Current Rating (Max) | 5A |
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Shell Size | 15 | Orientation | B |
| Shell Style | straight plug | Termination | Crimp |
| Weight (g): | 14.09483 | Contact Type | pin contacts |
| Mounting Type | Cable Mount | Shell Plating | Olive Drab Chromate over Cadmium |
| Connector Type | MIL-DTL-38999 Series III Connector | Contact Finish | Gold |
| Fastening Type | Threaded | Mounting Style | Wire |
| Shell Material | Aluminum | Insertion Angle | 15-35 |
| Material - Body | :Aluminium | Shell Size, MIL | D |
| Contact Material | Copper Alloy | Termination Style | Crimp |
| 1st Contact Gender | Pin (Male) | Mating Orientation | Self Locking |
| Number of Contacts | Yes | Contact Termination | :Crimp |
| Number of Positions | 37 | Shell Size - Insert | 15-35 |
| Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated | Contact Finish Thickness | 50µin (1.27µm) |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | MIL-DTL-38999 Circular | Gender | PL |
| Series | TV | Features | Shielded |
| Product Type | Plugs | Service Class | olive drab cadmium plate aluminum, 500 hour salt spray, EMI -50dB @ 10GHz, 175°C |
Environmental
| Ingress Protection | Environment Resistant | Operating Temperature | 175°C |
Documents & Media
Similar Parts

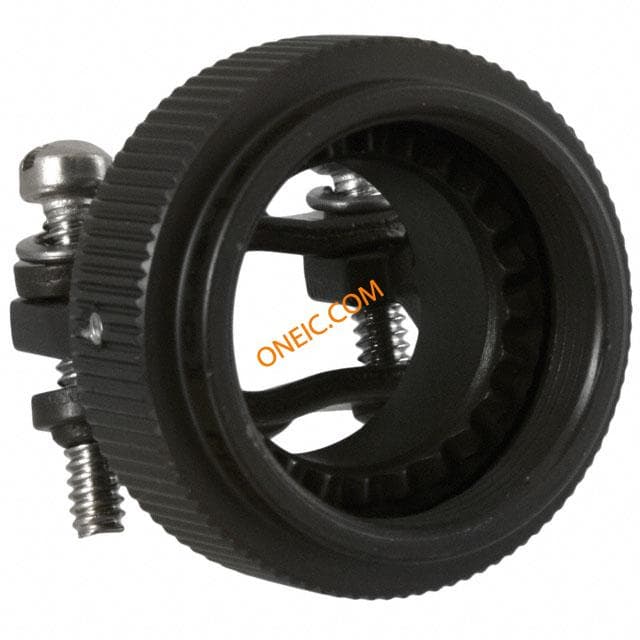

A8504938S15W
Amphenol PCD
Circular MIL Spec Strain Reliefs & Adapters Backshell, SR, Strt, SL, OD Cad, Size 15 STRAIN RELIEF STR SL SHELL SZ 15
D38999/20WD35SB
amphenol
Conn MIL-DTL-38999 Circular SKT 37 POS Crimp ST Wall Mount 37 Terminal 1 Port CONN RCPT 37POS WALL MNT W/SCKT Circular MIL Spec Connector 37P FM SZ 15 SKT WL MNT CONNECTOR, CIRCULAR, SIZE 15, 37WAY
D38999/24WD35SB
amphenol
Conn MIL-DTL-38999 Circular SKT 37 POS Crimp ST Jam Nut 37 Terminal 1 Port MIL-DTL-38999 Series III Circular Connector CONN RCPT 37POS JAM NUT W/SCKT Circular MIL Spec Connector 37P FM SZ 15 SKT PNL MNT CONNECTOR, CIRCULAR, SIZE 15, 37WAY

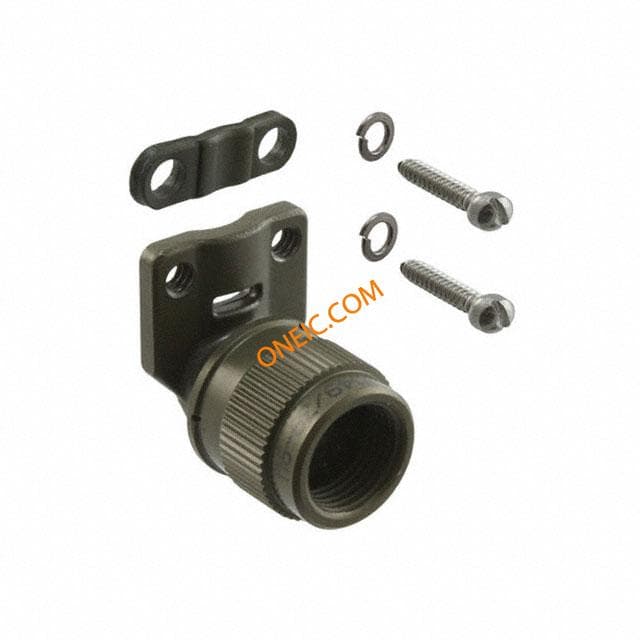

A8504939S15W
Amphenol PCD
Circular MIL Spec Strain Reliefs & Adapters Backshell, SR, 90deg, SL, OD Cad, Size 15 STRAIN RELIEF 90 DEG SHELL SZ 15

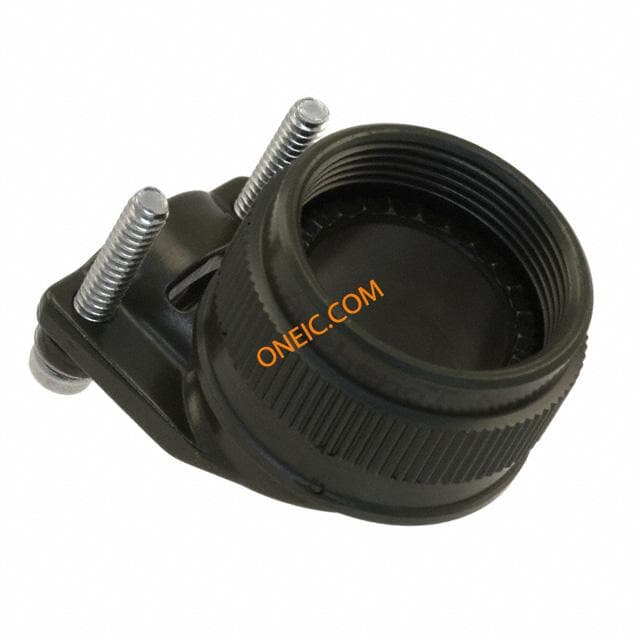

A850493915W
Amphenol PCD
Circular MIL Spec Strain Reliefs & Adapters Backshell, SR, 90deg, OD Cad, Size 15 STRAIN RELIEF 90 DEG SHELL SZ 15

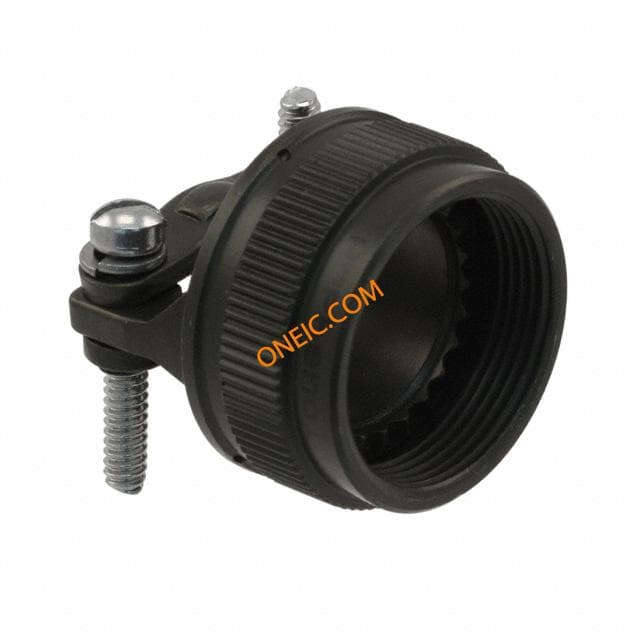

A850493815W
