D38999/26WB35PC
| Manufacturer | |
| Description | Conn MIL-DTL-38999 Circular PIN 13 POS Crimp ST Cable Mount 13 Terminal 1 Port MIL-DTL-38999 Series III Circular Connector CONN PLUG 13POS STRAIGHT W/PINS Circular MIL Spec Connector 13P PLG SZ 11 PIN CBL MNT CONNECTOR, CIRC, 11-35, 13WAY, SIZE 11 |
| Category |
Business
| Part # Aliases | 88-552042-35K | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL Type | MIL-DTL-38999 III |
| Tariff No | 85369010 | Approval Agency | :MIL-DTL-38999 Series III |
Electrical
| Voltage Rating | 400VAC, 550VDC | Current Rating (Max) | 5A |
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Shell Size | 11 | Orientation | C |
| Shell Style | straight plug | Termination | Crimp |
| Weight (g): | 18.30200 | Contact Type | pin contacts |
| Mounting Type | Cable Mount | Shell Plating | Olive Drab Chromate over Cadmium |
| Connector Type | MIL-DTL-38999 Series III Connector | Contact Finish | Gold |
| Fastening Type | Threaded | Mounting Style | Wire |
| Shell Material | Aluminum | Insertion Angle | 11-35 |
| Material - Body | :Aluminium | Shell Size, MIL | B |
| Contact Material | Copper Alloy | Termination Style | Crimp |
| 1st Contact Gender | Pin (Male) | Mating Orientation | Self Locking |
| Number of Contacts | Yes | Contact Termination | :Crimp |
| Number of Positions | 13 | Shell Size - Insert | 11-35 |
| Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated | Contact Finish Thickness | 50µin (1.27µm) |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | MIL-DTL-38999 Circular | Gender | PL |
| Series | TV | Features | Shielded |
| Product Type | Plugs | Service Class | olive drab cadmium plate aluminum, 500 hour salt spray, EMI -50dB @ 10GHz, 175°C |
Environmental
| Ingress Protection | Environment Resistant | Operating Temperature | 175°C |
Documents & Media
Similar Parts
D38999/20WB35SC
amphenol
Conn MIL-DTL-38999 Circular SKT 13 POS Crimp ST Wall Mount 13 Terminal 1 Port CONN RCPT 13POS WALL MNT W/SCKT Circular MIL Spec Connector 13P RCPT SZ 11 SKT WL MNT CIRCULAR, SIZE 11, 13WAY, SKT
D38999/24WB35SC
amphenol
Conn MIL-DTL-38999 Circular SKT 13 POS Crimp ST Jam Nut 13 Terminal 1 Port MIL-DTL-38999 Series III Circular Connector CONN RCPT 13POS JAM NUT W/SCKT Circular MIL Spec Connector 13P SZ 11 RCPT PNL MNT SKT CONNECTOR, CIRC, 11-35, 13WAY, SIZE 11

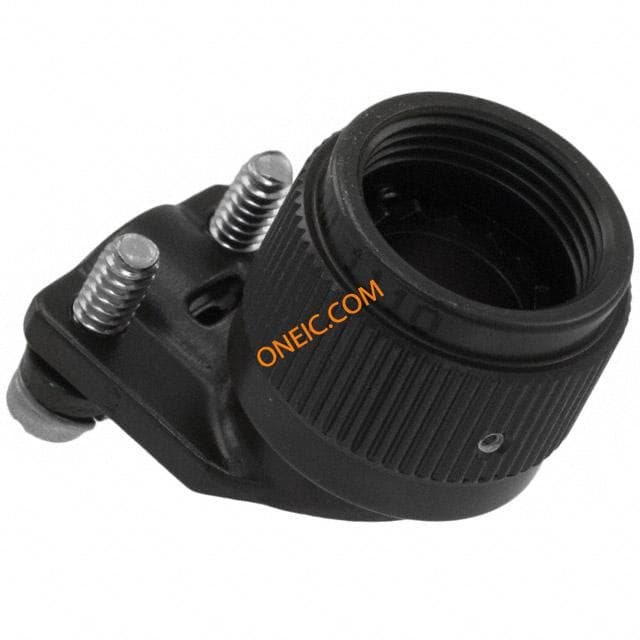

A8504939S11W
Amphenol PCD
サーキュラーミル 仕様張力緩和およびアダプター Backshell, SR, 90deg, SL, OD Cad, Size 11 STRAIN REL 90 DEG SL SHELL SZ 11

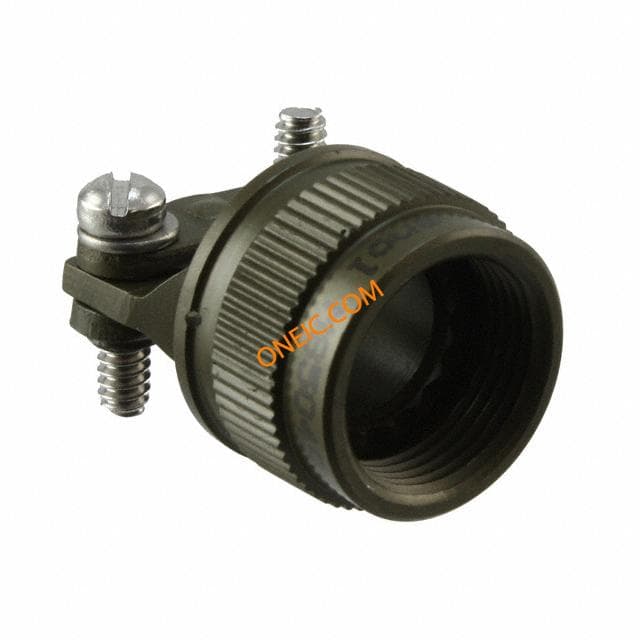

A850493811W
Amphenol PCD
Circular MIL Spec Strain Reliefs & Adapters Backshell, SR, Strt, OD Cad, Size 11 STRAIN RELIEF STRGHT SHELL SZ 11

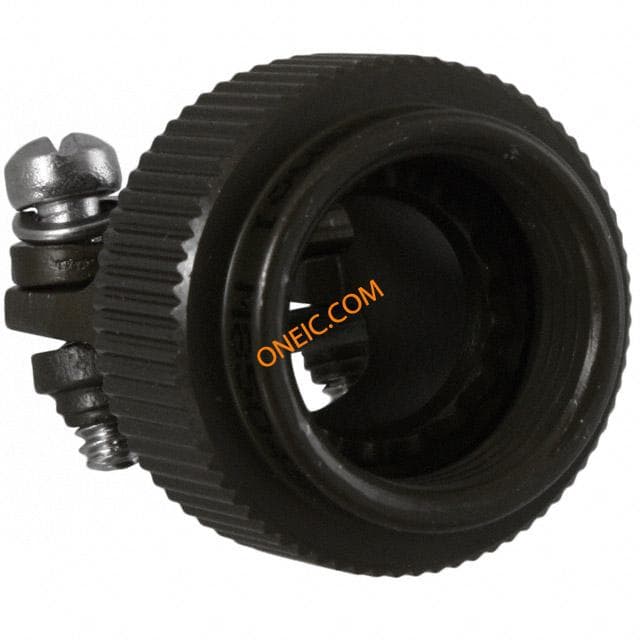

A8504938S11W
Amphenol PCD
Circular MIL Spec Strain Reliefs & Adapters Backshell, SR, Strt, SL, OD Cad, Size 11 STRAIN RELIEF STR SL SHELL SZ 11

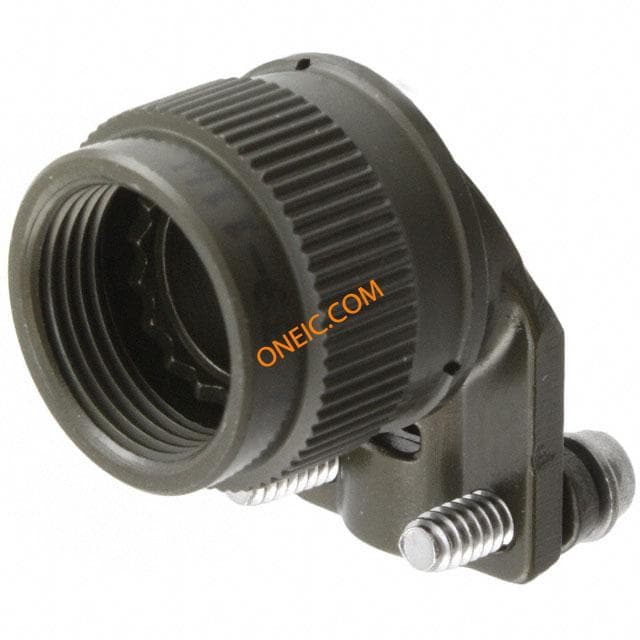

A850493911W
