D38999/26MH53SN
| Manufacturer | |
| Description | Conn MIL-DTL-38999 Circular SKT 53 POS Crimp ST Cable Mount 53 Terminal 1 Port MIL-DTL-38999 Series III Circular Connector CONN PLUG 53POS STRAIGHT W/SCKT Circular MIL Spec Connector 53P Size 26 Straight Plug Socket CIRCULAR, SIZE 23, 53WAY, SKT Circular Connector, 53P Size 26 Socket |
| Category |
Business
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL Type | MIL-DTL-38999 III |
| Tariff No | 85369010 | Approval Agency | :MIL-DTL-38999 Series III |
Electrical
| Insertion Loss | Normal | Voltage Rating | 600VAC, 850VDC |
| Current Rating (Max) | 7.5A | Voltage - Supply (Min) | 1800 |
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Shielding | Yes | Shell Size | 23 |
| Wire Gauge | 24,22,20 | Orientation | N (Normal) |
| Shell Style | straight plug | Termination | Crimp |
| Contact Size | 53#20 | Contact Type | 500 cycle socket contacts |
| Housing Color | Silver | Mounting Type | Cable Mount |
| Shell Plating | Electroless Nickel | Connector Type | MIL-DTL-38999 Series III Connector |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Wire | Shell Material | Aluminum |
| Connector Style | Plug | Insert Material | Hard Dielectric |
| Insertion Angle | 23-53 | Material - Body | :Aluminium |
| Shell Size, MIL | H | Contact Material | Copper Alloy |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Self Locking | Number of Contacts | Yes |
| Contact Termination | :Crimp | Number of Positions | 53 |
| Shell Size - Insert | 23-53 | Bushing, Grommet Type | Silicone |
| Shell Material, Finish | Electroless Nickel | Contact Finish Thickness | 50µin (1.27µm) |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | MIL-DTL-38999 Circular | Gender | PL |
| Series | TV | Product Type | Plugs |
| Service Class | electroless nickel plate (200°C), 2000 hrs. dynamic salt spray | Specifications | MIL-DTL-38999 |
Environmental
| Ratings | I | Mechanical Life | 500 |
| Ingress Protection | Environment Resistant | Operating Temperature | 200°C |
Documents & Media
Similar Parts
A850493823N
Amphenol PCD

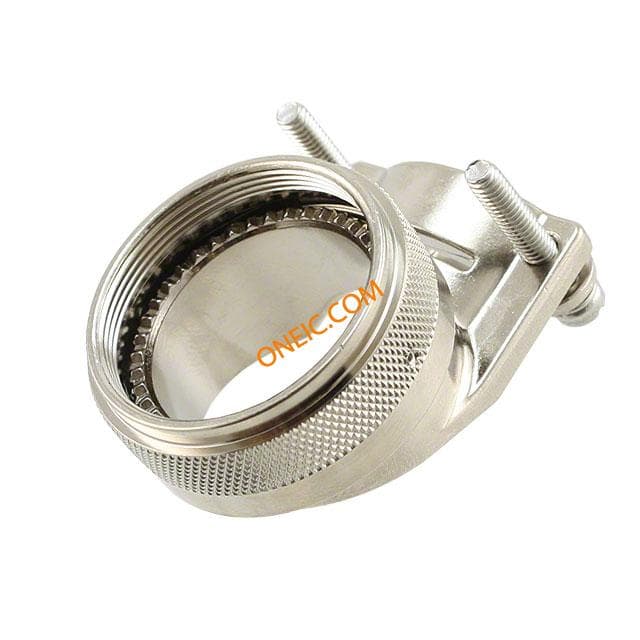

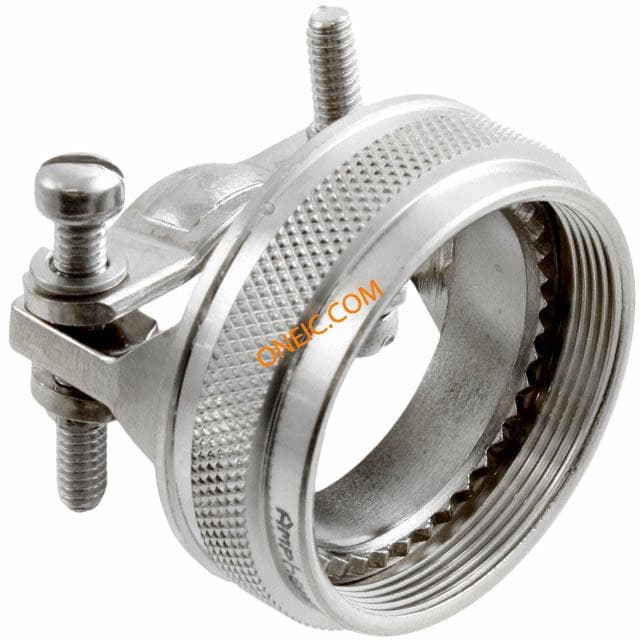

Circular MIL Spec Strain Reliefs & Adapters Backshell, SR, Strt, Nickel, Size 23 STRAIN RELIEF STRGHT SHELL SZ 23
A8504939S23N
Amphenol PCD

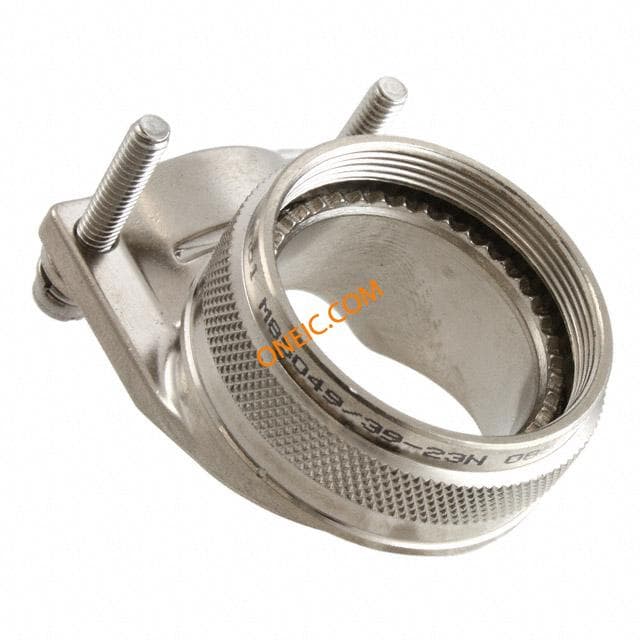

Circular MIL Spec Strain Reliefs & Adapters Backshell, SR, 90deg, SL, Nickel, Size 23 STRAIN REL 90 DEG SL SHELL SZ 23
D38999/20MH53PN
amphenol
Conn MIL-DTL-38999 Circular PIN 53 POS Crimp ST Wall Mount 53 Terminal 1 Port CONN RCPT 53POS WALL MNT W/PINS Circular MIL Spec Connector 53P WL mnt pin sz 23 CONNECTOR, CIRCULAR, SIZE 23, 53WAY
D38999/24MH53PN
amphenol
Conn MIL-DTL-38999 Circular PIN 53 POS Crimp ST Jam Nut 53 Terminal 1 Port MIL-DTL-38999 Series III Circular Connector CONN RCPT 53POS JAM NUT W/PINS Circular MIL Spec Connector 53P JAM NUT PIN SZ 23 CIRCULAR, SIZE 23, 53WAY, PIN
D38999/20MH53HN
amphenol
Conn MIL-DTL-38999 Circular PIN 53 POS Crimp ST Wall Mount 53 Terminal 1 Port CONN RCPT 53POS WALL MNT W/PINS Circular MIL Spec Connector 53P PIN CRIMP WM Rcpt w/seal CIRCULAR, SIZE 23, 53WAY, PIN
A850493923N
Amphenol PCD
サーキュラーミル 仕様張力緩和およびアダプター Backshell, SR, 90deg, Nickel, Size 23 STRAIN RELIEF 90 DEG SHELL SZ 23
A8504938S23N
Amphenol PCD

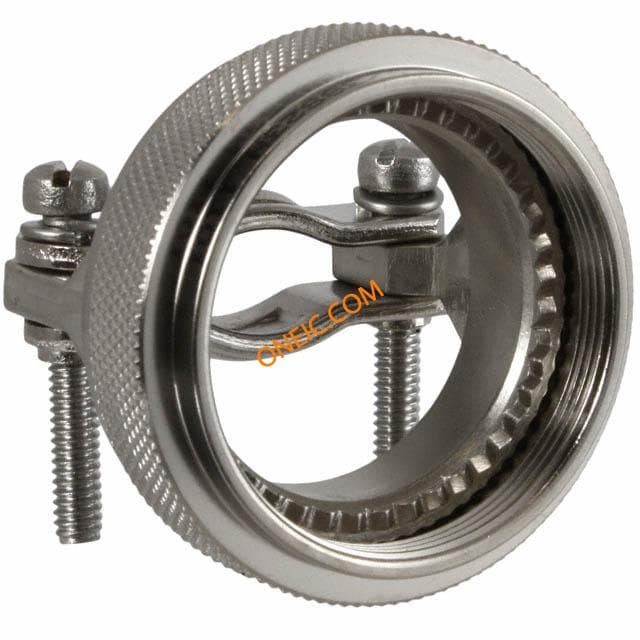

サーキュラーミル 仕様張力緩和およびアダプター Backshell, SR, Strt, SL, Nickel, Size 23 STRAIN RELIEF STR SL SHELL SZ 23
