D38999/26MD19SB
| Manufacturer | |
| Description | Conn MIL-DTL-38999 Circular SKT 19 POS Crimp ST Cable Mount 19 Terminal 1 Port Circular MIL Spec Connector 19P STRAIGHT PLUG SOCKET MIL-DTL-38999 Series III Circular Connector CONN PLUG 19POS STRAIGHT W/SCKT CIRCULAR, SIZE 15, 19WAY, SKT |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | In Transition | MIL Type | MIL-DTL-38999 III |
| Tariff No | 85369010 | Approval Agency | :MIL-DTL-38999 Series III |
Electrical
| Insertion Loss | B | Voltage Rating | 600VAC, 850VDC |
| Current Rating (Max) | 7.5 A | Voltage - Supply (Min) | 1800 |
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Shielding | Yes | Shell Size | 15 |
| Wire Gauge | 24,22,20 | Orientation | B |
| Shell Style | In-Line | Termination | Crimp |
| Contact Size | 19#20 | Contact Type | 500 cycle socket contacts |
| Housing Color | Silver | Mounting Type | Cable Mount |
| Shell Plating | Electroless Nickel | Connector Type | MIL-DTL-38999 Series III Connector |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Wire | Shell Material | Aluminum |
| Connector Style | Plug | Insert Material | Hard Dielectric |
| Insertion Angle | 15-19 | Material - Body | :Aluminium |
| Shell Size, MIL | D | Contact Material | Copper Alloy |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Self Locking | Number of Contacts | 19 |
| Contact Termination | :Crimp | Number of Positions | 19 |
| Shell Size - Insert | 15-19 | Bushing, Grommet Type | Silicone |
| Shell Material, Finish | Electroless Nickel | Contact Finish Thickness | 50µin (1.27µm) |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | MIL-DTL-38999 Circular | Gender | PL |
| Series | TV | Product Type | Plugs |
| Service Class | electroless nickel plate (200°C), 2000 hrs. dynamic salt spray | Specifications | MIL-DTL-38999 |
Environmental
| Ratings | I | Mechanical Life | 500 |
| Ingress Protection | Environment Resistant | Operating Temperature | 200°C |
Documents & Media
PDF Document
PDF Document
Similar Parts

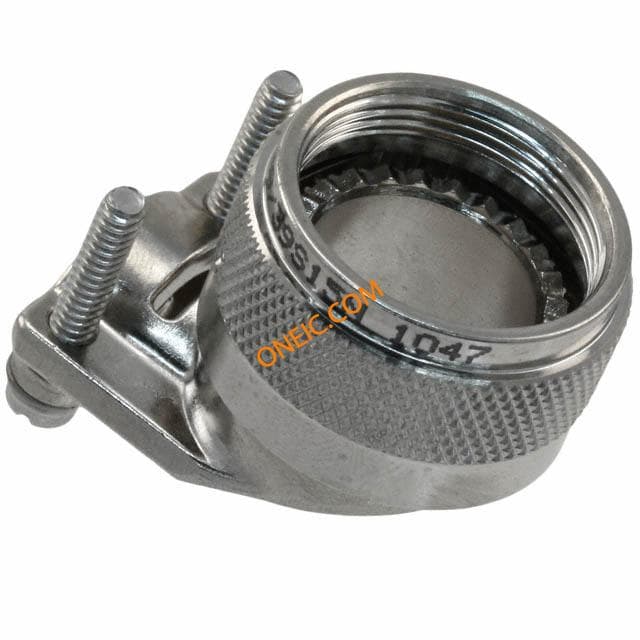

A8504939S15N
Amphenol PCD
Circular MIL Spec Strain Reliefs & Adapters Backshell, SR, 90deg, SL, Nickel, Size 15 STRAIN RELIEF 90 DEG SHELL SZ 15
$79.4716
Details
A850493915N
Amphenol PCD
サーキュラーミル 仕様張力緩和およびアダプター Backshell, SR, 90deg, Nickel, Size 15 STRAIN RELIEF 90 DEG SHELL SZ 15
$96.2524
Details
615726
Astro Tool
CRIMP POSITIONER M22520/2-10
$429.6240
Details

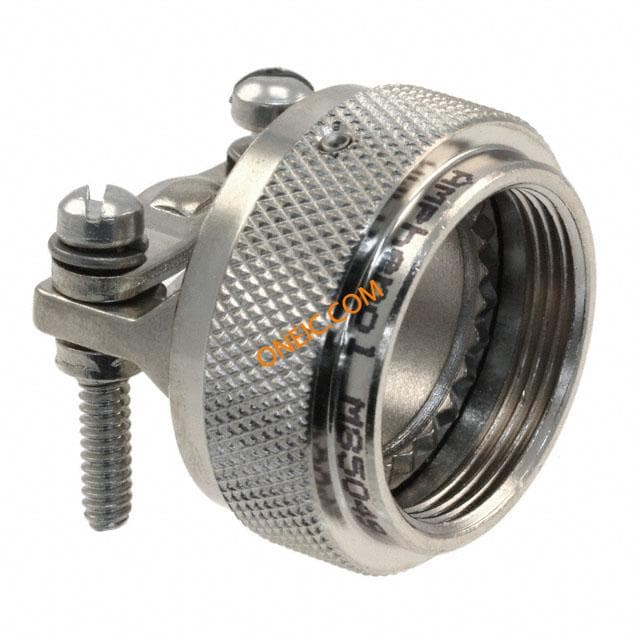

A8504938S15N
Amphenol PCD
STRAIN RELIEF STR SL SHELL SZ 15
$60.6424
Details

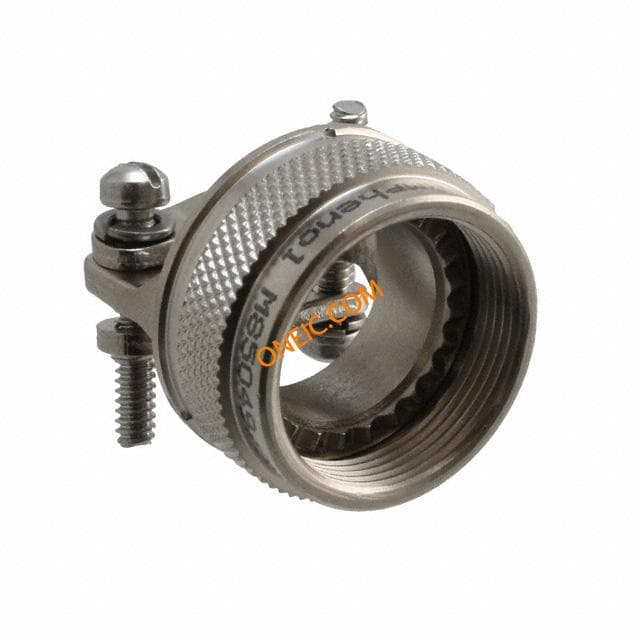

A850493815N
