D38999/26JJ35PA
| Manufacturer | |
| Description | Conn MIL-DTL-38999 Circular PIN 128 POS Crimp ST Cable Mount 128 Terminal 1 Port MIL-DTL-38999 Series III Circular Connector CONN PLUG 128POS STRAIGHT W/PINS Circular MIL Spec Connector 128P ST PLUG SZ 25 CONNECTOR, CIRCULAR, SIZE 25, 128WAY |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | EU RoHS | Not Compliant |
| MIL Type | MIL-DTL-38999 III | Tariff No | 85369010 |
| Approval Agency | :MIL-DTL-38999 Series III | ||
Electrical
| Insertion Loss | A | Voltage Rating | 400VAC, 550VDC |
| Current Rating (Max) | 5A | Voltage - Supply (Min) | 1300 |
Mechanical
| Weight | 0.001 | Diameter | 48 |
| Packaging | Bulk | Shielding | Yes |
| Cable Exit | No | Shell Size | 25 |
| Wire Gauge | 28,26,24,22 | Orientation | A |
| Shell Style | straight plug | Termination | Crimp |
| Contact Size | 128#22D | Contact Type | 128Signal |
| Housing Color | Olive Drab | Mounting Type | Cable Mount |
| Shell Plating | Cadmium Over Nickel | Connector Type | MIL-DTL-38999 Series III Connector |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Wire | Package / Case | :Straight Plug |
| Shell Material | Aluminum | Connector Style | Plug |
| Insert Material | Hard Dielectric | Insertion Angle | 25-35 |
| Material - Body | :Composite | Shell Size, MIL | J |
| Contact Material | Copper Alloy | Length - Overall | 31.34 |
| Termination Style | Crimp | 1st Contact Gender | PIN |
| Mating Orientation | Self Locking | Number of Contacts | 128 |
| Contact Termination | :Crimp | Number of Positions | 128 |
| Shell Size - Insert | 25-35 | Bushing, Grommet Type | Silicone |
| Shell Material, Finish | Olive Drab Cadmium Plated | Contact Finish Thickness | 50µin (1.27µm) |
| 1st Connector Mounting Type | :Cable | Shell Size - Insert (Convert To) | 25-35 |
Product Info
| Type | MIL-DTL-38999 Circular | Gender | PL |
| Series | TV | Product Type | Plugs |
| Service Class | olive drab cadmium plate (175°C), 2000 hours dynamic salt spray | Specifications | MIL-DTL-38999 |
Environmental
| Ratings | M | Mechanical Life | 500 |
| Ingress Protection | Environment Resistant | Operating Temperature | 175°C |
Documents & Media
Similar Parts
D38999/20JJ35SA
Amphenol Corporation
. D38999/20JJ35SA - 128 Position Circular Connector Receptacle, Female Sockets Crimp from Amphenol Aerospace Operations. from now!
D38999/24JJ35JA
amphenol
Conn MIL-DTL-38999 Circular SKT 128 POS Crimp ST Jam Nut 128 Terminal 1 Port MIL-DTL-38999 Series III Circular Connector CONN RCPT 128POS JAM NUT W/SCKT
D38999/24JJ35SA
amphenol
Conn MIL-DTL-38999 Circular SKT 128 POS Crimp ST Jam Nut 128 Terminal 1 Port MIL-DTL-38999 Series III Circular Connector CONN RCPT 128POS JAM NUT W/SCKT Circular MIL Spec Connector 128P SZ 25 RCPT PNL MNT SKT

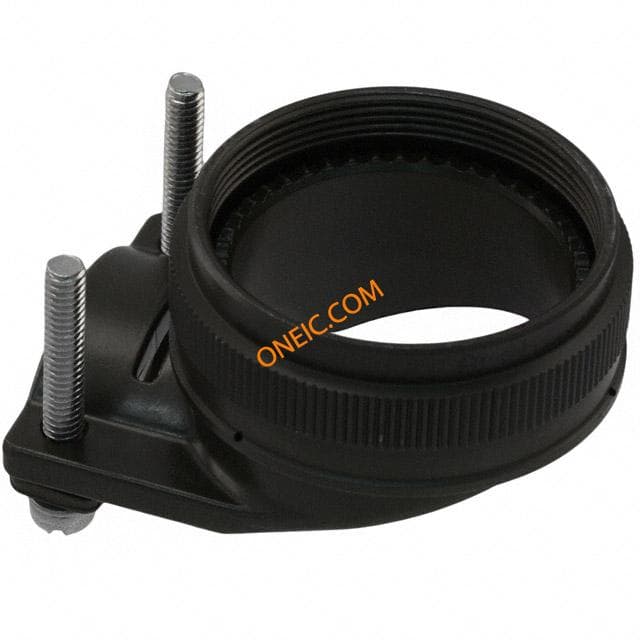

A850493925W
Amphenol PCD
Circular MIL Spec Strain Reliefs & Adapters Backshell, SR, 90deg, OD Cad, Size 25 STRAIN RELIEF 90 DEG SHELL SZ 25

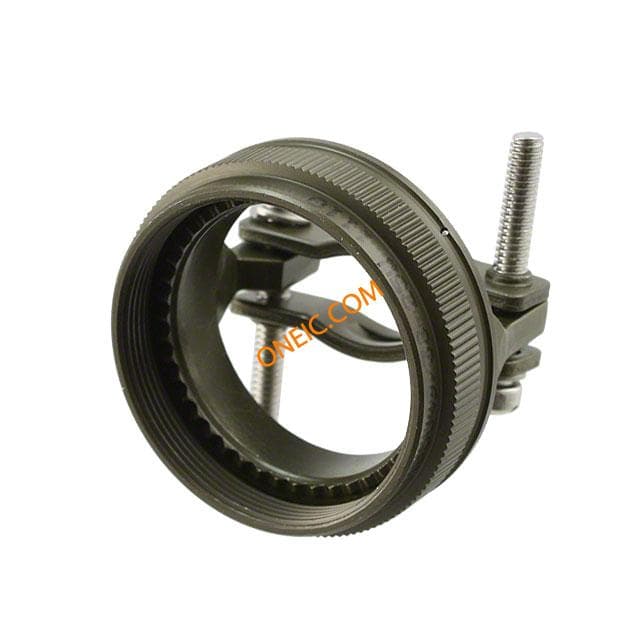

A850493825W
Amphenol PCD
Circular MIL Spec Strain Reliefs & Adapters Backshell, SR, Strt, OD Cad, Size 25 STRAIN RELIEF STRGHT SHELL SZ 25

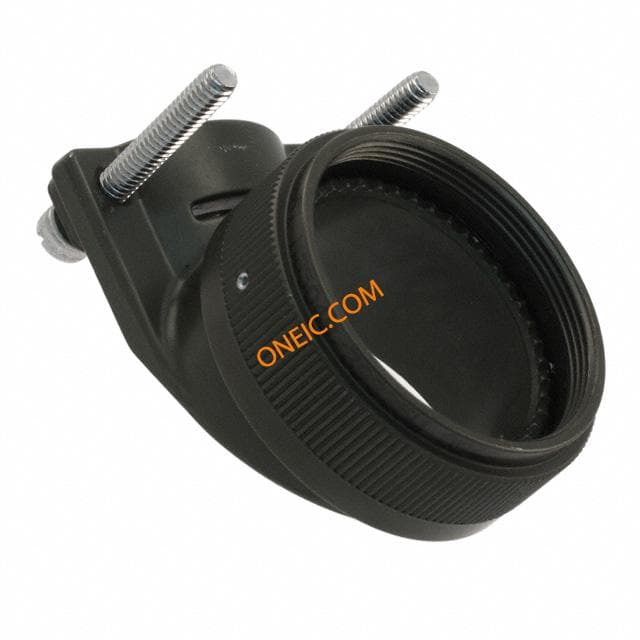

A8504939S25W
Amphenol PCD
サーキュラーミル 仕様張力緩和およびアダプター Backshell, SR, 90deg, SL, OD Cad, Size 25 STRAIN RELIEF 90 DEG SHELL SZ 25
D38999/20JJ35JA
Amphenol Industrial Operations
CONN RCPT 128POS WALL MNT W/SCKT Circular MIL Spec Connector 128P Size 20 Wall Mount Recept Socket CONNECTOR, CIRCULAR, 128WAY, SIZE 25

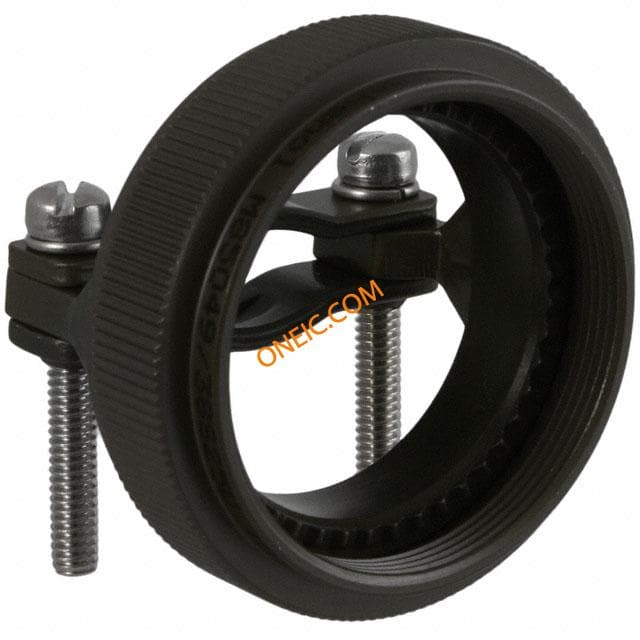

A8504938S25W
