D38999/26JD35PB
| Manufacturer | |
| Description | Conn MIL-DTL-38999 Circular PIN 37 POS Crimp ST Cable Mount 37 Terminal 1 Port MIL-DTL-38999 Series III Circular Connector CONN PLUG 37POS STRAIGHT W/PINS Circular MIL Spec Connector 37P SZ 15 PLUG CBL MNT PIN CONNECTOR, CIRC, 15-35, 37WAY, SIZE 15 |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL Type | MIL-DTL-38999 III |
| Tariff No | 85369010 | Approval Agency | :MIL-DTL-38999 Series III |
Electrical
| Insertion Loss | B | Voltage Rating | 400VAC, 550VDC |
| Current Rating (Max) | 5A | Voltage - Supply (Min) | 1300 |
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Shielding | Yes | Shell Size | 15 |
| Wire Gauge | 28,26,24,22 | Orientation | B |
| Shell Style | straight plug | Termination | Crimp |
| Contact Size | 37#22D | Contact Type | 500 cycle pin contacts |
| Housing Color | Olive Drab | Mounting Type | Cable Mount |
| Shell Plating | Olive Drab Chromate over Cadmium | Connector Type | MIL-DTL-38999 Series III Connector |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Wire | Shell Material | Aluminum |
| Connector Style | Plug | Insert Material | Hard Dielectric |
| Insertion Angle | 15-35 | Material - Body | :Composite |
| Shell Size, MIL | D | Contact Material | Copper Alloy |
| Termination Style | Crimp | 1st Contact Gender | Pin (Male) |
| Mating Orientation | Self Locking | Number of Contacts | Yes |
| Contact Termination | :Crimp | Number of Positions | 37 |
| Shell Size - Insert | 15-35 | Bushing, Grommet Type | Silicone |
| Shell Material, Finish | Olive Drab Cadmium Plated | Contact Finish Thickness | 50µin (1.27µm) |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | MIL-DTL-38999 Circular | Gender | PL |
| Series | TV | Product Type | Plugs |
| Service Class | olive drab cadmium plate (175°C), 2000 hours dynamic salt spray | Specifications | MIL-DTL-38999 |
Environmental
| Ratings | M | Mechanical Life | 500 |
| Ingress Protection | Environment Resistant | Operating Temperature | 175°C |
Documents & Media
Similar Parts

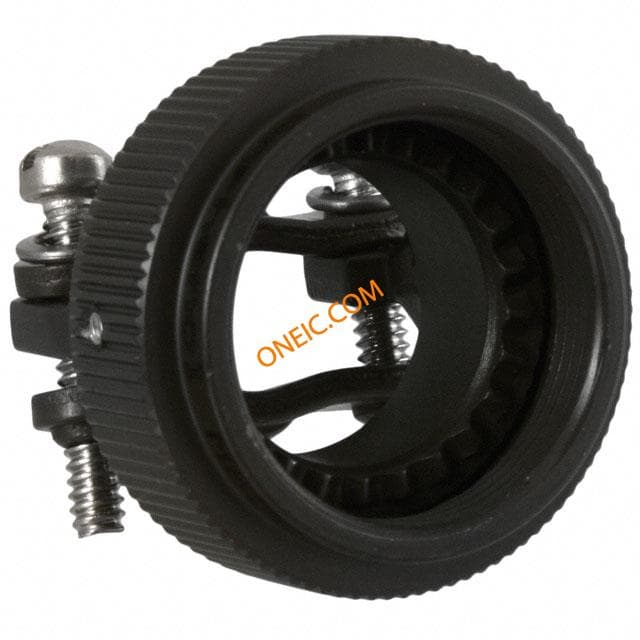

A8504938S15W
