D38999/26JC4JN
| Manufacturer | |
| Description | Conn MIL-DTL-38999 Circular SKT 4 POS Crimp ST Cable Mount 4 Terminal 1 Port Circular MIL Spec Connector 4P ST PLUG SOC SZ 13 MIL-DTL-38999 Series III Circular Connector CONN PLUG 4POS STRAIGHT W/SCKT CONNECTOR, CIRCULAR, 13-4, 4WAY, SIZE 13 |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | No | MIL Type | MIL-DTL-38999 III |
| Tariff No | 85369010 | Approval Agency | :MIL-DTL-38999 Series III |
Electrical
| Insertion Loss | Normal | Voltage Rating | 600VAC, 850VDC |
| Current Rating (Max) | 5 A | Voltage - Supply (Min) | 1800 |
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Shielding | Yes | Shell Size | 13 |
| Wire Gauge | 20,18,16 | Orientation | N (Normal) |
| Shell Style | In-Line | Termination | Crimp |
| Contact Size | 4#16 | Contact Type | 1500 cycle socket contacts |
| Housing Color | Olive Drab | Mounting Type | Cable Mount |
| Shell Plating | Olive Drab Chromate over Cadmium | Connector Type | MIL-DTL-38999 Series III Connector |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Wire | Shell Material | Aluminum |
| Connector Style | Plug | Insert Material | Hard Dielectric |
| Insertion Angle | 13-4 | Material - Body | :Composite |
| Shell Size, MIL | C | Contact Material | Copper Alloy |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Self Locking | Number of Contacts | 4 |
| Contact Termination | :Crimp | Number of Positions | 4 |
| Shell Size - Insert | 13-4 | Bushing, Grommet Type | Silicone |
| Shell Material, Finish | Olive Drab Cadmium Plated | Contact Finish Thickness | 50µin (1.27µm) |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | MIL-DTL-38999 Circular | Gender | PL |
| Series | TV | Product Type | Plugs |
| Service Class | olive drab cadmium plate (175°C), 2000 hours dynamic salt spray | Specifications | MIL-DTL-38999 |
Environmental
| Ratings | I | Mechanical Life | 1500 |
| Ingress Protection | Environment Resistant | Operating Temperature | 175°C |
Documents & Media
Similar Parts
D38999/20JC4PN
amphenol
Conn MIL-DTL-38999 Circular PIN 4 POS Crimp ST Wall Mount 4 Terminal 1 Port CONN RCPT 4POS WALL MNT W/PINS Circular MIL Spec Connector 4P SIZE 13 WALL MOUNT RECEPTACLE PIN CONNECTOR, CIRCULAR, 4WAY, SIZE 13
D38999/24JC4PN
amphenol
Conn MIL-DTL-38999 Circular PIN 4 POS Crimp ST Jam Nut 4 Terminal 1 Port MIL-DTL-38999 Series III Circular Connector CONN RCPT 4POS JAM NUT W/PINS Circular MIL Spec Connector 4P Size 24 Jam Nut Recpt Pin CONNECTOR, CIRCULAR, SIZE 13, 4WAY
D38999/20JC4HN
amphenol
Conn MIL-DTL-38999 Circular PIN 4 POS Crimp ST Wall Mount 4 Terminal 1 Port CONN RCPT 4POS WALL MNT W/PINS Circular MIL Spec Connector 4P Size 20 Wall Mount Recept Pin CONNECTOR, CIRCULAR, 13-4, 4WAY, SIZE 13
A850493913W
Amphenol PCD

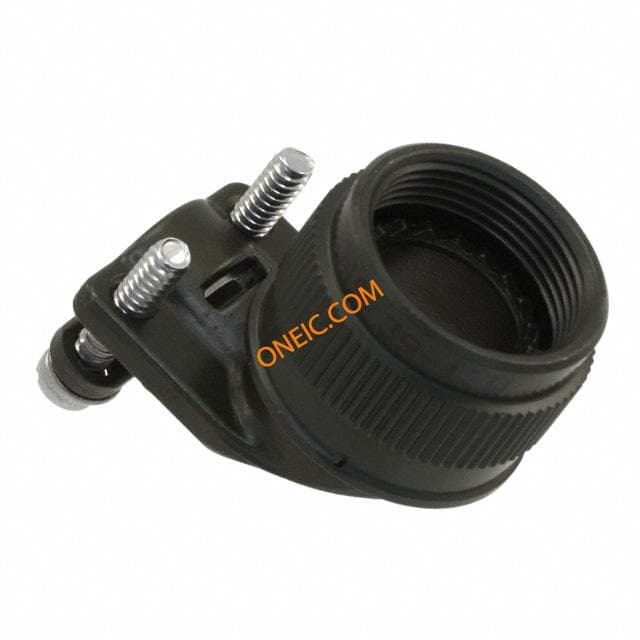

サーキュラーミル 仕様張力緩和およびアダプター Backshell, SR, 90deg, OD Cad, Size 13 STRAIN RELIEF 90 DEG SHELL SZ 13
A8504939S13W
Amphenol PCD

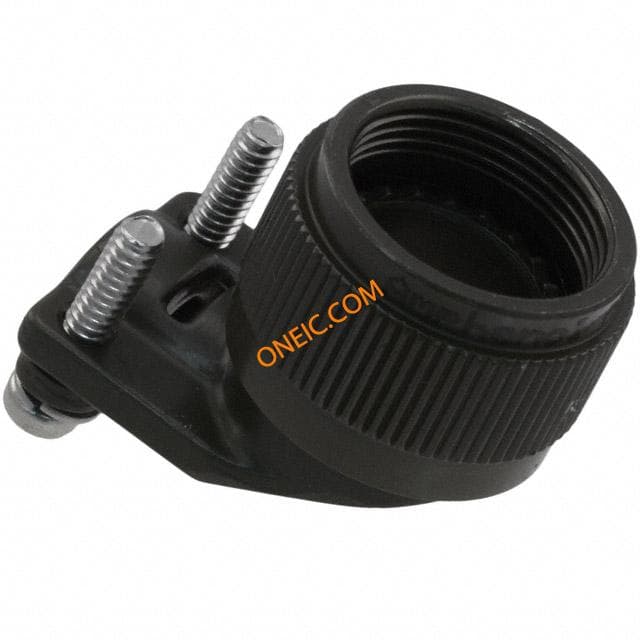

Circular MIL Spec Strain Reliefs & Adapters Backshell, SR, 90deg, SL, OD Cad, Size 13 STRAIN REL 90 DEG SL SHELL SZ 13
A850493813W
Amphenol PCD

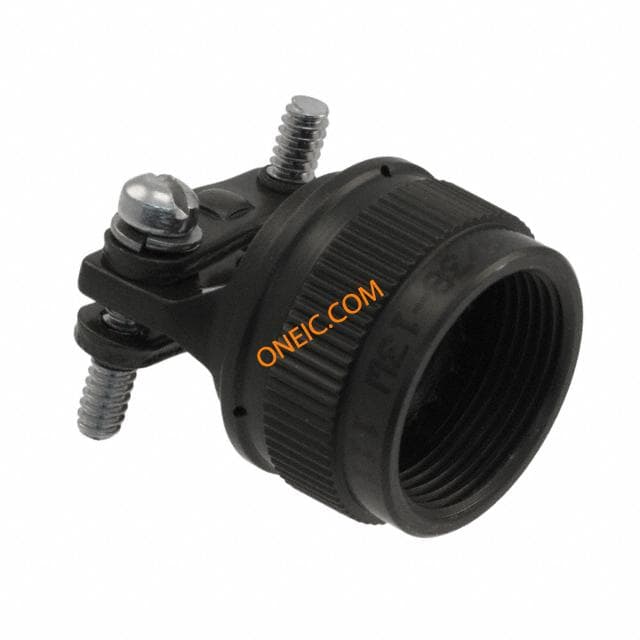

サーキュラーミル 仕様張力緩和およびアダプター Backshell, SR, Strt, OD Cad, Size 13 STRAIN RELIEF STRGHT SHELL SZ 13
