D38999/26FG39SN
| Manufacturer | |
| Description | Conn MIL-DTL-38999 Circular SKT 39 POS Crimp ST Cable Mount 39 Terminal 1 Port MIL-DTL-38999 Series III Circular Connector CONN PLUG 39POS STRAIGHT W/SCKT Circular MIL Spec Connector 39P PLG SZ 21 SKT CBL MNT CONNECTOR, CIRC, 21-39, 39WAY, SIZE 21 |
| Category |
Business
| Part # Aliases | 91-552047-39S | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL Type | MIL-DTL-38999 III |
| Tariff No | 85369010 | Approval Agency | :MIL-DTL-38999 Series III |
Electrical
| Insertion Loss | Normal | Voltage Rating | 600VAC, 850VDC |
| Current Rating (Max) | 7.5A, 13A | Voltage - Supply (Min) | 1800 |
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Shielding | Yes | Shell Size | 21 |
| Wire Gauge | 24,22,20,18,16 | Orientation | N (Normal) |
| Shell Style | straight plug | Termination | Crimp |
| Contact Size | 37#20,2#16 | Contact Type | socket contacts |
| Housing Color | Silver | Mounting Type | Cable Mount |
| Shell Plating | Electroless Nickel | Connector Type | MIL-DTL-38999 Series III Connector |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Wire | Shell Material | Aluminum |
| Connector Style | Plug | Insert Material | Hard Dielectric |
| Insertion Angle | 21-39 | Material - Body | :Aluminium |
| Shell Size, MIL | G | Contact Material | Copper Alloy |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Self Locking | Number of Contacts | Yes |
| Contact Termination | :Crimp | Number of Positions | 39 |
| Shell Size - Insert | 21-39 | Bushing, Grommet Type | Silicone |
| Shell Material, Finish | Aluminum, Nickel Plated, Electroless | Contact Finish Thickness | 50µin (1.27µm) |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | MIL-DTL-38999 Circular | Gender | PL |
| Series | TV | Features | Shielded |
| Product Type | Plugs | Service Class | electroless nickel plated aluminum, EMI -65dB @ 10GHz, 48 hour salt spray, 200°C |
| Specifications | MIL-DTL-38999 | ||
Environmental
| Ratings | I | Mechanical Life | 500 |
| Ingress Protection | Environment Resistant | Operating Temperature | 200°C |
Documents & Media
Similar Parts

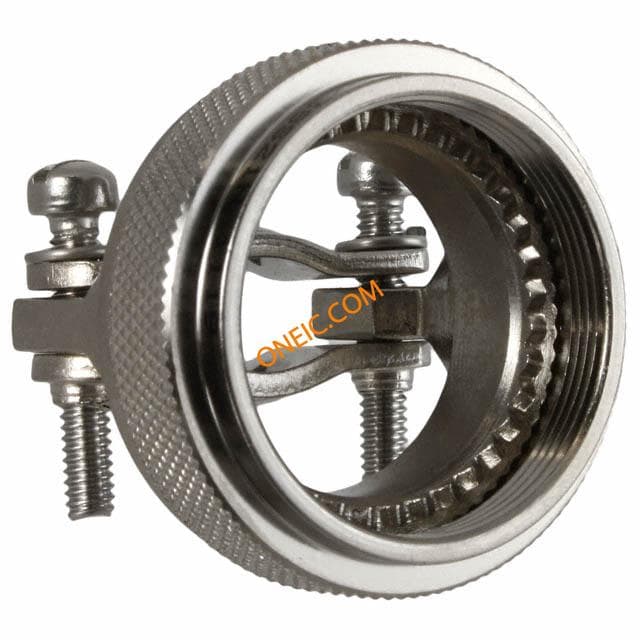

A8504938S21N
Amphenol PCD
Circular MIL Spec Strain Reliefs & Adapters Backshell, SR, Strt, SL, Nickel, Size 21 STRAIN RELIEF STR SL SHELL SZ 21
D38999/20FG39PN
amphenol
Conn MIL-DTL-38999 Circular PIN 39 POS Crimp ST Wall Mount 39 Terminal 1 Port CONN RCPT 39POS WALL MNT W/PINS Circular MIL Spec Connector 39P FM SZ 21 PIN WL MNT CONNECTOR, CIRCULAR, SIZE 21, 39WAY
D38999/24FG39PN
amphenol
Conn MIL-DTL-38999 Circular PIN 39 POS Crimp ST Jam Nut 39 Terminal 1 Port CONN RCPT 39POS JAM NUT W/PINS Circular MIL Spec Connector 39P FM SZ 21 PIN PNL MNT CONNECTOR, CIRCULAR, SIZE 21, 39WAY

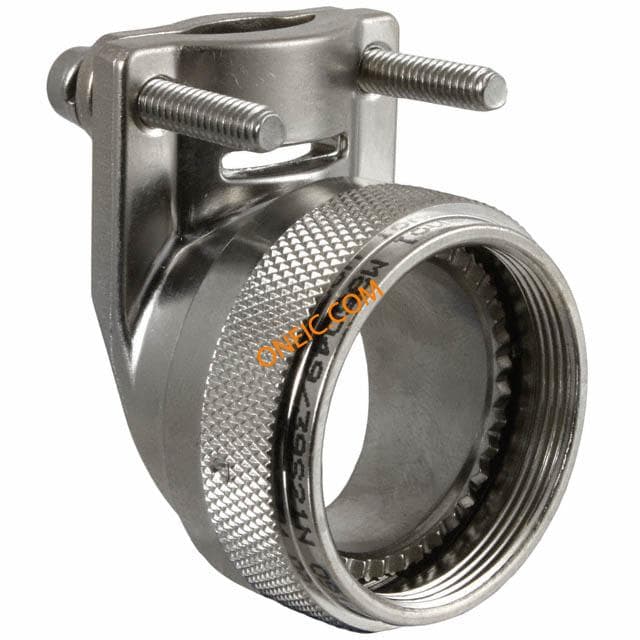

A8504939S21N
Amphenol PCD
サーキュラーミル 仕様張力緩和およびアダプター Backshell, SR, 90deg, SL, Nickel, Size 21 STRAIN RELIEF 90 DEG SHELL SZ 21

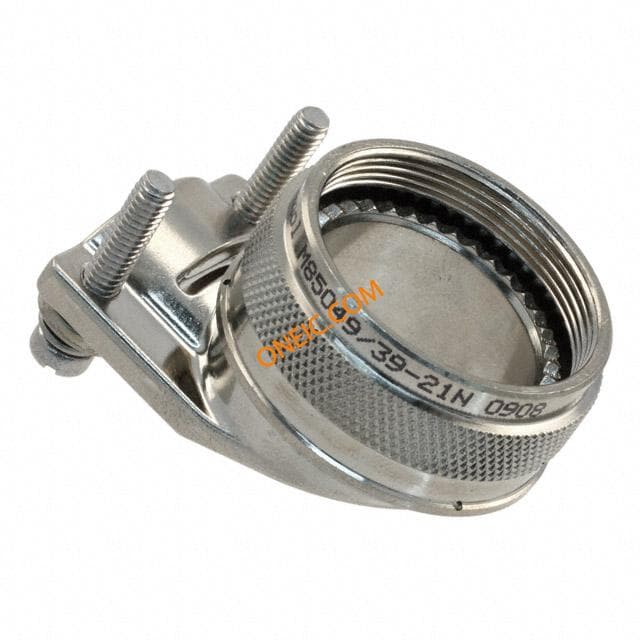

A850493921N
Amphenol PCD
サーキュラーミル 仕様張力緩和およびアダプター Backshell, SR, 90deg, Nickel, Size 21 STRAIN RELIEF 90 DEG SHELL SZ 21
615726
Astro Tool
CRIMP POSITIONER M22520/2-10

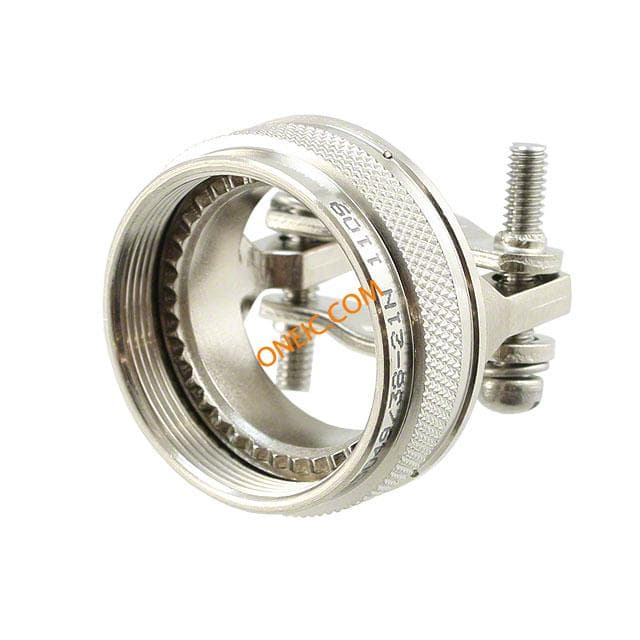

A850493821N
