D38999/26FG11PN
| Manufacturer | |
| Description | Conn MIL-DTL-38999 Circular PIN 11 POS Crimp ST Cable Mount 11 Terminal 1 Port MIL-DTL-38999 Series III Circular Connector CONN PLUG 11POS STRAIGHT W/PINS Circular MIL Spec Connector 11P ST PLUG PIN SZ 21 CONNECTOR, CIRC, 21-11, 11WAY, SIZE 21 |
| Category |
Business
| Part # Aliases | 91-552047-11P | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL Type | MIL-DTL-38999 III |
| Tariff No | 85369010 | Approval Agency | :MIL-DTL-38999 Series III |
Electrical
| Insertion Loss | Normal | Voltage Rating | 600VAC, 850VDC |
| Current Rating (Max) | 23A | Voltage - Supply (Min) | 1800 |
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Shielding | Yes | Shell Size | 21 |
| Wire Gauge | 14,12 | Orientation | N (Normal) |
| Shell Style | straight plug | Termination | Crimp |
| Contact Size | 11#12 | Contact Type | pin contacts |
| Housing Color | Silver | Mounting Type | Cable Mount |
| Shell Plating | Electroless Nickel | Connector Type | MIL-DTL-38999 Series III Connector |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Wire | Shell Material | Aluminum |
| Connector Style | Plug | Insert Material | Hard Dielectric |
| Insertion Angle | 21-11 | Material - Body | :Aluminium |
| Shell Size, MIL | G | Contact Material | Copper Alloy |
| Termination Style | Crimp | 1st Contact Gender | Pin (Male) |
| Mating Orientation | Self Locking | Number of Contacts | Yes |
| Contact Termination | :Crimp | Number of Positions | 11 |
| Shell Size - Insert | 21-11 | Bushing, Grommet Type | Silicone |
| Shell Material, Finish | Aluminum, Nickel Plated, Electroless | Contact Finish Thickness | 50µin (1.27µm) |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | MIL-DTL-38999 Circular | Gender | PL |
| Series | TV | Features | Shielded |
| Product Type | Plugs | Service Class | electroless nickel plated aluminum, EMI -65dB @ 10GHz, 48 hour salt spray, 200°C |
| Specifications | MIL-DTL-38999 | ||
Environmental
| Ratings | I | Mechanical Life | 500 |
| Ingress Protection | Environment Resistant | Operating Temperature | 200°C |
Documents & Media
Similar Parts
A8504938S21N
Amphenol PCD

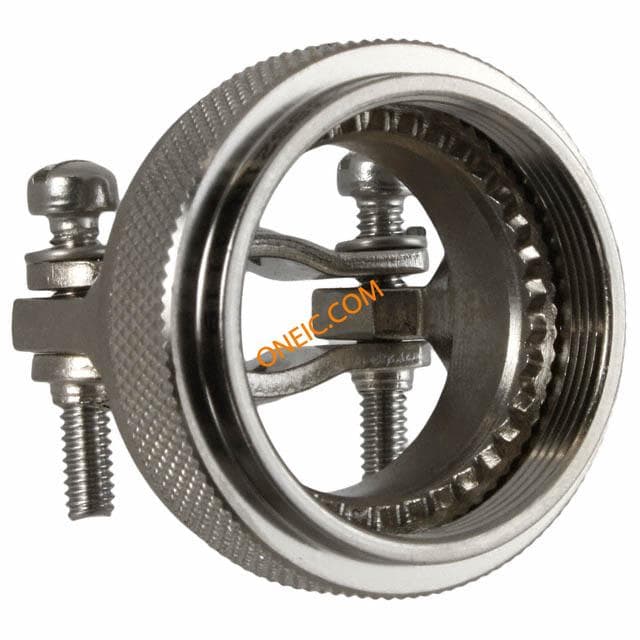

Circular MIL Spec Strain Reliefs & Adapters Backshell, SR, Strt, SL, Nickel, Size 21 STRAIN RELIEF STR SL SHELL SZ 21
D38999/24FG11SN
amphenol
Conn MIL-DTL-38999 Circular SKT 11 POS Crimp ST Jam Nut 11 Terminal 1 Port CONN RCPT 11POS JAM NUT W/SCKT Circular MIL Spec Connector 11P SZ 21 RCPT PNL MNT SKT CONNECTOR, CIRC, 21-11, 11WAY, SIZE 21
D38999/20FG11SN
amphenol
Conn MIL-DTL-38999 Circular SKT 11 POS Crimp ST Wall Mount 11 Terminal 1 Port CONN RCPT 11POS WALL MNT W/SCKT Circular MIL Spec Connector 11P WL MNT SOC SZ 21 CONNECTOR, CIRCULAR, SIZE 21, 11WAY
A8504939S21N
Amphenol PCD

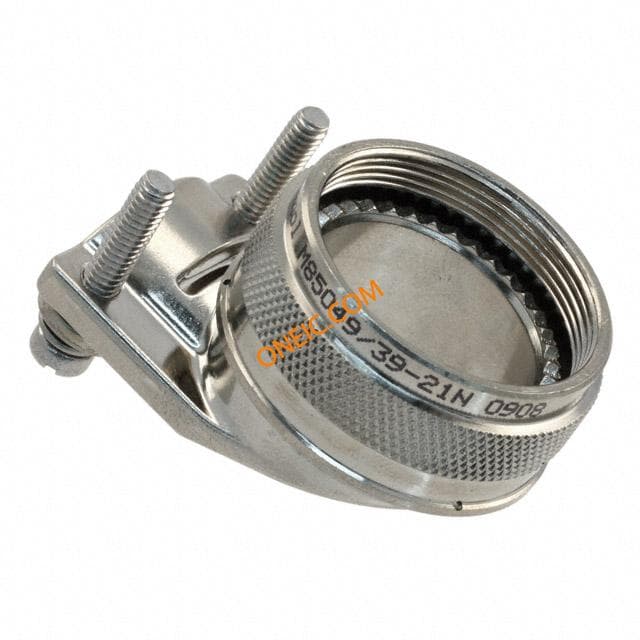

サーキュラーミル 仕様張力緩和およびアダプター Backshell, SR, 90deg, SL, Nickel, Size 21 STRAIN RELIEF 90 DEG SHELL SZ 21
A850493921N
Amphenol PCD
サーキュラーミル 仕様張力緩和およびアダプター Backshell, SR, 90deg, Nickel, Size 21 STRAIN RELIEF 90 DEG SHELL SZ 21
A850493821N
Amphenol PCD

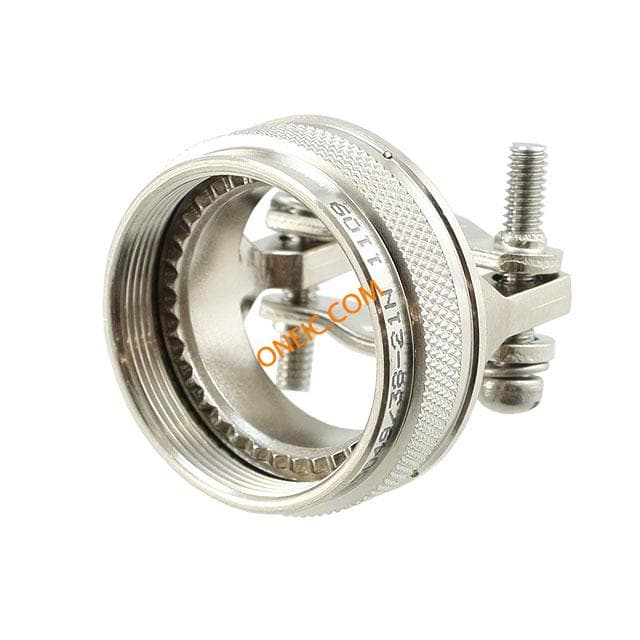

STRAIN RELIEF STRGHT SHELL SZ 21
