D38999/26FF11SN
| Manufacturer | |
| Description | Conn MIL-DTL-38999 Circular SKT 11 POS Crimp ST Cable Mount 11 Terminal 1 Port MIL-DTL-38999 Series III Circular Connector CONN PLUG 11POS STRAIGHT W/SCKT Circular MIL Spec Connector 11P PLG SZ 19 SKT CBL MNT CIRCULAR, SIZE 19, 11WAY, SKT |
| Category |
Business
| Part # Aliases | 91-552046-11S | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL Type | MIL-DTL-38999 III |
| Tariff No | 85369010 | Approval Agency | :MIL-DTL-38999 Series III |
Electrical
| Insertion Loss | Normal | Voltage Rating | 900VAC, 1250VDC |
| Current Rating (Max) | 13A | Voltage - Supply (Min) | 2300 |
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Shielding | Yes | Shell Size | 19 |
| Wire Gauge | 20,18,16 | Orientation | N (Normal) |
| Shell Style | straight plug | Termination | Crimp |
| Contact Size | 11#16 | Contact Type | socket contacts |
| Housing Color | Silver | Mounting Type | Cable Mount |
| Shell Plating | Electroless Nickel | Connector Type | MIL-DTL-38999 Series III Connector |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Wire | Shell Material | Aluminum |
| Connector Style | Plug | Insert Material | Hard Dielectric |
| Insertion Angle | 19-11 | Material - Body | :Aluminium |
| Shell Size, MIL | F | Contact Material | Copper Alloy |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Self Locking | Number of Contacts | Yes |
| Contact Termination | :Crimp | Number of Positions | 11 |
| Shell Size - Insert | 19-11 | Bushing, Grommet Type | Silicone |
| Shell Material, Finish | Aluminum, Nickel Plated, Electroless | Contact Finish Thickness | 50µin (1.27µm) |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | MIL-DTL-38999 Circular | Gender | PL |
| Series | TV | Features | Shielded |
| Product Type | Plugs | Service Class | electroless nickel plated aluminum, EMI -65dB @ 10GHz, 48 hour salt spray, 200°C |
| Specifications | MIL-DTL-38999 | ||
Environmental
| Ratings | II | Mechanical Life | 500 |
| Ingress Protection | Environment Resistant | Operating Temperature | 200°C |
Documents & Media
Similar Parts
D38999/20FF11PN
amphenol
Conn MIL-DTL-38999 Circular PIN 11 POS Crimp ST Wall Mount 11 Terminal 1 Port CONN RCPT 11POS WALL MNT W/PINS Circular MIL Spec Connector 11P SZ 19 WALL MNT PIN CONNECTOR, CIRC, 19-11, 11WAY, SIZE 19
D38999/24FF11PN
amphenol
Conn MIL-DTL-38999 Circular PIN 11 POS Crimp ST Jam Nut 11 Terminal 1 Port CONN RCPT 11POS JAM NUT W/PINS Circular MIL Spec Connector 11P SZ 19 PANEL MOUNT PIN CONNECTOR, CIRC, 19-11, 11WAY, SIZE 19

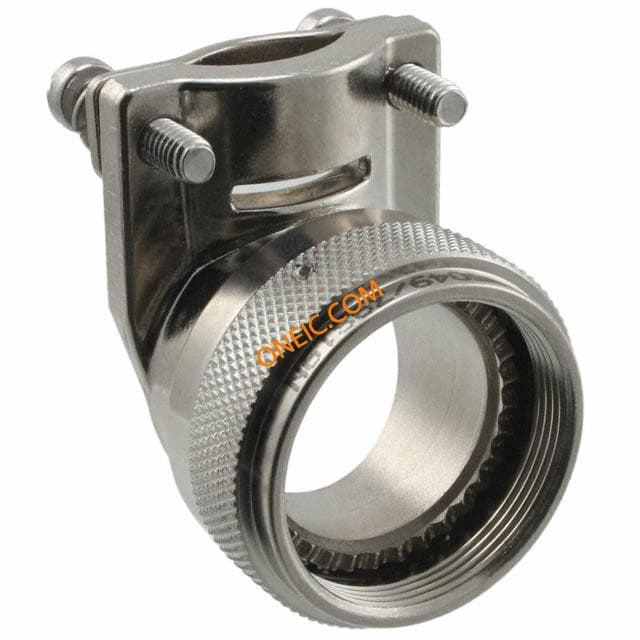

A8504939S19N
Amphenol PCD
Circular MIL Spec Strain Reliefs & Adapters Backshell, SR, 90deg, SL, Nickel, Size 19 STRAIN REL 90 DEG SL SHELL SZ 19

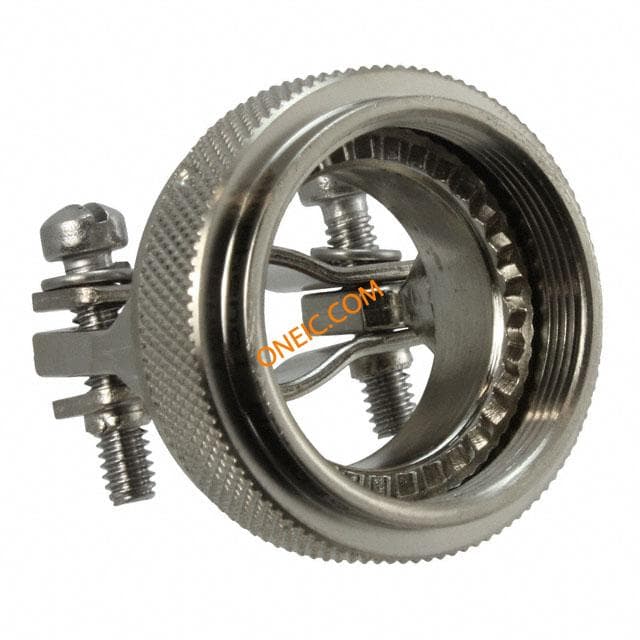

A8504938S19N
Amphenol PCD
Circular MIL Spec Strain Reliefs & Adapters Backshell, SR, Strt, SL, Nickel, Size 19 STRAIN RELIEF STR SL SHELL SZ 19

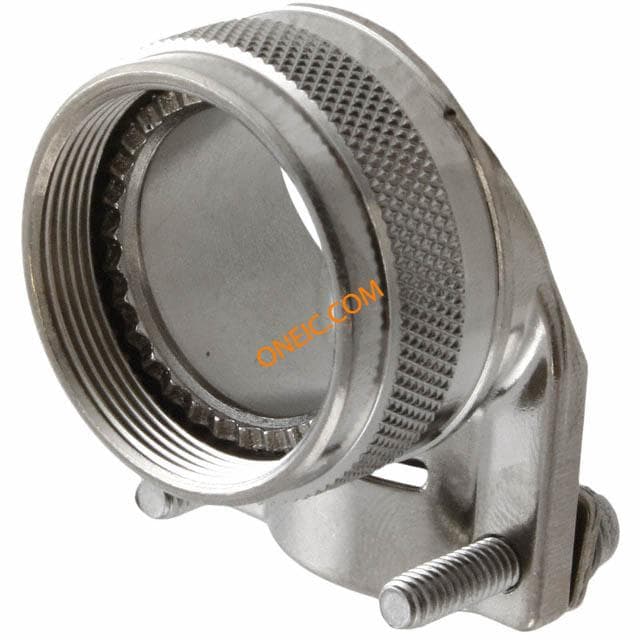

A850493919N
Amphenol PCD
Circular MIL Spec Strain Reliefs & Adapters Backshell, SR, 90deg, Nickel, Size 19 STRAIN RELIEF 90 DEG SHELL SZ 19

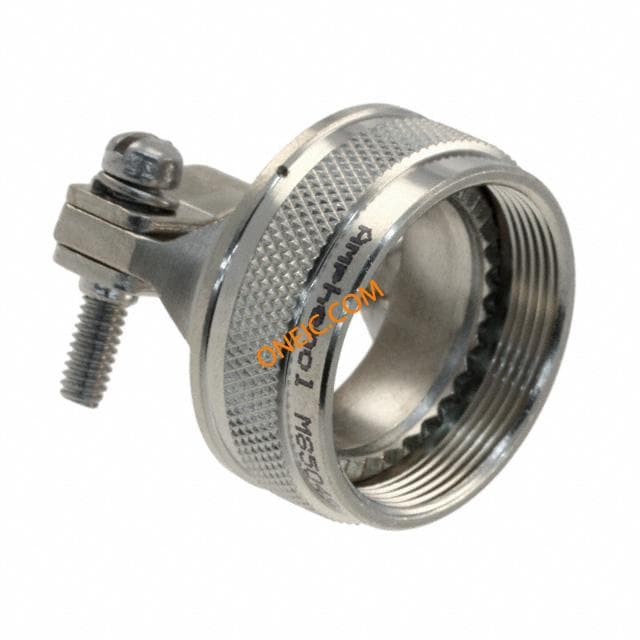

A850493819N
