D38999/26FC35SC
| Manufacturer | |
| Description | Conn MIL-DTL-38999 Circular SKT 22 POS Crimp ST Cable Mount 22 Terminal 1 Port MIL-DTL-38999 Series III Circular Connector CONN PLUG 22POS STRAIGHT W/SCKT Circular MIL Spec Connector 22P PLG SZ 13 SKT CBL MNT CONNECTOR, CIRC, 13-35, 22WAY, SIZE 13 |
| Category |
Business
| Part # Aliases | 91-552043-35L | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL Type | MIL-DTL-38999 III |
| Tariff No | 85369010 | Approval Agency | :MIL-DTL-38999 Series III |
Electrical
| Insertion Loss | C | Voltage Rating | 400VAC, 550VDC |
| Current Rating (Max) | 5A | Voltage - Supply (Min) | 1300 |
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Shielding | Yes | Shell Size | 13 |
| Wire Gauge | 28,26,24,22 | Orientation | C |
| Shell Style | straight plug | Termination | Crimp |
| Contact Size | 22#22D | Contact Type | socket contacts |
| Housing Color | Silver | Mounting Type | Cable Mount |
| Shell Plating | Electroless Nickel | Connector Type | MIL-DTL-38999 Series III Connector |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Wire | Shell Material | Aluminum |
| Connector Style | Plug | Insert Material | Hard Dielectric |
| Insertion Angle | 13-35 | Material - Body | :Aluminium |
| Shell Size, MIL | C | Contact Material | Copper Alloy |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Self Locking | Number of Contacts | Yes |
| Contact Termination | :Crimp | Number of Positions | 22 |
| Shell Size - Insert | 13-35 | Bushing, Grommet Type | Silicone |
| Shell Material, Finish | Aluminum, Nickel Plated, Electroless | Contact Finish Thickness | 50µin (1.27µm) |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | MIL-DTL-38999 Circular | Gender | PL |
| Series | TV | Features | Shielded |
| Product Type | Plugs | Service Class | electroless nickel plated aluminum, EMI -65dB @ 10GHz, 48 hour salt spray, 200°C |
| Specifications | MIL-DTL-38999 | ||
Environmental
| Ratings | M | Mechanical Life | 500 |
| Ingress Protection | Environment Resistant | Operating Temperature | 200°C |
Documents & Media
Similar Parts
D38999/20FC35PC
amphenol
Conn MIL-DTL-38999 Circular PIN 22 POS Crimp ST Wall Mount 22 Terminal 1 Port Circular MIL Spec Connector 22P RCPT PIN CONN RCPT 22POS WALL MNT W/PINS CIRCULAR, SIZE 13, 22WAY, PIN
D38999/24FC35PC
amphenol
Conn MIL-DTL-38999 Circular PIN 22 POS Crimp ST Jam Nut 22 Terminal 1 Port CONN RCPT 22POS JAM NUT W/PINS Circular MIL Spec Connector 22P SZ 13 PANEL MOUNT PIN CONNECTOR, CIRC, 13-35, 22WAY, SIZE 13

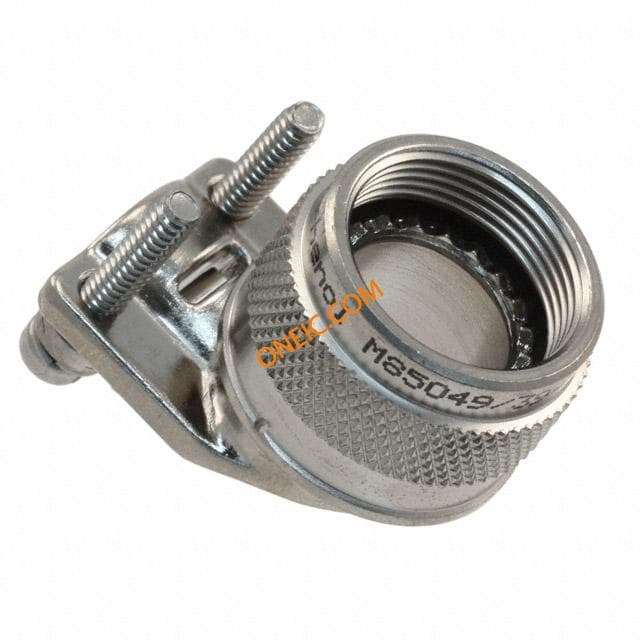

A850493913N
Amphenol PCD

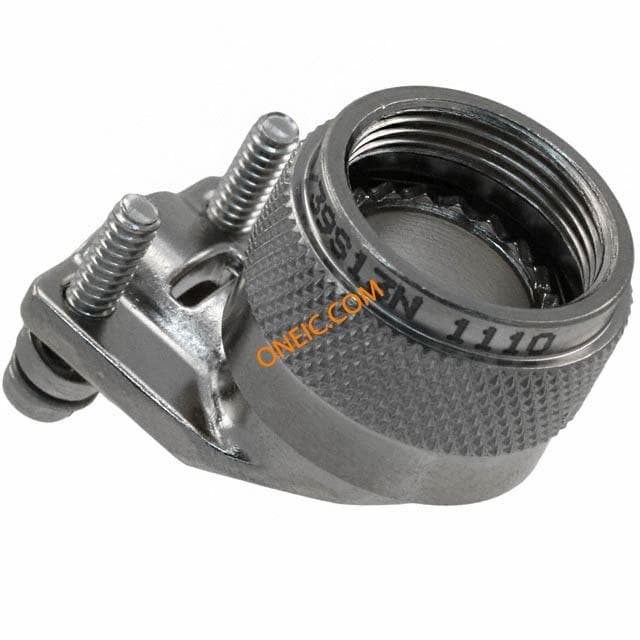

Circular MIL Spec Strain Reliefs & Adapters Backshell, SR, 90deg, Nickel, Size 13 STRAIN RELIEF 90 DEG SHELL SZ 13
A8504939S13N
Amphenol PCD
サーキュラーミル 仕様張力緩和およびアダプター Backshell, SR, 90deg, SL, Nickel, Size 13 STRAIN REL 90 DEG SL SHELL SZ 13
A850493813N
Amphenol PCD

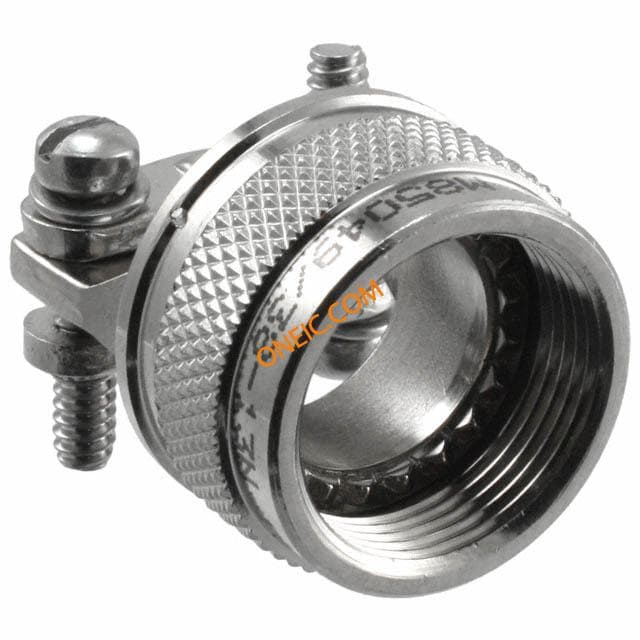

STRAIN RELIEF STRGHT SHELL SZ 13
A8504938S13N
Amphenol PCD

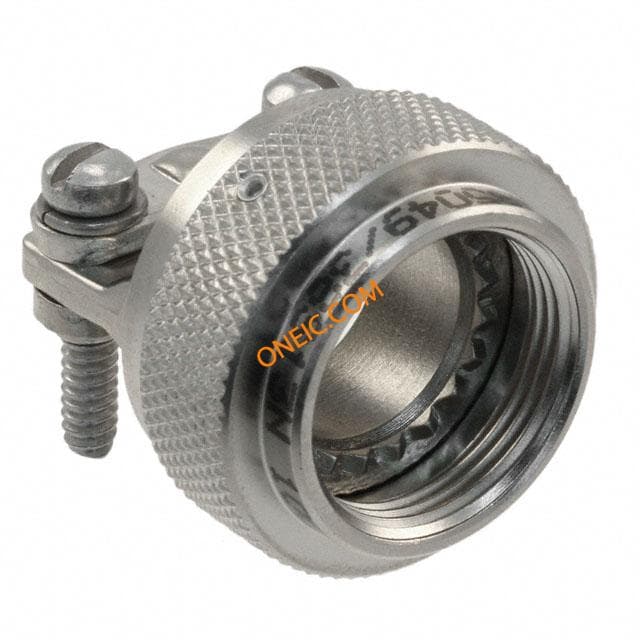

STRAIN RELIEF STR SL SHELL SZ 13
615723
Astro Tool Corp
TOOL POSITIONER M22520/2-07
616330
Astro Tool Corp
TOOL POSITIONER M22520/7-05
ATML 0801B
Astro Tool Corp
TOOL INSERT TWZR M81969/8-01 B
ATML 0802B
Astro Tool Corp
TOOL REM TWZR M81969/8-02 B
BK4SRL12079XY
Amphenol
Backshell,MIL-C 38999,straight,size 13 BANDLOCK, MIL-C 38999, 13-C Backshell,MIL-C38999,straight,size13 Amphenol BK4 系列 尺寸13 底壳, 使用于MIL-C 38999 连接器

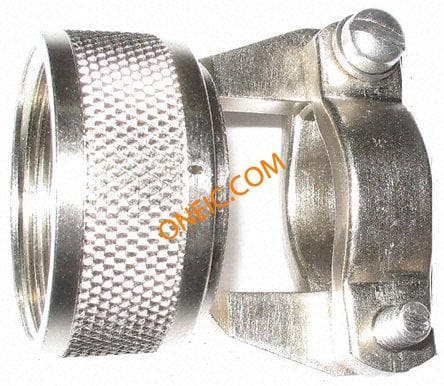

BS1SRL12999XY
Amphenol
Backshell,MIL-C 38999,straight,size 13 STRAIN RELIEF, MIL-C 38999, 13-C Backshell,MIL-C38999,straight,size13 Amphenol BS1 系列 尺寸12 底壳, 带应力消除, 使用于L 组连接器
BK4ARL12079XY
Amphenol
Backshell,MIL-C 38999,right angle,size13
BS1ARL12999XY
Amphenol
Backshell,MIL-C 38999,right angle,size13 Backshell,MIL-C38999,rightangle,size13 Amphenol BS1 系列 直角 尺寸12 底壳, 带应力消除, 使用于L 组连接器

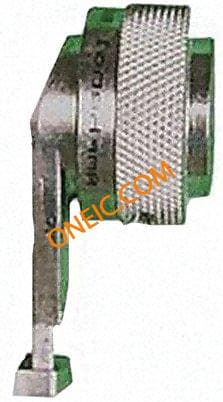

BQ1ARL12999XY
