D38999/26FA98PB

Manufacturer	Amphenol Corporation
Description	Conn MIL-DTL-38999 Circular PIN 3 POS Crimp ST Cable Mount 3 Terminal 1 Port MIL-DTL-38999 Series III Circular Connector CONN PLUG 3POS STRAIGHT W/PINS Circular MIL Spec Connector 3P SZ 9 PLUG CBL MNT PIN CONNECTOR, CIRCULAR, SIZE 9, 3WAY
Category	Connector SolutionsCircular ConnectorsStandard Circular Connectors

对参数有疑问？问 AI 助手

Business

Part # Aliases

91-552041-98I

Standard Package

Bulk

Compliance

RoHS	Contains lead / RoHS non-compliant	MIL Type	MIL-DTL-38999 III
Tariff No	85369010	Approval Agency	:MIL-DTL-38999 Series III

Electrical

Insertion Loss	B	Voltage Rating	600VAC, 850VDC
Current Rating (Max)	7.5A	Voltage - Supply (Min)	1800

Mechanical

Weight	0.001	Packaging	Bulk
Shielding	Yes	Shell Size	9
Wire Gauge	24,22,20	Orientation	B
Shell Style	straight plug	Termination	Crimp
Contact Size	3#20	Contact Type	pin contacts
Housing Color	Silver	Mounting Type	Cable Mount
Shell Plating	Electroless Nickel	Connector Type	MIL-DTL-38999 Series III Connector
Contact Finish	Gold	Fastening Type	Threaded
Mounting Style	Wire	Package / Case	:Straight Plug
Shell Material	Aluminum	Connector Style	Plug
Insert Material	Hard Dielectric	Insertion Angle	9-98
Material - Body	:Aluminium	Shell Size, MIL	A
Contact Material	Copper Alloy	Termination Style	Crimp
1st Contact Gender	Pin (Male)	Mating Orientation	Self Locking
Number of Contacts	Yes	Contact Termination	:Crimp
Number of Positions	3	Shell Size - Insert	9-98
Bushing, Grommet Type	Silicone	Shell Material, Finish	Aluminum, Nickel Plated, Electroless
Contact Finish Thickness	50µin (1.27µm)	1st Connector Mounting Type	:Cable

Product Info

Type	MIL-DTL-38999 Circular	Gender	PL
Series	TV	Features	Shielded
Product Type	Plugs	Service Class	electroless nickel plated aluminum, EMI -65dB @ 10GHz, 48 hour salt spray, 200Â°C
Specifications	MIL-DTL-38999

Environmental

Ratings	I	Mechanical Life	500
Ingress Protection	Environment Resistant	Operating Temperature	200°C

Documents & Media

PDF Document

MIL-DTL-38999 Series III Datasheet

PDF Document

118589.pdf

PDF Document

inhouse_Amphenol_DTL-38999_III%20TV%20.pdf

PDF Document

12-092.pdf

Similar Parts

D38999/20FA98SB

amphenol

Conn MIL-DTL-38999 Circular SKT 3 POS Crimp ST Wall Mount 3 Terminal 1 Port CONN RCPT 3POS WALL MNT W/SCKT Circular MIL Spec Connector 3P Size 9 Wall Mount Receptacle CIRCULAR, SIZE 9, 3WAY, SKT

$235.1120

Details

A85049399N

Amphenol PCD

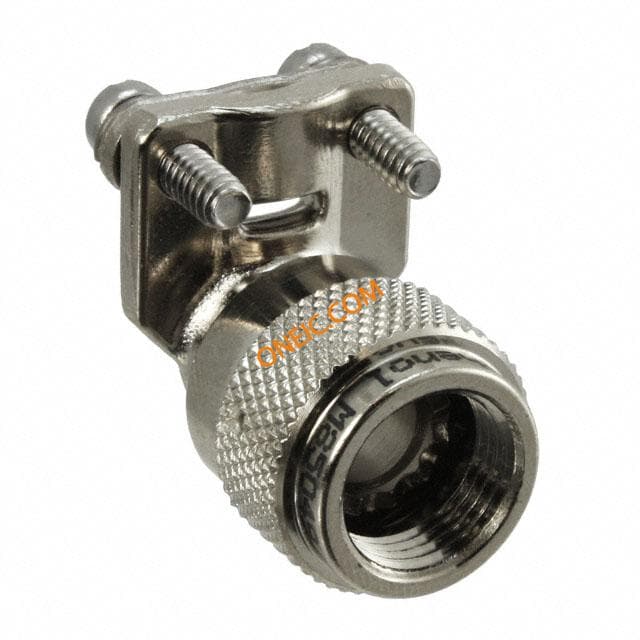

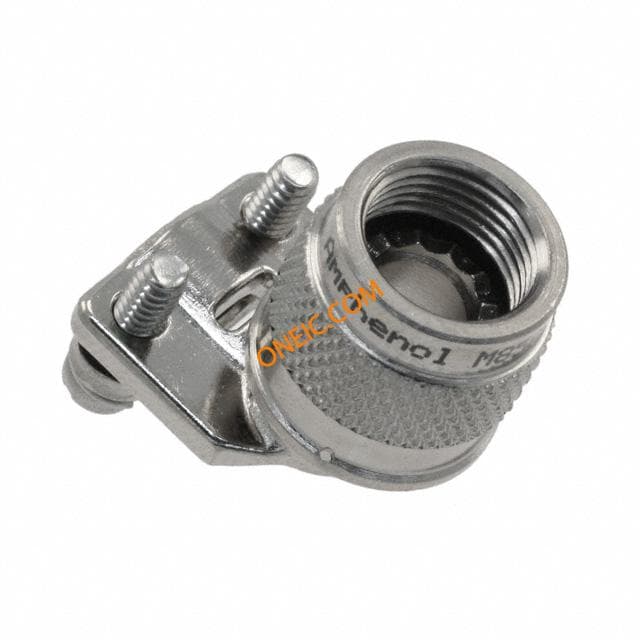

Circular MIL Spec Strain Reliefs & Adapters Backshell, SR, 90deg, Nickel, Size 9 STRAIN RELIEF 90 DEG SHELL SZ 9
