D38999/24FB35SN
| Manufacturer | |
| Description | Conn MIL-DTL-38999 Circular SKT 13 POS Crimp ST Jam Nut 13 Terminal 1 Port CONN RCPT 13POS JAM NUT W/SCKT Circular MIL Spec Connector TRI-START ALUMINUM CONNECTOR, CIRCULAR, RCPT, 13POS, PANEL CONNECTOR, CIRC, 11-35, 13WAY, SIZE 11 |
| Category |
Business
| Part # Aliases | 91-552062-35S | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL Type | MIL-DTL-38999 III |
| Tariff No | 85369010 | Approval Agency | :MIL-DTL-38999 Series III |
Electrical
| Insertion Loss | Normal | Voltage Rating | 400VAC, 550VDC |
| Current Rating (Max) | 5A | Voltage - Supply (Min) | 1300 |
Mechanical
| Weight | 0 | Packaging | Bulk |
| Shielding | Yes | Shell Size | 11 |
| Wire Gauge | 28,26,24,22 | Orientation | N (Normal) |
| Shell Style | Jam Nut | Termination | Crimp |
| Contact Size | 13#22D | Contact Type | Socket |
| Housing Color | Silver | Mounting Type | Jam Nut |
| Shell Plating | Electroless Nickel | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Panel | Shell Material | Aluminum |
| Connector Style | Receptacle | Insert Material | Hard Dielectric |
| Insertion Angle | 11-35 | Material - Body | :Aluminium |
| Shell Size, MIL | B | Contact Material | Copper Alloy |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Self Locking | Number of Contacts | 13 |
| Contact Termination | :Crimp | Number of Positions | 13 |
| Shell Size - Insert | 11-35 | Bushing, Grommet Type | Silicone |
| Shell Material, Finish | Aluminum, Nickel Plated, Electroless | Contact Finish Thickness | 50µin (1.27µm) |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Type | MIL-DTL-38999 Circular | Gender | RCP |
| Series | TV | Features | Shielded |
| Product Type | Receptacles | Specifications | MIL-DTL-38999 |
Environmental
| Ratings | M | Mechanical Life | 500 |
| Ingress Protection | Environment Resistant | Operating Temperature | 200°C |
Documents & Media
Similar Parts
D38999/26FB35PN
amphenol
Conn MIL-DTL-38999 Circular PIN 13 POS Crimp ST Cable Mount 13 Terminal 1 Port MIL-DTL-38999 Series III Circular Connector CONN PLUG 13POS STRAIGHT W/PINS Circular MIL Spec Connector St plug 13P; sz 11 11-35 CONNECTOR, CIRC, 11-35, 13WAY, SIZE 11 CIRCULAR CONNECTOR PLUG SIZE 11, 13POS, CABLE TV 13C 13#22 Pin Plug
D38999/26FB35HN
amphenol
Conn MIL-DTL-38999 Circular PIN 13 POS Crimp ST Cable Mount 13 Terminal 1 Port MIL-DTL-38999 Series III Circular Connector CONN PLUG 13POS STRAIGHT W/PINS Circular MIL Spec Connector 13P Size 26 Straight Plug Pin CIRCULAR, SIZE 11, 13WAY, PIN
D38999/26FB35P
Amphenol Industrial Operations
CONN PLUG 13POS STRAIGHT W/PINS MIL-DTL-38999 Series III Circular Connector
615723
Astro Tool Corp
TOOL POSITIONER M22520/2-07
616330
Astro Tool Corp
TOOL POSITIONER M22520/7-05
ATML 0801B
Astro Tool Corp
TOOL INSERT TWZR M81969/8-01 B
ATML 0802B
Astro Tool Corp
TOOL REM TWZR M81969/8-02 B

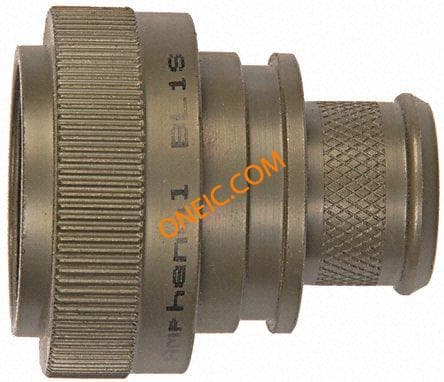

BK4SRL10059XY
Amphenol
Backshell,MIL-C 38999,straight,size 11 BANDLOCK, MIL-C 38999, 11-B Backshell,MIL-C38999,straight,size11 Amphenol BK4 系列 尺寸11 底壳, 使用于MIL-C 38999 连接器

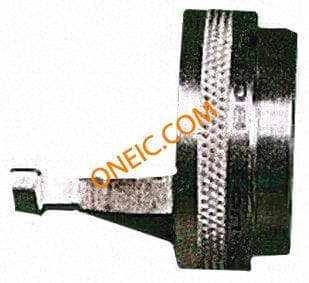

BQ1SRL10999XY
Amphenol
Backshell,MIL-C 38999,straight,size 11 Amphenol BQ1 系列 尺寸11 底壳, 使用于MIL-C 38999 连接器系列 III、MIL-C 38999 连接器系列 IV

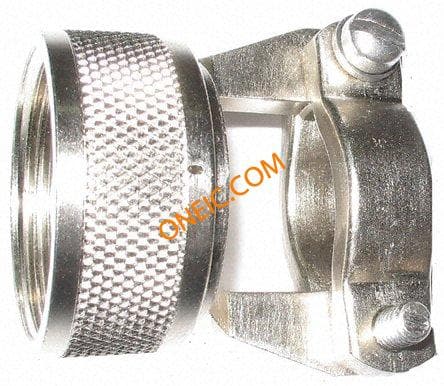

BS1SRL10999XY
