D38999/24FA35SA
| Manufacturer | |
| Description | Conn MIL-DTL-38999 Circular SKT 6 POS Crimp ST Jam Nut 6 Terminal 1 Port CONN RCPT 6POS JAM NUT W/SCKT Circular MIL Spec Connector 6P SZ 9 FEM PNL MNT SKT CONNECTOR, CIRCULAR, SIZE 9, 6WAY |
| Category |
Business
| Part # Aliases | 91-552061-35H | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL Type | MIL-DTL-38999 III |
| Tariff No | 85369010 | Approval Agency | :MIL-DTL-38999 Series III |
Electrical
| Insertion Loss | A | Voltage Rating | 400VAC, 550VDC |
| Current Rating (Max) | 5A | Voltage - Supply (Min) | 1300 |
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Shielding | Yes | Shell Size | 9 |
| Wire Gauge | 28,26,24,22 | Orientation | A |
| Shell Style | Jam Nut | Termination | Crimp |
| Contact Size | 6#22D | Contact Type | Socket |
| Housing Color | Silver | Mounting Type | Jam Nut |
| Shell Plating | Electroless Nickel | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Panel | Package / Case | :Jam Nut Receptacle |
| Shell Material | Aluminum | Connector Style | Receptacle |
| Insert Material | Hard Dielectric | Insertion Angle | 9-35 |
| Material - Body | :Aluminium | Shell Size, MIL | A |
| Contact Material | Copper Alloy | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Mating Orientation | Self Locking |
| Number of Contacts | 6 | Contact Termination | :Crimp |
| Number of Positions | 6 | Shell Size - Insert | 9-35 |
| Bushing, Grommet Type | Silicone | Shell Material, Finish | Aluminum, Nickel Plated, Electroless |
| Contact Finish Thickness | 50µin (1.27µm) | 1st Connector Mounting Type | :Panel |
Product Info
| Type | MIL-DTL-38999 Circular | Gender | RCP |
| Series | TV | Features | Shielded |
| Product Type | Receptacles | Specifications | MIL-DTL-38999 |
Environmental
| Ratings | M | Mechanical Life | 500 |
| Ingress Protection | Environment Resistant | Operating Temperature | 200°C |
Documents & Media
Similar Parts
D38999/26FA35PA
amphenol
Conn MIL-DTL-38999 Circular PIN 6 POS Crimp ST Cable Mount 6 Terminal 1 Port MIL-DTL-38999 Series III Circular Connector CONN PLUG 6POS STRAIGHT W/PINS Circular MIL Spec Connector 6P PLG SZ 9 PIN CBL MNT CONNECTOR, CIRCULAR, SIZE 9, 6WAY
615723
Astro Tool Corp
TOOL POSITIONER M22520/2-07
616330
Astro Tool Corp
TOOL POSITIONER M22520/7-05
ATML 0801B
Astro Tool Corp
TOOL INSERT TWZR M81969/8-01 B
ATML 0802B
Astro Tool Corp
TOOL REM TWZR M81969/8-02 B
BK4SRL08049XY
Amphenol
Backshell,MIL-C 38999,straight,size 9 BANDLOCK, MIL-C 38999, 9-A Amphenol BK4 系列 尺寸9 底壳, 使用于MIL-C 38999 连接器

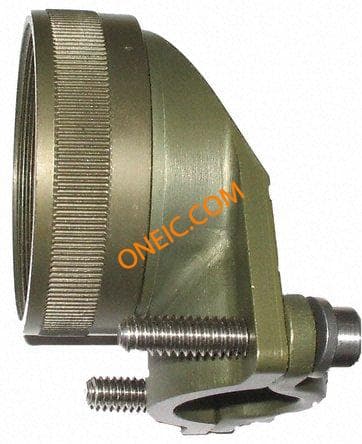

BS1ARL08999XY
