D38999/20WJ61PC
| Manufacturer | |
| Description | Conn MIL-DTL-38999 Circular PIN 61 POS Crimp ST Wall Mount 61 Terminal 1 Port Circular MIL Spec Connector 61P SZ 25 RCPT WALL MNT PIN CONN RCPT 61POS WALL MNT W/PINS CIRCULAR, SIZE 25, 61WAY, PIN |
| Category |
Business
| Part # Aliases | 88-552009-61K | Standard Package | Bulk |
Compliance
| RoHS | No | MIL Type | MIL-DTL-38999 III |
| Tariff No | 85369010 | Approval Agency | :MIL-DTL-38999 Series III |
Electrical
| Insertion Loss | C | Voltage Rating | 600VAC, 850VDC |
| Current Rating (Max) | 7.5 A | Voltage - Supply (Min) | 1800 |
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Shielding | Yes | Shell Size | 25 |
| Wire Gauge | 24,22,20 | Orientation | C |
| Shell Style | Wall Mount | Termination | Crimp |
| Contact Size | 61#20 | Contact Type | Pin |
| Housing Color | Olive Drab | Mounting Type | Wall Mount |
| Shell Plating | Olive Drab Cadmium | Connector Type | Receptacle, Male Pins |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Panel | Shell Material | Aluminum |
| Connector Style | Receptacle | Insert Material | Hard Dielectric |
| Insertion Angle | 25-61 | Material - Body | :Aluminium |
| Shell Size, MIL | J | Contact Material | Copper Alloy |
| Termination Style | Crimp | 1st Contact Gender | Pin (Male) |
| Mating Orientation | Self Locking | Number of Contacts | 61 |
| Contact Termination | :Crimp | Number of Positions | 61 |
| Shell Size - Insert | 25-61 | Bushing, Grommet Type | Silicone |
| Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated | Contact Finish Thickness | 50µin (1.27µm) |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Type | MIL-DTL-38999 Circular | Gender | RCP |
| Series | 38999 | Features | Shielded |
| Product Type | Receptacles | Specifications | MIL-DTL-38999 |
Environmental
| Ratings | I | Mechanical Life | 500 |
| Ingress Protection | Environment Resistant | Operating Temperature | 175°C |
Documents & Media
Similar Parts
D38999/26WJ61SC
amphenol
Conn MIL-DTL-38999 Circular SKT 61 POS Crimp ST Cable Mount 61 Terminal 1 Port Circular MIL Spec Connector 61P st plug soc sz 25 MIL-DTL-38999 Series III Circular Connector CONN PLUG 61POS STRAIGHT W/SCKT CONNECTOR, CIRC, 25-61, 61WAY, SIZE 25

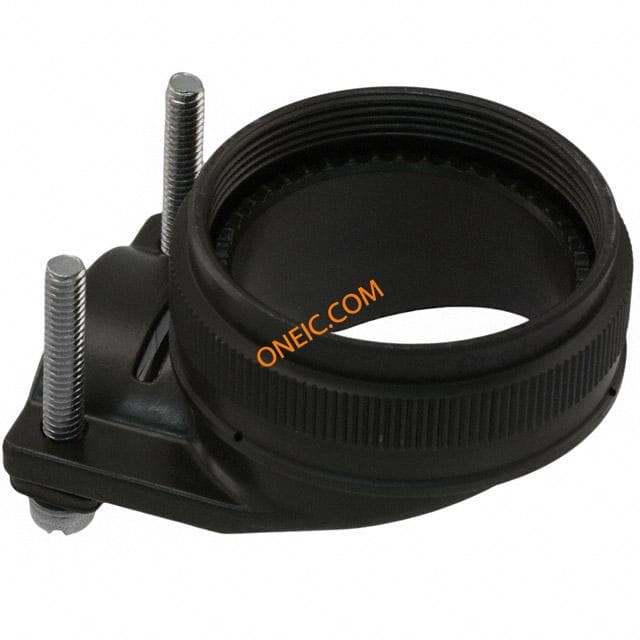

A850493925W
Amphenol PCD
Circular MIL Spec Strain Reliefs & Adapters Backshell, SR, 90deg, OD Cad, Size 25 STRAIN RELIEF 90 DEG SHELL SZ 25

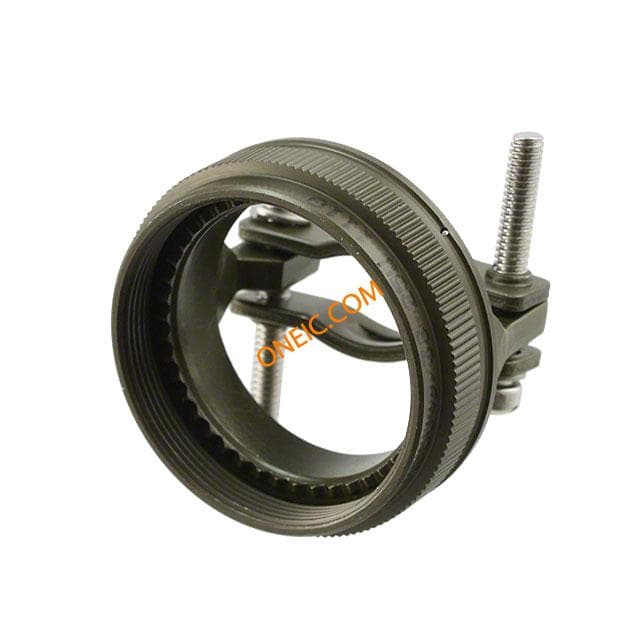

A850493825W
Amphenol PCD
Circular MIL Spec Strain Reliefs & Adapters Backshell, SR, Strt, OD Cad, Size 25 STRAIN RELIEF STRGHT SHELL SZ 25

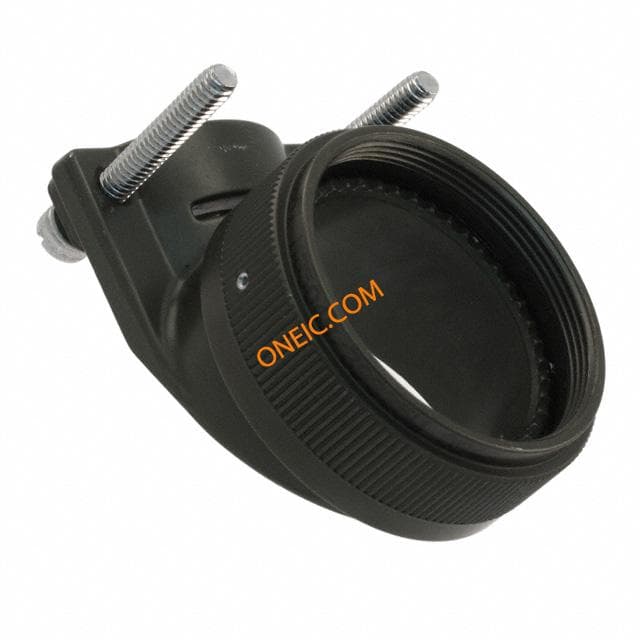

A8504939S25W
Amphenol PCD
サーキュラーミル 仕様張力緩和およびアダプター Backshell, SR, 90deg, SL, OD Cad, Size 25 STRAIN RELIEF 90 DEG SHELL SZ 25
615726
Astro Tool
CRIMP POSITIONER M22520/2-10
A8504938S25W

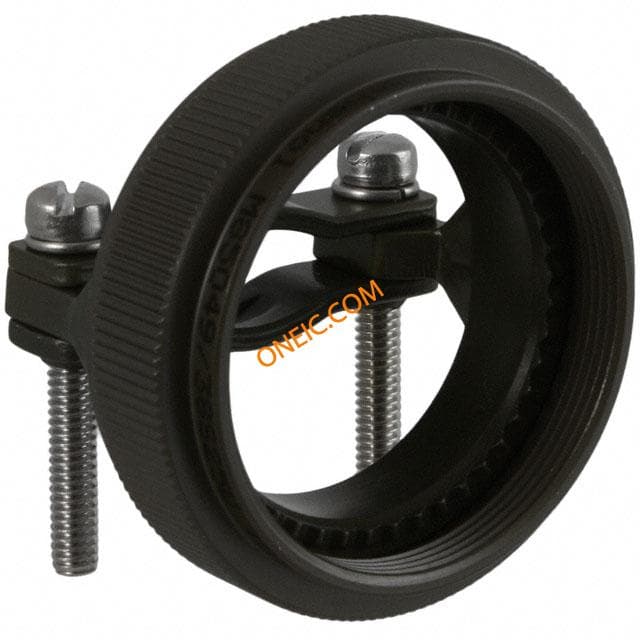

Amphenol PCD
