D38999/20WH21PB
| Manufacturer | |
| Description | Conn MIL-DTL-38999 Circular PIN 21 POS Crimp ST Wall Mount 21 Terminal 1 Port CONN RCPT 21POS WALL MNT W/PINS Circular MIL Spec Connector 21P SIZE 23 WALL MOUNT RECEPTACLE PIN CONNECTOR, CIRCULAR, SIZE 23, 21WAY |
| Category |
Business
| Part # Aliases | 88-552008-21I | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL Type | MIL-DTL-38999 III |
| Tariff No | 85369010 | Approval Agency | :MIL-DTL-38999 Series III |
Electrical
| Insertion Loss | B | Voltage Rating | 900VAC, 1250VDC |
| Current Rating (Max) | 13A | Voltage - Supply (Min) | 2300 |
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Shielding | Yes | Shell Size | 23 |
| Wire Gauge | 20,18,16 | Orientation | B |
| Shell Style | Wall Mount | Termination | Crimp |
| Contact Size | 21#16 | Contact Type | Pin |
| Housing Color | Olive Drab | Mounting Type | Wall Mount |
| Shell Plating | Olive Drab Cadmium | Connector Type | Receptacle, Male Pins |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Panel | Package / Case | :Wall Mount Receptacle |
| Shell Material | Aluminum | Connector Style | Receptacle |
| Insert Material | Hard Dielectric | Insertion Angle | 23-21 |
| Material - Body | :Aluminium | Shell Size, MIL | H |
| Contact Material | Copper Alloy | Termination Style | Crimp |
| 1st Contact Gender | Pin (Male) | Mating Orientation | Self Locking |
| Number of Contacts | 21 | Contact Termination | :Crimp |
| Number of Positions | 21 | Shell Size - Insert | 23-21 |
| Bushing, Grommet Type | Silicone | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
| Contact Finish Thickness | 50µin (1.27µm) | 1st Connector Mounting Type | :Panel |
Product Info
| Type | MIL-DTL-38999 Circular | Gender | RCP |
| Series | 38999 | Features | Shielded |
| Product Type | Receptacles | Specifications | MIL-DTL-38999 |
Environmental
| Ratings | II | Mechanical Life | 500 |
| Ingress Protection | Environment Resistant | Operating Temperature | 175°C |
Documents & Media
Similar Parts
A850493923W
Amphenol PCD

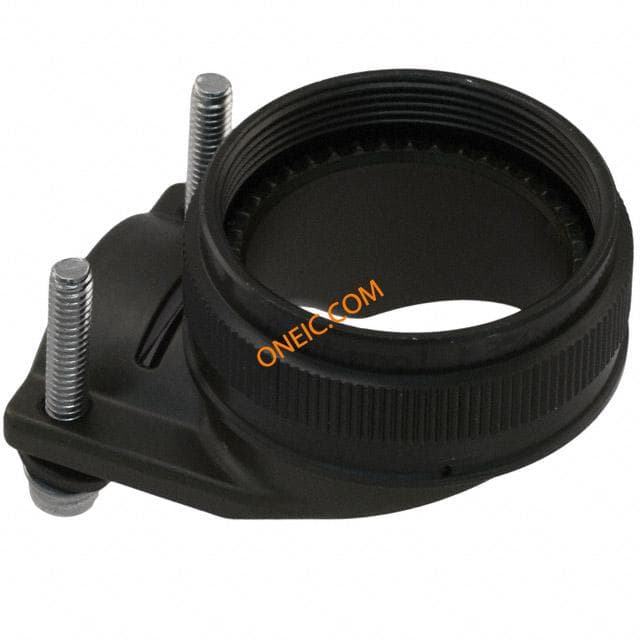

サーキュラーミル 仕様張力緩和およびアダプター Backshell, SR, 90deg, OD Cad, Size 23 STRAIN RELIEF 90 DEG SHELL SZ 23
A8504939S23W
Amphenol PCD
Circular MIL Spec Strain Reliefs & Adapters Backshell, SR, 90deg, SL, OD Cad, Size 23 STRAIN REL 90 DEG SL SHELL SZ 23
D38999/26WH21SB
amphenol
Conn MIL-DTL-38999 Circular SKT 21 POS Crimp ST Cable Mount 21 Terminal 1 Port Circular MIL Spec Connector 21P SIZE 23 SOCKET CABLE MOUNT PLUG MIL-DTL-38999 Series III Circular Connector CONN PLUG 21POS STRAIGHT W/SCKT CIRCULAR, SIZE 23, 21WAY, SKT
A850493823W
Amphenol PCD

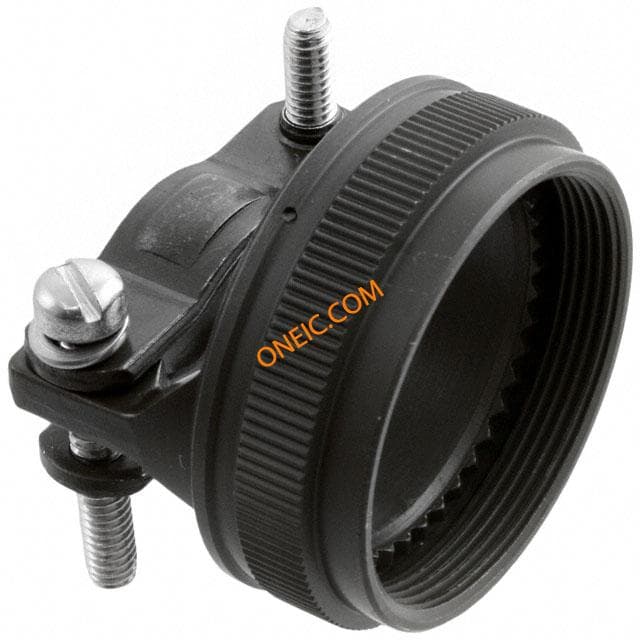

Circular MIL Spec Strain Reliefs & Adapters Backshell, SR, Strt, OD Cad, Size 23 STRAIN RELIEF STRGHT SHELL SZ 23
A8504938S23W
Amphenol PCD

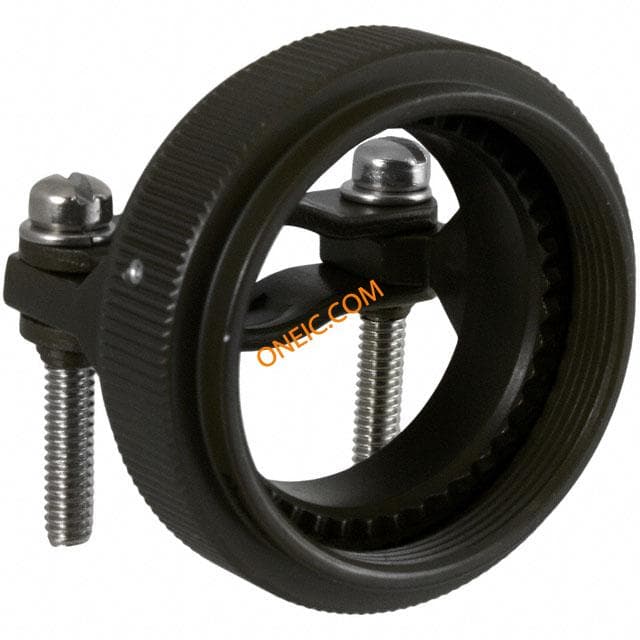

STRAIN RELIEF STR SL SHELL SZ 23
