点击放大查看
D38999/20WB98SN
| Manufacturer | |
| Description | Conn MIL-DTL-38999 Circular SKT 6 POS Crimp ST Wall Mount 6 Terminal 1 Port CONN RCPT 6POS WALL MNT W/SCKT Circular MIL Spec Connector TRI-START ALUMINUM CONNECTOR, CIRCULAR, SIZE 11, 6WAY Appliance socket with flange 11-98 6P, D38999/20WB98SN, Amphenol |
| Category |
Business
| Part # Aliases | 88-552002-98S | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL Type | MIL-DTL-38999 III |
| Tariff No | 85369010 | Approval Agency | :MIL-DTL-38999 Series III |
Electrical
| Insertion Loss | Normal | Voltage Rating | 600VAC, 850VDC |
| Current Rating (Max) | 7.5A | Voltage - Supply (Min) | 1800 |
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Shielding | Yes | Shell Size | 11 |
| Wire Gauge | 24,22,20 | Orientation | N (Normal) |
| Shell Style | Wall Mount | Termination | Crimp |
| Contact Size | 6#20 | Contact Type | Socket |
| Housing Color | Olive Drab | Mounting Type | Wall Mount |
| Shell Plating | Olive Drab Cadmium | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Panel | Package / Case | :Wall Mount Receptacle |
| Shell Material | Aluminum | Connector Style | Receptacle |
| Insert Material | Hard Dielectric | Insertion Angle | 11-98 |
| Material - Body | :Aluminium | Shell Size, MIL | B |
| Contact Material | Copper Alloy | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Mating Orientation | Self Locking |
| Number of Contacts | 6 | Contact Termination | :Crimp |
| Number of Positions | 6 | Shell Size - Insert | 11-98 |
| Bushing, Grommet Type | Silicone | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
| Contact Finish Thickness | 50µin (1.27µm) | 1st Connector Mounting Type | :Panel |
Product Info
| Type | MIL-DTL-38999 Circular | Gender | RCP |
| Series | 38999 | Features | Shielded |
| Product Type | Receptacles | Specifications | MIL-DTL-38999 |
Environmental
| Ratings | I | Mechanical Life | 500 |
| Ingress Protection | Environment Resistant | Operating Temperature | 175°C |
Documents & Media
Similar Parts

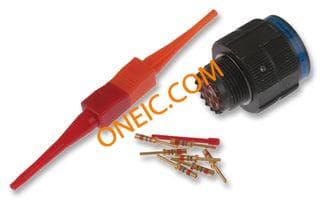

D38999/26WB98PN
