D38999/20JG35SN
| Manufacturer | |
| Description | Conn MIL-DTL-38999 Circular SKT 79 POS Crimp ST Wall Mount 79 Terminal 1 Port CONN RCPT 79POS WALL MNT W/SCKT Circular MIL Spec Connector 79P FM SZ 21 SKT WL MNT CONNECTOR, CIRCULAR, SIZE 21, 79WAY |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL Type | MIL-DTL-38999 III |
| Tariff No | 85369010 | Approval Agency | :MIL-DTL-38999 Series III |
Electrical
| Insertion Loss | Normal | Voltage Rating | 400VAC, 550VDC |
| Current Rating (Max) | 5A | Voltage - Supply (Min) | 1300 |
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Shielding | Yes | Shell Size | 21 |
| Wire Gauge | 28,26,24,22 | Orientation | N (Normal) |
| Shell Style | Wall Mount | Termination | Crimp |
| Contact Size | 79#22D | Contact Type | Socket |
| Housing Color | Olive Drab | Mounting Type | Wall Mount |
| Shell Plating | Olive Drab Cadmium | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Panel | Package / Case | :Wall Mount Receptacle |
| Shell Material | Aluminum | Connector Style | Receptacle |
| Insert Material | Hard Dielectric | Insertion Angle | 21-35 |
| Material - Body | :Composite | Shell Size, MIL | G |
| Contact Material | Copper Alloy | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Mating Orientation | Self Locking |
| Number of Contacts | 79 | Contact Termination | :Crimp |
| Number of Positions | 79 | Shell Size - Insert | 21-35 |
| Bushing, Grommet Type | Silicone | Shell Material, Finish | Olive Drab Cadmium Plated |
| Contact Finish Thickness | 50µin (1.27µm) | 1st Connector Mounting Type | :Panel |
Product Info
| Type | MIL-DTL-38999 Circular | Gender | RCP |
| Series | 38999 | Product Type | Receptacles |
| Specifications | MIL-DTL-38999 | ||
Environmental
| Ratings | M | Mechanical Life | 500 |
| Ingress Protection | Environment Resistant | Operating Temperature | 175°C |
Documents & Media
Similar Parts
D38999/26JG35HN
amphenol
Conn MIL-DTL-38999 Circular PIN 79 POS Crimp ST Cable Mount 79 Terminal 1 Port MIL-DTL-38999 Series III Circular Connector CONN PLUG 79POS STRAIGHT W/PINS Circular MIL Spec Connector 79P Sz 21 Strt Cable Plug OD Composite CONNECTOR, CIRC, 21-35, 79WAY, SIZE 21
D38999/26JG35PN
Amphenol Corporation
. D38999/26JG35PN - 79 Position Circular Connector Plug, Male Pins Crimp from Amphenol Aerospace Operations. from now!

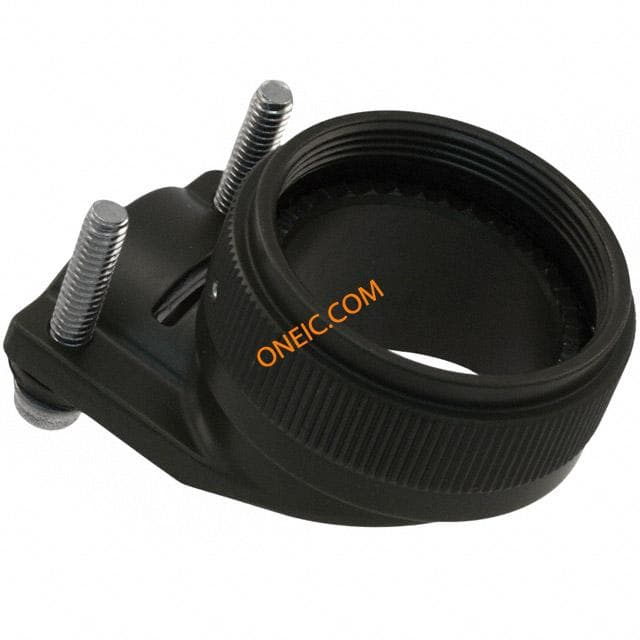

A8504939S21W
Amphenol PCD
サーキュラーミル 仕様張力緩和およびアダプター Backshell, SR, 90deg, SL, OD Cad, Size 21 STRAIN RELIEF 90 DEG SHELL SZ 21

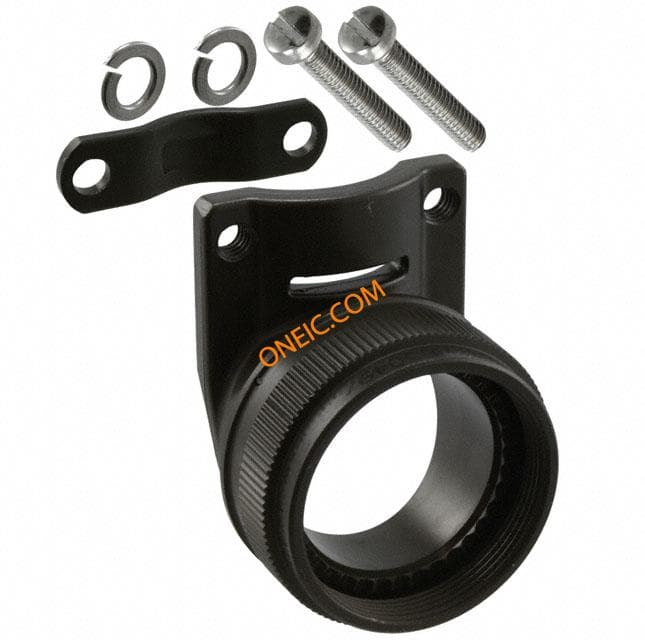

A850493921W
Amphenol PCD
Circular MIL Spec Strain Reliefs & Adapters Backshell, SR, 90deg, OD Cad, Size 21 STRAIN RELIEF 90 DEG SHELL SZ 21

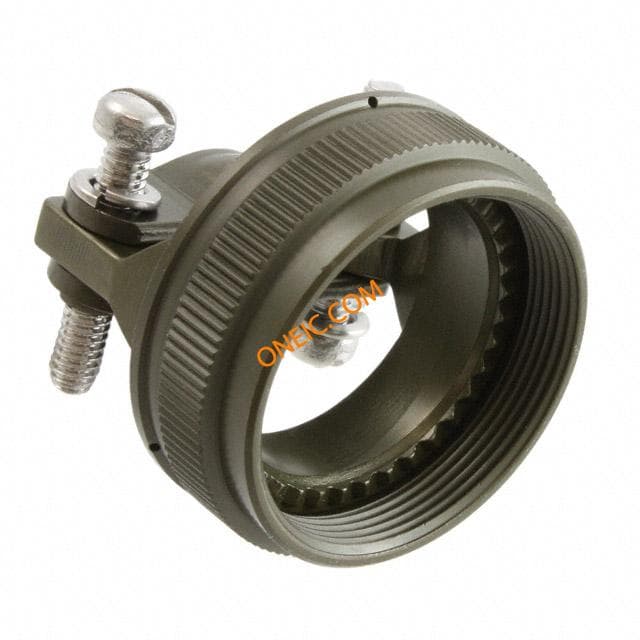

A850493821W
Amphenol PCD
STRAIN RELIEF STRGHT SHELL SZ 21

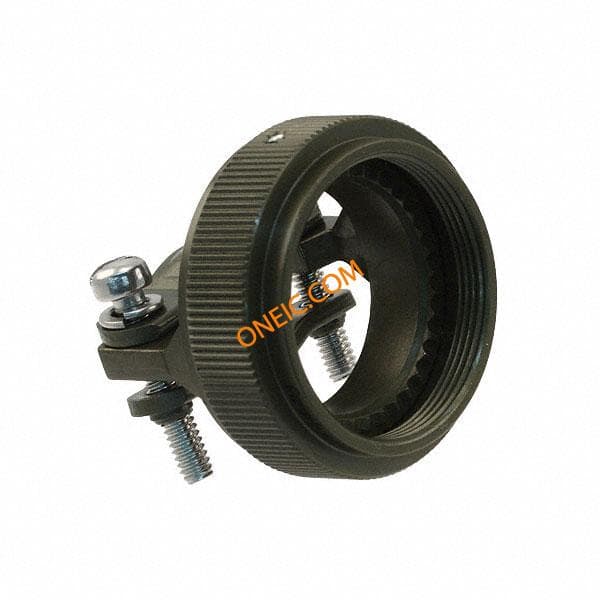

A8504938S21W
