D38999/20FB98PB
| Manufacturer | |
| Description | Conn MIL-DTL-38999 Circular PIN 6 POS Crimp ST Wall Mount 6 Terminal 1 Port CONN RCPT 6POS WALL MNT W/PINS Circular MIL Spec Connector 6P WL MNT PIN SZ 11 CIRCULAR, SIZE 11, 6WAY, PIN |
| Category |
Business
| Part # Aliases | 91-552002-98I | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL Type | MIL-DTL-38999 III |
| Tariff No | 85369010 | Approval Agency | :MIL-DTL-38999 Series III |
Electrical
| Insertion Loss | B | Voltage Rating | 600VAC, 850VDC |
| Current Rating (Max) | 7.5A | Voltage - Supply (Min) | 1800 |
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Shielding | Yes | Shell Size | 11 |
| Wire Gauge | 24,22,20 | Orientation | B |
| Shell Style | Wall Mount | Termination | Crimp |
| Contact Size | 6#20 | Contact Type | Pin |
| Housing Color | Silver | Mounting Type | Wall Mount |
| Shell Plating | Electroless Nickel | Connector Type | Receptacle, Male Pins |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Panel | Shell Material | Aluminum |
| Connector Style | Receptacle | Insert Material | Hard Dielectric |
| Insertion Angle | 11-98 | Material - Body | :Aluminium |
| Shell Size, MIL | B | Contact Material | Copper Alloy |
| Termination Style | Crimp | 1st Contact Gender | Pin (Male) |
| Mating Orientation | Self Locking | Number of Contacts | 6 |
| Contact Termination | :Crimp | Number of Positions | 6 |
| Shell Size - Insert | 11-98 | Bushing, Grommet Type | Silicone |
| Shell Material, Finish | Aluminum, Nickel Plated, Electroless | Contact Finish Thickness | 50µin (1.27µm) |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Type | MIL-DTL-38999 Circular | Gender | RCP |
| Series | 38999 | Features | Shielded |
| Product Type | Receptacles | Specifications | MIL-DTL-38999 |
Environmental
| Ratings | I | Mechanical Life | 500 |
| Ingress Protection | Environment Resistant | Operating Temperature | 200°C |
Documents & Media
Similar Parts
D38999/26FB98SB
amphenol
Conn MIL-DTL-38999 Circular SKT 6 POS Crimp ST Cable Mount 6 Terminal 1 Port MIL-DTL-38999 Series III Circular Connector CONN PLUG 6POS STRAIGHT W/SCKT Circular MIL Spec Connector 6P SZ 11 PLUG CBL MNT SKT CONNECTOR, CIRC, 11-98, 6WAY, SIZE 11

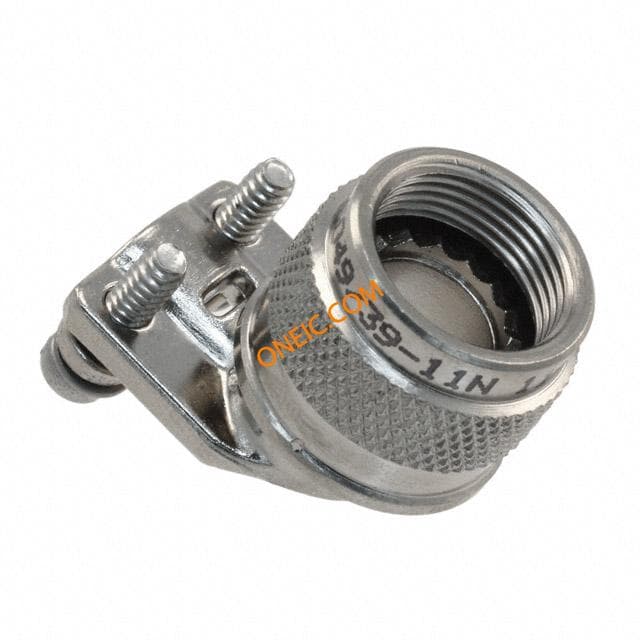

A850493911N
Amphenol PCD
Circular MIL Spec Strain Reliefs & Adapters Backshell, SR, 90deg, Nickel, Size 11 STRAIN RELIEF 90 DEG SHELL SZ 11
A8504939S11N
Amphenol PCD
Circular MIL Spec Strain Reliefs & Adapters Backshell, SR, 90deg, SL, Nickel, Size 11 STRAIN REL 90 DEG SL SHELL SZ 11
615726
Astro Tool
CRIMP POSITIONER M22520/2-10

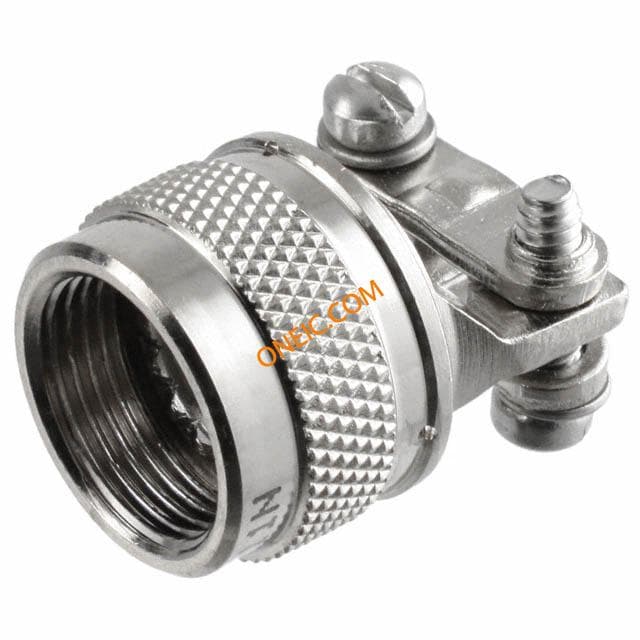

A850493811N
