C146-10A010-102-1
| Manufacturer | |
| Description | Conn Heavy-Duty Rectangular M 10Signal/1Ground POS Screw RA Panel Mount Heavy Duty Power Connectors Insert 10+ male Heavy Mate PIN CONNECTOR 10POS INSERT, MALE, SCREW, 500V, 10+PE RECTANGULAR INSERT, PLUG, 10WAY, SCREW Conn; Rect; Insert; C146 E; 10+PE Contacts; Screw Term; Heavymate; w/Wire Protect 10P MALE CONNECTOR WIREGUARD |
| Category |
Business
| Tradename | Heavy Mate | Other Names | C14610A0101021 |
| Product Category | Heavy Duty Power Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 15 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | Material Flammability Rating | UL94 V-0 |
Electrical
| Voltage Rating | 600V | Current Rating (Max) | 10A |
Mechanical
| Size | E10 | Color | Gray |
| Weight | 0.065 | Packaging | Bulk |
| Termination | Screw | Mounting Type | Panel Mount |
| Connector Type | Insert | Contact Finish | Silver |
| Number of Rows | :2 | Insert Material | :Signal |
| Contact Material | Brass | Housing Material | Polycarbonate (PC), Glass Filled |
| Termination Style | Screw | 1st Contact Gender | :Pin |
| Number of Contacts | 10Signal/1Ground | Contact Termination | :Screw |
| Number of Positions | 10+Ground | Shell Size - Insert | :E10 |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | Heavy-Duty Rectangular | Gender | RCP |
| Series | :Heavy Mate | For Use With/Related Products | :C146 Rectangular Connectors |
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
Documents & Media
Similar Parts
C146 10B010 102 1
Amphenol Tuchel
ヘビーデューティパワーコネクタ Insert 10+ female Heavy Mate SOCKET INSERT 10POS Heavy Duty Power Connectors Insert 10+ female Heavy Mate INSERT, FEMALE, SCREW, 500V, 10+PE connector component, c146e insert only, contacts included, 10 socket contact+ground 10P FEMALE CONNECTOR WIREGUARD

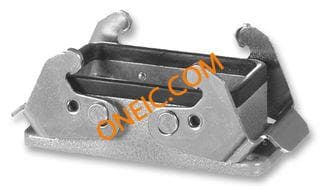

C146 10F010 000 1
