C091 31N012 200 2
| Manufacturer | |
| Description | Conn Circular F 12 POS Solder ST Panel Mount 12 Terminal 1 Port Circular DIN Connectors Female 12 Pin Front MT CONN FEMALE RCPT 12POS FRONT MT connector, circ din, female panel recept, front mt, 12 gold plated socket cont, ip67 Appliance socket C091D 12-pin Poles=12, C091 31N012 200 2, Amphenol |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 2 200 31N012 C091 U | Product Category | Circular DIN Connectors |
| Standard Package | Boxed | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | Approval Agency Marking | UL Recognized |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 150 V | Number of Poles | 12 |
| Voltage - Supply | DIN | Current Rating (Max) | 3 A |
| Current Rating - Appliance Inlet | 3 | Voltage - Protection Level (VP) (2416) | IP 67 |
Mechanical
| Packaging | Bulk | Cable Exit | Internal |
| Wire Gauge | 24 | Orientation | Keyed |
| Termination | Solder | Contact Type | Socket |
| Mounting Type | Panel Mount | Shell Plating | Nickel |
| Angle of Throw | Straight | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Fastening Type | Threaded |
| Housing Finish | Nickel | Package / Case | Metal |
| Connector Usage | Threaded | Locking Feature | M18 screw locking |
| Contact Material | CuZn+Au | Housing Material | Die Cast |
| Primary Material | DIN | Termination Style | Solder |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 12 |
| Dielectric Material | Thermoplastic | Number of Positions | 12 |
| Shell Size - Insert | DIN | 1st Connector Gender | Female |
| Shell Material, Finish | Die Cast, Nickel Plated | ||
Product Info
| Type | Circular | Design | Panel-mount female receptacle |
| Gender | RCP | Series | C 091 D |
| Features | Shielded | Manufacturer | C091-D Series |
| Product Type | Connectors | Connection Method | 0.25 |
| RF Family/Standard | C091D | ||
Environmental
| Seal Rating | IP 67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
Similar Parts

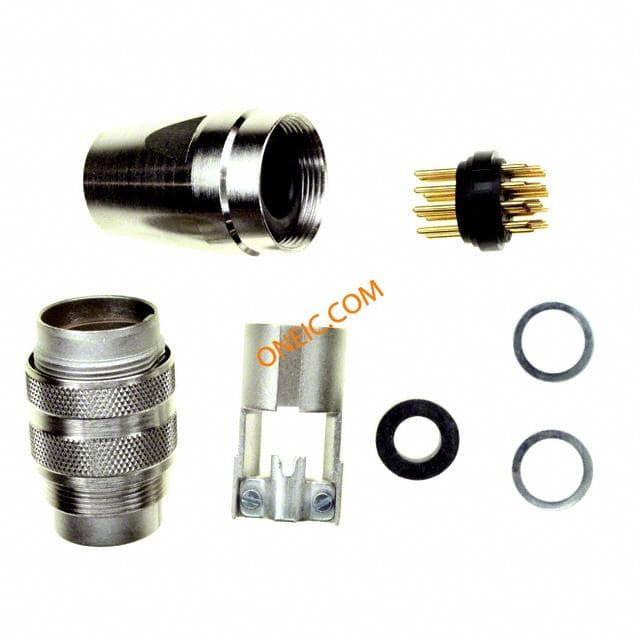

C091 31H012 200 2
amphenol
Conn Circular M 12 POS Solder ST Cable Mount 12 Terminal 1 Port CONN MALE 12POS CABLE STRGHT Circular DIN Connectors C091D ST CBL PLG 12P CONN MALE 12POS INLINE STRGHT connector, circular din, str male cable connector, 12 gold-pltd solder contact, ip67 Cable connector, 12-pin Poles=12, C091 31H012 200 2, Amphenol
$192.1394
Details

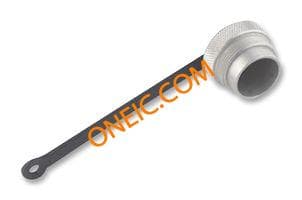

C091 00V000 130 2
