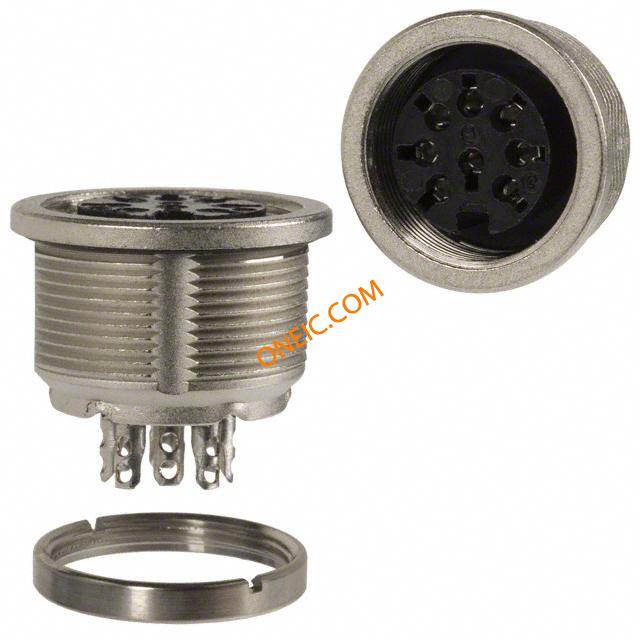

C091 31N008 100 2
| Manufacturer | |
| Description | Conn Circular F 8 POS Solder ST Panel Mount 8 Terminal 1 Port CONN RCPT 8POS FRONT MT SOLDER Circular DIN Connectors 8P DIN PANEL FEMALE CIRCULAR CONNECTOR RECEPTACLE 8POS PANEL connector, circ din, female panel recept, front mt, 8din silver plt socket cont, ip67 Connector: circular; Series: C091D; female; socket; silver plated Appliance socket C091D 8-pin Poles=8, C091 31N008 100 2, Amphenol |
| Category |
Business
| Part # Aliases | 100 2 31N008 34B7613 C091 U | Product Category | Circular DIN Connectors |
| Standard Package | Boxed | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366910 | Approval Agency Marking | UL Recognized |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 100V | Voltage - Supply | DIN |
| Current Rating (Max) | 5A | ||
Mechanical
| Weight | 0.009 | Diameter | 20 |
| Packaging | Bulk | Cable Exit | Yes |
| Wire Gauge | 20-26 | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Solder |
| Contact Type | 8Signal | Body Material | metal |
| Mounting Type | Panel Mount | Shell Plating | Nickel |
| Angle of Throw | Straight | Cable Diameter | 4 mm to 6 mm |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Silver |
| Fastening Type | Threaded | Housing Finish | Nickel |
| Mounting Style | Panel | Package / Case | Metal |
| Plating - Body | nickel | Connector Usage | Threaded |
| Insertion Angle | :- | Locking Feature | threaded joint, internal thread |
| Material - Body | :- | Panel Thickness | max 5mm |
| Housing Material | Die Cast | Length - Overall | 17.6 |
| Package Quantity | 25 | Primary Material | DIN |
| Connector - Cable | socket | Termination Style | Solder |
| 1st Contact Gender | F | Number of Contacts | 8 |
| Dielectric Material | Thermoplastic | Number of Positions | 8 |
| Shell Size - Insert | DIN (270 Degree) | Shell Material, Finish | Die Cast, Nickel Plated |
| Wire Gauge or Range - mm2 | 0.5mm2 | Contact Material - Plating | silver plated |
| 1st Connector Mounting Type | :Panel | 1st Connector Mounting Feature | DIN EN 60130-9 |
Product Info
| Spg | 25 | Type | Circular |
| Gender | RCP | Series | :C 091 D |
| Features | Shielded | Manufacturer | C091-D Series |
| Product Type | Connectors | Adapter Series | C091D |
| Number of Units | 1 | RF Family/Standard | C091D |
Environmental
| Seal Rating | IP 67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
Similar Parts
C091 11H008 001 2
amphenol
Conn Circular M 8 POS Crimp ST Cable Mount 8 Terminal 1 Port Circular DIN Connectors MALE CABLE CONNECTOR 8 WAY CONN PLUG 8POS CABLE PIN CRIMP
C091 31H008 101 2
amphenol
Conn Circular M 8 POS Solder ST Cable Mount 8 Terminal 1 Port Circular DIN Connectors STRAIGHT MALE 8P METAL 6-8MM CONN PLUG 8POS CABLE PIN CONNECTOR, DIN, AUDIO, 8WAY Conn; Circ; DIN; Plug; 8 Cnt; C091 D; Metal; Str; 6-8mm; Cable Dia; EMI; Solder; Silver

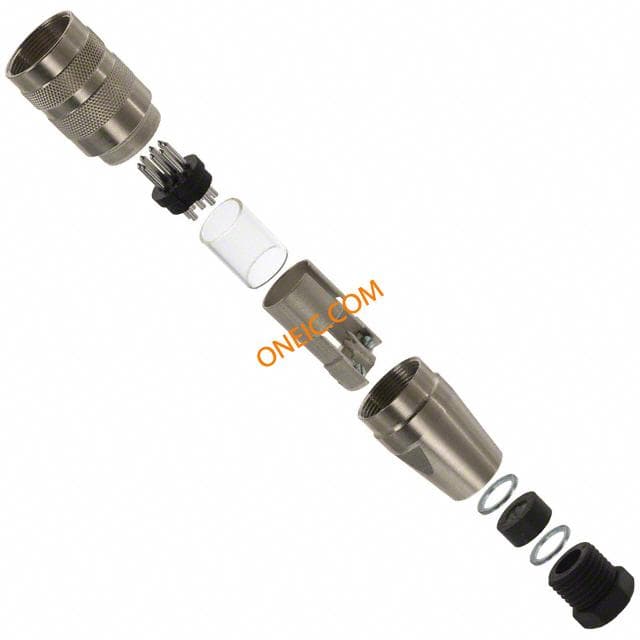

C091 31H008 100 2
