C016 10H017 003 1

Manufacturer	Amphenol Corporation
Description	Conn Circular M 18 POS Crimp ST Cable Mount 18 Terminal 1 Port Circular DIN Connectors MALE CABLE CONNECTOR 17+PE CONN PLUG 17+PE CABLE PIN CRIMP C016 10H017 003 1 Male Cable Connector 17+PE Male cable connector 17+PE, C016 10H017 003 1, Amphenol
Category	Connector SolutionsCircular ConnectorsStandard Circular Connectors

对参数有疑问？问 AI 助手

Business

Other Names	C01610H0170031	Part # Aliases	003 1 10H017 C016
Product Category	Circular DIN Connectors	Standard Package	Boxed

Compliance

RoHS

RoHS Compliant

Material Flammability Rating

UL 94 V-0

Electrical

Voltage Rating	100	Number of Poles	17+PE
Current Rating - Appliance Inlet	6	Voltage - Protection Level (VP) (2416)	IP 65

Mechanical

Packaging	Bulk	Orientation	Keyed
Shell Style	Plug	Termination	Crimp
Contact Size	1.5mm	Contact Type	Crimp
Mounting Type	Cable Mount	Cable End Type	10...12 mm
Connector Type	Plug for Male Contacts	Fastening Type	Bayonet Lock
Connector Style	short	Locking Feature	Bayonet
Housing Material	Polyamide (PA 66)	Termination Style	Crimp Connection
Color - Connectors	black	Number of Positions	18
Shell Size - Insert	1	1st Connector Gender	Male
Shell Material, Finish	Polyamide

Product Info

Note	Contacts Not Provided	Type	Circular
Gender	PL	Series	C16-3
Features	Cable Clamp	Product Type	Connectors

Environmental

Ingress Protection

IP65 - Dust Tight, Water Resistant

Operating Temperature

-40...+125 °C

Documents & Media

PDF Document

c16series3.pdf

PDF Document

C 16-3 Series Catalog

PDF Document

28_ecomate_052009_e.pdf

Similar Parts

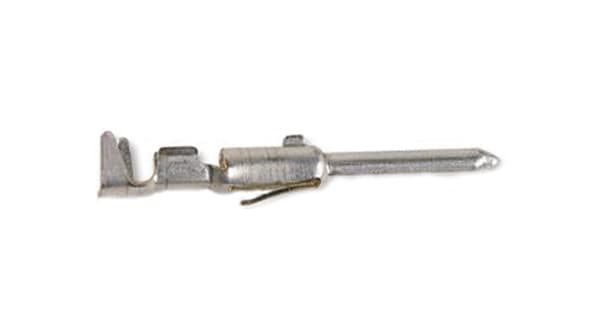

VN01 015 0047 1
