C016 10G014 000 1
| Manufacturer | |
| Description | Conn Circular F 15 POS Crimp ST Panel Mount 15 Terminal 1 Port CONN RCPT 14+PE PNL MNT SKT CRMP Circular DIN Connectors FEMALE RECEPTACLE CONNECTOR 14+PE connector, plastic circ, panel recept, front mount, for 14+ground crimp socket cont Female panel-mount receptacle 14+PE, C016 10G014 000 1, Amphenol |
| Category |
Business
| Other Names | C01610G0140001 | Part # Aliases | 000 1 10G014 246-7425 C016 |
| Product Category | Circular DIN Connectors | Standard Package | Boxed |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Approval Agency Marking | UL Recognized/CSA/VDE |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 400 V | Number of Poles | 14+PE |
| Current Rating (Max) | 18 A | Current Rating - Appliance Inlet | 3 x 16 A, 11 x 6 |
| Voltage - Protection Level (VP) (2416) | IP 65 | ||
Mechanical
| Packaging | Bulk | Shell Size | 1 |
| Wire Gauge | 26-14 | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Crimp |
| Contact Size | 1.5mm, 2.5mm | Contact Type | Crimp |
| Mounting Type | Panel Mount | Shell Plating | Polyamide |
| Angle of Throw | Straight | Connector Type | Receptacle for Female Contacts |
| Contact Finish | Silver | Fastening Type | Bayonet Lock |
| Mounting Style | Flange | Package / Case | Plastic |
| Connector Usage | Bayonet | Locking Feature | Bayonet |
| Housing Material | Polyamide | Primary Material | DIN |
| Termination Style | Crimp | Color - Connectors | black |
| Number of Contacts | 14 | Dielectric Material | Polyamide |
| Number of Positions | 15 | Shell Size - Insert | 1 |
| 1st Connector Gender | Female | Mounting Hole Diameter | 0.15 " |
| Shell Material, Finish | Polyamide | Contact Layout, Typical | 14 + 1 Ground (PE) |
Product Info
| Note | Contacts Not Provided | Type | Circular |
| Gender | RCP | Series | C16-3 |
| Manufacturer | C16-3 Series | Product Type | Connectors |
| Application Specifics | Commercial | ||
Environmental
| Seal Rating | IP 65 | Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Operating Temperature | -40...+125 °C | ||
Documents & Media
Similar Parts
C016 10H014 003 1
amphenol
Conn Circular M 15 POS Crimp ST Cable Mount 15 Terminal 1 Port Circular DIN Connectors MALE CABLE CONNECTOR 14+PE CONN PLUG 14+PE CABLE PIN CRIMP Male cable connector 14+PE, C016 10H014 003 1, Amphenol
VN02 015 0047 1
Amphenol Tuchel
ヘビーデューティパワーコネクタ 18-20 AWG;SILVER PLATED;SOCKET CONT CONTACT SKT CRIMP 18 AWG SLVR connector comp;crimp socket cont;silver pltd;for 0.50-1.50mm2(20-18awg) wire Heavy Duty Power Connectors 18-20 AWG;SILVER PLATED;SOCKET CONT connector comp, crimp socket cont, silverpltd, for 0.50-1.50mm2(20-18awg) wire Crimp contact Stamped, Female, VN02 015 0047 1, Amphenol
TN02 015 0047 1
Amphenol-Tuchel Electronics
CONTACT SKT CRIMP 18 AWG SLVR
HN02 015 0052 1
Amphenol-Tuchel Electronics
CONTACT SKT CRIMP 24-28 AWG SLVR
TN02 015 0046 2
Amphenol-Tuchel Electronics
CONTACT SKT CRIMP 20-22 AWG GOLD Female Contact
TN02 015 0047 2
Amphenol-Tuchel Electronics
CONTACT SKT CRIMP 18 AWG GOLD Female Contact
ZN02 015 0047 2
Amphenol-Tuchel Electronics
CONTACT SKT CRIMP 18 AWG GOLD
ZN02 015 0052 2
Amphenol-Tuchel Electronics
CONTACT SKT CRIMP 24-28 AWG GOLD
VN02 015 0052 1
Amphenol-Tuchel Electronics

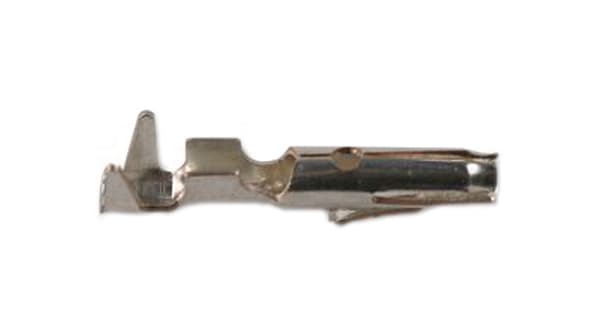

CONTACT SKT CRIMP 24-28 AWG SLVR Contact SKT Crimp ST Cable Mount Bag Crimp contact Stamped, Female, VN02 015 0052 1, Amphenol
