B1112A1-ND3G-3-75
| Manufacturer | |
| Description | BNC Angled crimp/solder Plug 75ohm PLUG, BNC, RIGHT ANGLE, 75R BNCANGLEDPLUG75OHM Plug; BNC; male; angled 90°; 75Ω; crimped; for cable; delrin Amphenol 直角 75Ω 电缆安装 BNC 连接器 插头, 压接 端接, RG59, RG59 A/B, RG62 A/B电缆, 镀镍本体 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | ||
Electrical
| VSWR | :1.05 | Frequency | 0 → 6GHz |
| Impedance | 75Ω | S/N Ratio | 1.15 |
| Voltage Rating | 500V | Frequency - Max | :1GHz |
| Contact Resistance | :1.5mohm | Insulation Resistance | :5000Mohm |
| Impedance - Unbalanced/Balanced | :RG140, RG210, RG59, RG59A, RG59B, RG62 | ||
Mechanical
| Weight | 0.02 | Cable Type | :- |
| Orientation | angled 90° | Termination | Crimp |
| Mounting Type | Right Angle | Connector Type | :BNC Coaxial |
| Contact Finish | Gold | Mounting Style | for cable |
| Plating - Body | :Nickel | Contact Material | Brass |
| Package Quantity | 48 | Connector - Cable | plug |
| Material - Insulation | :Brass | Center Contact Plating | :Gold |
| Supplier Device Package | :Right Angle Plug | Contact Material - Mating | :Phosphor Bronze |
| Contact Material - Plating | gold plated | 1st Connector Mounting Type | :Cable |
| Contact Finish - Post (Mating) | :Gold | ||
Product Info
| Spg | 48 | Gender | Male |
| Series | :- | Number of Units | 1 |
Similar Parts
2034
PALADIN TOOLS
CRIMP DIE SET
$156.5360
Details

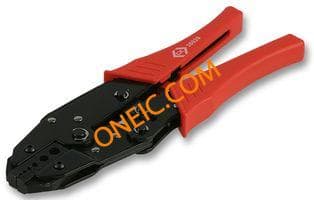

430026
