97-4106A-36-10S
| Manufacturer | |
| Description | Conn MIL-C-5015 Circular SKT 48 POS Crimp ST Cable Mount 48 Terminal 1 Port Circular MIL Spec Connector 48P Shell Size 36 Straight Plug MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN HSG PLUG 48POS STRGHT SKT connector;metal circ;str plug;size 36;for 48 #16 crimp socket cont;clear finish connector, metal circ, str plug, size 36, for 48 #16 crimp socket cont, clear finish |
| Category |
Business
| Other Names | 974106A3610S | Part # Aliases | U10-824076-10S |
| Standard Package | Bulk | ||
Compliance
| RoHS | No | MIL Type | MIL-DTL-5015 |
| Approval Agency Marking | UL/CSA | Material Flammability Rating | UL94-V0 |
Electrical
| Voltage Rating | 500/700 VAC/VDC | Current Rating (Max) | 13 A |
Mechanical
| Packaging | Bulk | Cable Exit | Solid |
| Shell Size | 36 | Wire Gauge | 16 |
| Orientation | N (Normal) | Shell Style | In-Line |
| Termination | Crimp | Contact Size | 16 |
| Contact Type | socket contacts | Mounting Type | Cable Mount |
| Shell Plating | Olive Drab Chromate over Cadmium | Angle of Throw | Straight |
| Connector Type | Amphenol 97 Series - Standard Cylindrical Connector - crimp type | Contact Finish | Silver |
| Fastening Type | Threaded | Housing Finish | Clear Cadmium |
| Mounting Style | Wire | Package / Case | Metal |
| Shell Material | Aluminum Alloy | Connector Usage | Threaded |
| Insertion Angle | 36-10 | Contact Material | Copper Alloy |
| Housing Material | Aluminum Alloy | Primary Material | 5015 Commercial |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Threaded | Number of Contacts | 48 |
| Number of Positions | 48 | Shell Size - Insert | 36-10 |
| Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated | Contact Layout, Typical | 48#16 |
Product Info
| Note | Contacts Not Provided | Type | MIL-C-5015 Circular |
| Class | A | Gender | PL |
| Series | 97 | Features | Rear Release |
| Manufacturer | 97 Series | Product Type | Plugs |
| Application Specifics | Commercial | ||
Documents & Media
Similar Parts

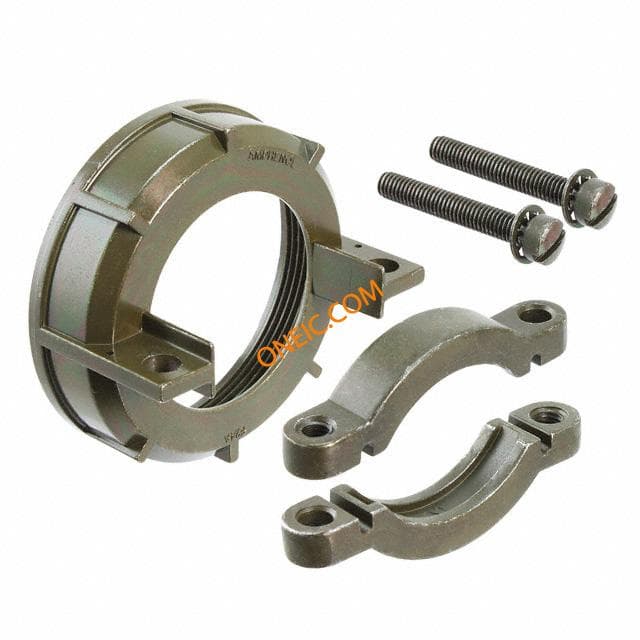

97-3057-1024
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 36 connector accessory;ms3057a cable clamp;connector size 36;olive drab finish Circular MIL Spec Strain Reliefs & Adapters Cable Clamp MS3057A Size 36 CIRCULAR CABLE CLAMP, SIZE 36 ZINC ALLOY CABLE CLAMP, SIZE 36 connector accessory, ms3057a cable clamp, connector size 36, olive drab finish

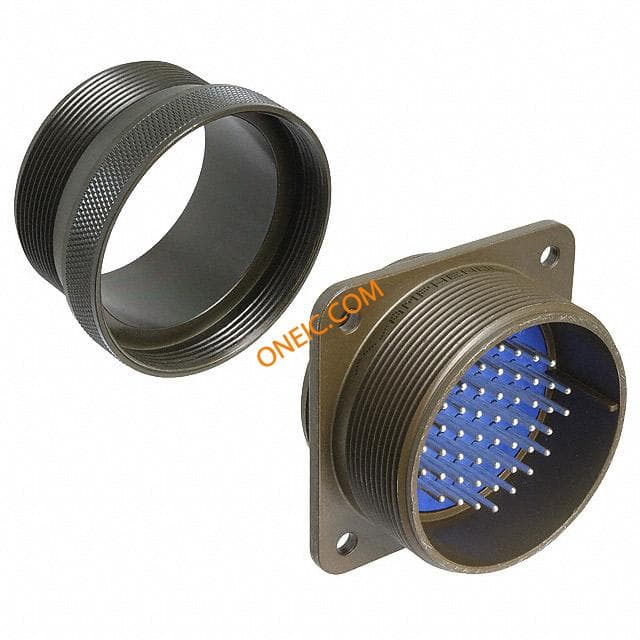

97-3100A-36-10P
amphenol
Conn MIL-C-5015 Circular PIN 48 POS Solder ST Wall Mount 48 Terminal 1 Port Circular MIL Spec Connector 48P Sz 36 Wall Mount Pin Recept Solder CONN RCPT 48POS WALL MNT PIN SLD connector;metal circ;wall recept;size 36;48 #16 solder pin contact;olive drab connector, metal circ, wall recept, size 36, 48 #16 solder pin contact, olive drab
97-3057-1024-1
amphenol
Connector Accessories Clamp/Bushing Zinc Die Cast Alloy/Rubber Olive Drab/Green Chromate Miscellaneous Connector Accessories CONN CABLE CLAMP SIZE 36 connector accessory;cable clamp with rubber bushing;size 36;olive drab Circular MIL Spec Strain Reliefs & Adapters Clamp with Bushing Size 36 CABLE CLAMP, SIZE 36 connector accessory, cable clamp with rubber bushing, size 36, olive drab
97-4102A-36-10P
amphenol
Conn MIL-C-5015 Circular PIN 48 POS Crimp ST Box Mount 48 Terminal 1 Port Circular MIL Spec Connector 48P Sz 36 Pin Crimp Box Mount Receptacle MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN HSG RCPT 48POS PNL MNT PIN connector;metal circ;box recept;size 36;for 48#16 crimp pin contact;clear finish connector, metal circ, box recept, size 36, for 48#16 crimp pin contact, clear finish
.JPG&w=3840&q=75)

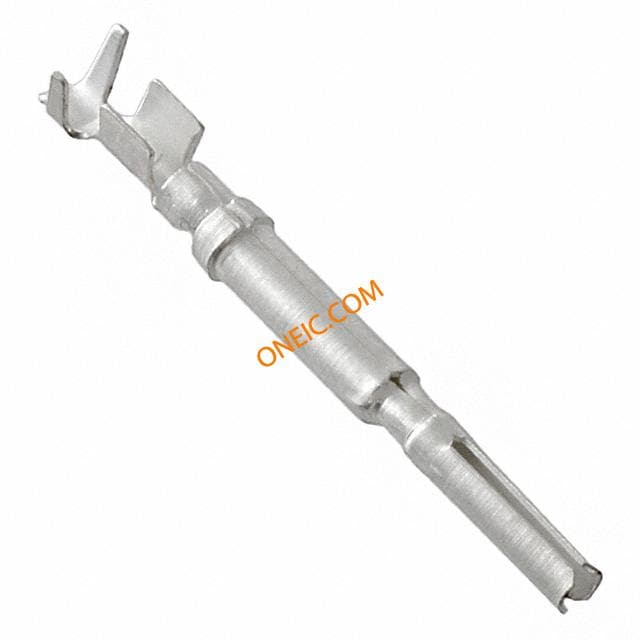

97-45-1622S-4(0920)
