97-4102A-18-4P
| Manufacturer | |
| Description | MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN HSG RCPT 4POS PNL MNT PIN connector;metal circ;box recept;size 18;for 4#16 crimp pin contact;clear finish Circular MIL Spec Connector 4P Size 18 Box MNT REC 5015 connector, metal circ, box recept, size 18, for 4#16 crimp pin contact, clear finish |
| Category |
Business
| Other Names | 974102A184P | Part # Aliases | 605-0511 605-3532 |
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS non-compliant | MIL Type | MIL-DTL-5015 |
| Approval Agency Marking | UL/CSA | Material Flammability Rating | UL94-V0 |
Electrical
| Voltage Rating | 900/1250 VAC/VDC | Current Rating (Max) | 13 A |
Mechanical
| Packaging | Bulk | Cable Exit | Solid |
| Shell Size | 18 | Wire Gauge | 16 |
| Orientation | N (Normal) | Shell Style | box mount receptable |
| Termination | Crimp | Contact Size | 16 |
| Contact Type | pin contacts | Mounting Type | Panel Mount, Flange |
| Shell Plating | Olive Drab Chromate over Cadmium | Angle of Throw | Straight |
| Connector Type | Amphenol 97 Series - Standard Cylindrical Connector - crimp type | Contact Finish | Silver |
| Fastening Type | Threaded | Housing Finish | Clear Cadmium |
| Mounting Style | Panel | Package / Case | Metal |
| Shell Material | solid backshell | Connector Usage | Threaded |
| Insertion Angle | 18-4 | Contact Material | Copper Alloy |
| Housing Material | Aluminum Alloy | Primary Material | 5015 Commercial |
| Termination Style | Crimp | 1st Contact Gender | Pin (Male) |
| Mating Orientation | Threaded | Number of Contacts | 4 |
| Number of Positions | 4 | Shell Size - Insert | 18-4 |
| Mounting Hole Diameter | 0.12 " | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
| Contact Layout, Typical | 4#16 | ||
Product Info
| Note | Contacts Not Provided | Type | Panel Socket |
| Class | A | Series | 97 |
| Features | Rear Release | Manufacturer | 97 Series |
| Product Type | Receptacles | Application Specifics | Commercial |
Documents & Media
Similar Parts
97-3106A-18-4S
amphenol
Conn MIL-C-5015 Circular SKT 4 POS Solder ST Cable Mount 4 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 4POS W/SOCKETS connector;metal circ;straight plug;size 18;4 #16 solder socket cont;olive drab Circular MIL Spec Connector 4P Strt Socket Plug Sz 18 Solder CIRCULAR CONNECTOR, PLUG, 18-4, CABLE connector, metal circ, straight plug, size18, 4 #16 solder socket cont, olive drab
97-3108B-18-4S
amphenol
Conn MIL-C-5015 Circular SKT 4 POS Solder RA Cable Mount 4 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG RT ANG 4POS W/SOCKETS connector;metal circ;rt angle plug;size 18;4 #16 solder socket cont;olive drab connector, metal circ, rt angle plug, size18, 4 #16 solder socket cont, olive drab
.JPG&w=3840&q=75)

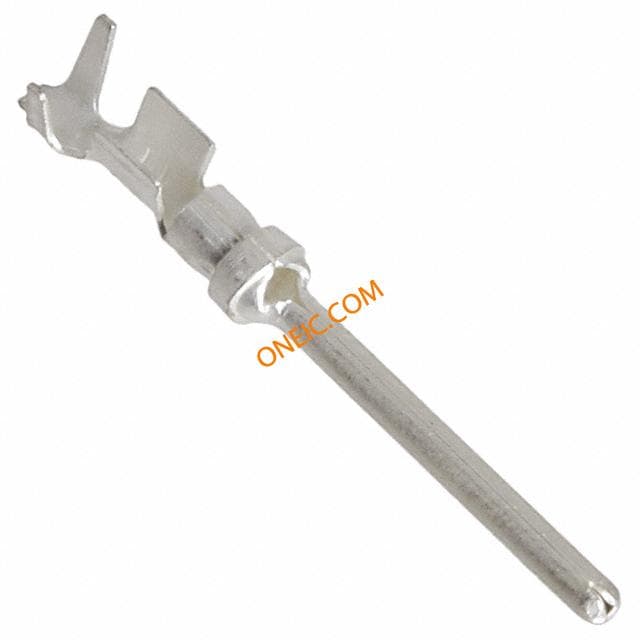

97-45-1622P-4(0920)
Amphenol Industrial Operations
CONTACT PIN CRIMP 16-22AWG SZ 16 connector comp;crimp pin contact;silver plated;size 16;for 16-22 awg wire connector comp, crimp pin contact, silverplated, size 16, for 16-22 awg wire
.JPG&w=3840&q=75)

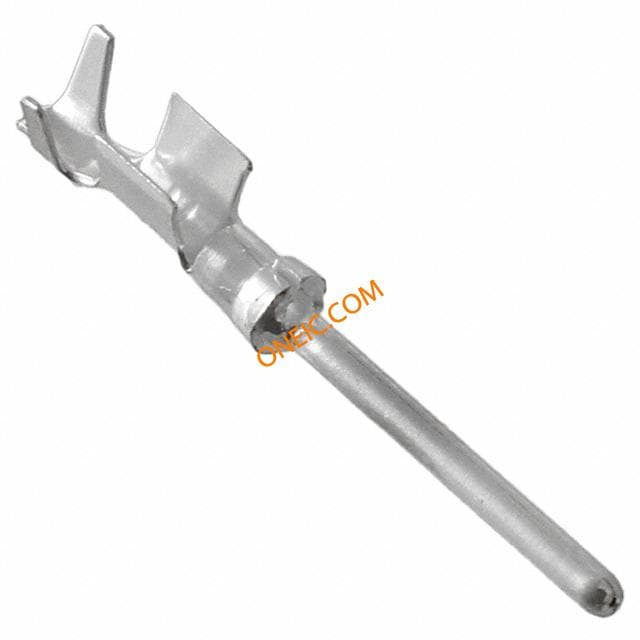

97-45-1418P-4(0920)
