点击放大查看

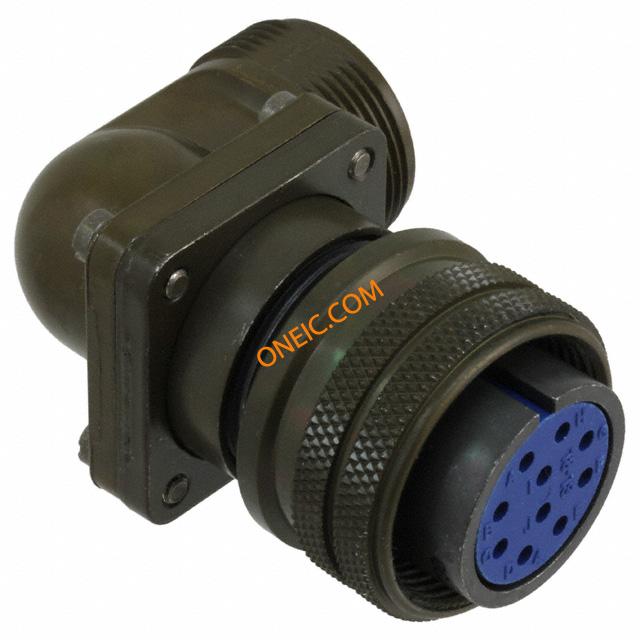

97-3108A-18-1S
| Manufacturer | |
| Description | Conn MIL-C-5015 Circular SKT 10 POS Solder RA Cable Mount 10 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 10POS RT ANG W/SKT connector;metal circ;rt angle plug;size 18;10 #16 solder socket cont;olive drab Circular MIL Spec Connector 10P Size 18 Solder R/A Socket Plug connector, metal circ, rt angle plug, size18, 10 #16 solder socket cont, olive drab For make up item see stock#: 605-6034 |
| Category |
Business
| Other Names | 973108A181S | Product Category | Circular MIL Spec Connector |
| Standard Package | Bulk | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL Type | MIL-DTL-5015 |
| Approval Agency Marking | UL/CSA | ||
Electrical
| Voltage Rating | 700 V, 250 V | Current Rating (Max) | 13A |
Mechanical
| Packaging | Bulk | Cable Exit | Solid |
| Shell Size | 18 | Wire Gauge | 16-22 |
| Orientation | N (Normal) | Shell Style | angle plug |
| Termination | Solder | Contact Type | socket contacts |
| Mounting Type | Cable Mount | Shell Plating | Olive Drab Chromate over Cadmium |
| Angle of Throw | Right | Connector Type | Amphenol 97 Series - Standard Cylindrical Connector - solder type |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Olive Drab Cadmium | Mounting Style | Free Hanging |
| Package / Case | Metal | Shell Material | solid backshell |
| Connector Usage | Threaded | Insertion Angle | 18-1 |
| Housing Material | Aluminum Alloy | Primary Material | 5015 Commercial |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 10 | Dielectric Material | Diallyl-Phthalate |
| Number of Positions | 10 | Shell Size - Insert | 18-1 |
| Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated | Contact Layout, Typical | 10#16 |
Product Info
| Type | MIL-C-5015 Circular | Class | A |
| Gender | PL | Series | 97 |
| Manufacturer | 97 Series | Product Type | Plugs |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
