97-3108A-14S-5S
| Manufacturer | |
| Description | Conn MIL-C-5015 Circular SKT 5 POS Solder RA Cable Mount 5 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 5POS R/A SKT SLD connector;metal circ;rt angle plug;size 14s;5#16 solder socket cont;olive drab Circular MIL Spec Connector 5P Size 14S Solder R/A Socket Plug connector, metal circ, rt angle plug, size14s, 5#16 solder socket cont, olive drab |
| Category |
Business
| Other Names | 973108A14S5S | Product Category | Circular MIL Spec Connector |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS non-compliant | MIL Type | MIL-DTL-5015 |
| Approval Agency Marking | UL/CSA | ||
Electrical
| Voltage Rating | 200VAC, 250VDC | Current Rating (Max) | 13A |
Mechanical
| Packaging | Bulk | Cable Exit | Solid |
| Shell Size | 14S | Wire Gauge | 16-22 |
| Orientation | N (Normal) | Shell Style | angle plug |
| Termination | Solder | Contact Type | socket contacts |
| Mounting Type | Cable Mount | Shell Plating | Olive Drab Chromate over Cadmium |
| Angle of Throw | Right | Connector Type | Amphenol 97 Series - Standard Cylindrical Connector - solder type |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Olive Drab Cadmium | Mounting Style | Free Hanging |
| Package / Case | Metal | Shell Material | solid backshell |
| Connector Usage | Threaded | Insertion Angle | 14S-5 |
| Housing Material | Aluminum Alloy | Primary Material | 5015 Commercial |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 5 | Dielectric Material | Diallyl-Phthalate |
| Number of Positions | 5 | Shell Size - Insert | 14S-5 |
| Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated | Contact Layout, Typical | 5#16 |
Product Info
| Type | MIL-C-5015 Circular | Class | A |
| Gender | PL | Series | 97 |
| Manufacturer | 97 Series | Product Type | Plugs |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts

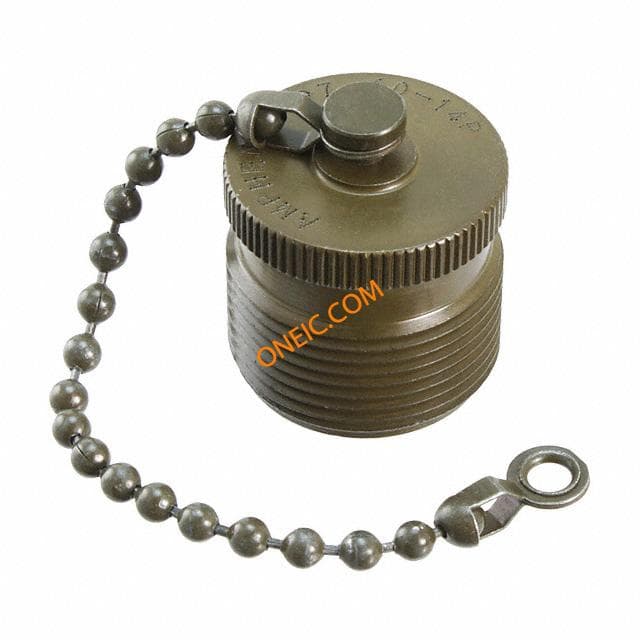

97-60-14P
