97-3106A-28-9S
| Manufacturer | |
| Description | Conn MIL-C-5015 Circular SKT 12 POS Solder ST Cable Mount 12 Terminal 1 Port Circular MIL Spec Connector 12P Strt Socket Plug Sz 28 Solder MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 12POS STRGHT SKT SLD connector;metal circ;str plug;size 28;6#12 & 6#16 solder socket cont;olive drab connector, metal circ, str plug, size 28, 6#12 & 6#16 solder socket cont, olive drab |
| Category |
Business
| Other Names | 973106A289S | Product Category | Circular MIL Spec Connector |
| Standard Package | Bulk | ||
Compliance
| RoHS | No | MIL Type | MIL-DTL-5015 |
| Approval Agency Marking | UL/CSA | ||
Electrical
| Voltage Rating | 900VAC, 1250VDC | Current Rating (Max) | 13A, 23A |
Mechanical
| Packaging | Bulk | Cable Exit | Solid |
| Shell Size | 28 | Wire Gauge | #12, #16 |
| Orientation | N (Normal) | Shell Style | Potting |
| Termination | Solder | Contact Type | socket contacts |
| Mounting Type | Cable Mount | Shell Plating | Olive Drab Chromate over Cadmium |
| Angle of Throw | Straight | Connector Type | Amphenol 97 Series - Standard Cylindrical Connector - solder type |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Olive Drab Cadmium | Mounting Style | Wire |
| Package / Case | Metal | Shell Material | Aluminum Alloy |
| Connector Usage | Threaded | Insertion Angle | 28-9 |
| Contact Material | Copper Alloy | Housing Material | Aluminum Alloy |
| Primary Material | 5015 Commercial | Termination Style | Solder |
| 1st Contact Gender | Socket (Female) | Mating Orientation | Threaded |
| Number of Contacts | 12 | Dielectric Material | Diallyl-Phthalate |
| Number of Positions | 12 | Shell Size - Insert | 28-9 |
| Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated | Contact Layout, Typical | 6#12, 6#16 |
Product Info
| Type | MIL-C-5015 Circular | Class | A |
| Gender | PL | Series | 97 |
| Manufacturer | 97 Series | Product Type | Plugs |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts
97-3057-1016
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 24, 28 connector accessory;ms3057a cable clamp;connector sizes 24;28;olive drab finish Circular MIL Spec Strain Reliefs & Adapters Cable Clamp MS3057A Size 24, 28 CABLE CLAMP, SIZE 24/28, DIECAST ZINC CABLE CLAMP, SIZE 24/28, ZINC ALLOY CABLE CLAMP, SIZE 24, 28 connector accessory, ms3057a cable clamp, connector sizes 24, 28, olive drab finish
97-3057-16
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate Circular MIL Spec Strain Reliefs & Adapters Cable Clamp AN3057 Shell Size 24,28 CONN CABLE CLAMP SIZE 24, 28 connector accessory;an3057 cable clamp;connector size 24;28;olive drab finish CABLE CLAMP, SIZE 24/28, DIECAST ZINC CABLE CLAMP, SIZE 24/28, ZINC ALLOY connector accessory, an3057 cable clamp, connector size 24, 28, olive drab finish Amphenol 97 系列 尺寸24, 28 电缆夹, 使用于带护套电缆，带管道保护的电线
.jpg&w=3840&q=75)

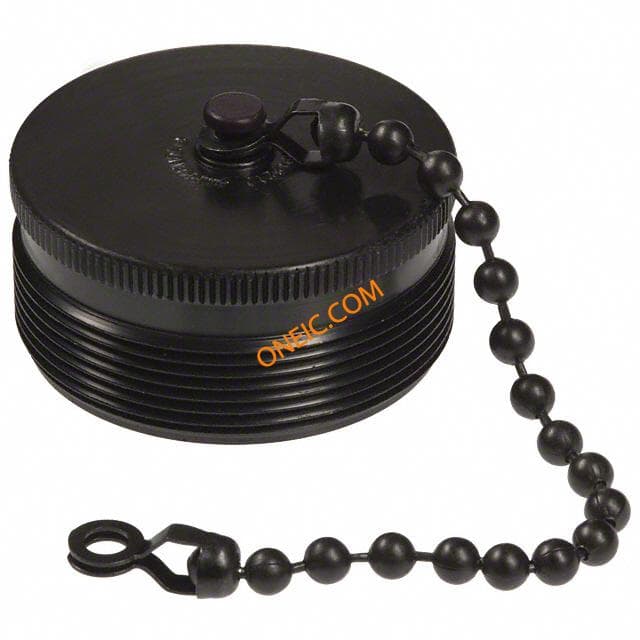

97-60-28P
