97-3106A-22-19S
| Manufacturer | |
| Description | Conn MIL-C-5015 Circular SKT 14 POS Solder ST Cable Mount 14 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 14POS W/SOCKETS connector;metal circ;straight plug;size 22;14 #16 solder socket cont;olive drab CIRCULAR CONNECTOR connector, metal circ, straight plug, size22, 14 #16 solder socket cont, olive drab |
| Category |
Business
| Other Names | 10-820072-19S | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Tariff No | 85369010 |
| Approval Agency Marking | UL/CSA | ||
Electrical
| Voltage Rating | 500VAC, 700VDC | Current Rating (Max) | 13A |
Mechanical
| Weight | 0.077 | Packaging | Bulk |
| Cable Exit | Solid | Shell Size | 22 |
| Wire Gauge | 16 | Orientation | N (Normal) |
| Shell Style | straight plug | Termination | Solder |
| Contact Type | socket contacts | Mounting Type | Cable Mount |
| Angle of Throw | Straight | Connector Type | Amphenol 97 Series - Standard Cylindrical Connector - solder type |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Olive Drab Cadmium | Package / Case | Metal |
| Shell Material | solid backshell | Connector Usage | Threaded |
| Insertion Angle | 22-19 | Material - Body | :Aluminium |
| Contact Material | :Copper | Housing Material | Aluminum Alloy |
| Primary Material | 5015 Commercial | 1st Contact Gender | :Socket |
| Number of Contacts | :14 | Contact Termination | :Solder |
| Dielectric Material | Diallyl-Phthalate | Number of Positions | 14 |
| Shell Size - Insert | 22-19 | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
| Contact Layout, Typical | 14#16 | 1st Connector Mounting Type | :Cable |
Product Info
| Type | MIL-C-5015 Circular | Class | A |
| Gender | PL | Series | :97-3106A |
| Manufacturer | 97 Series | Application Specifics | Commercial |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts
97-3057-12
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 20, 22 connector accessory;an3057 cable clamp;connector sizes 20;22;olive drab finish Circular MIL Spec Strain Reliefs & Adapters Cable Clamp AN3057 Shell Size 20,22 CABLE CLAMP, SIZE 20/22, ZINC ALLOY CABLE CLAMP, SIZE 20/22, DIECAST ZINC connector accessory, an3057 cable clamp, connector sizes 20, 22, olive drab finish Amphenol 97 系列 尺寸20, 22 电缆夹, 使用于带护套电缆，带管道保护的电线
97-3057-12-6
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 20, 22 connector accessory;an3057 cable clamp;step down;conn size 20;22;olive drab fin Circular MIL Spec Strain Reliefs & Adapters CABLE CLAMP 1/2 CABLE CLAMP, SIZE 20/22, DIECAST ZINC CABLE CLAMP, SIZE 20/22, ZINC ALLOY CABLE CLAMP, SIZE 20, 22 connector accessory, an3057 cable clamp, step down, conn size 20, 22, olive drab fin Amphenol 97 系列 尺寸20, 22 电缆夹, 使用于带护套电缆，带管道保护的电线
97-60-22P
amphenol

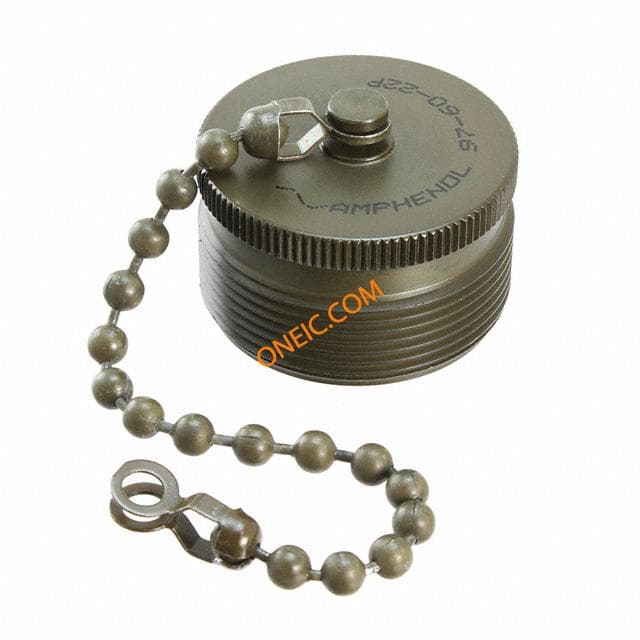

Connector Accessories Metal Protection Cap Bead Chain For Plug CONN CAP FOR SIZE 22 PLUG Cable mount plug & skt dust cap,Size 22 Circular MIL Spec Tools, Hardware & Accessories PLUG CAP 22 connector accessory, metal prot cap w/bead chain, for size 22 plugs, olive drab Amphenol 97 系列 MIL-DTL-5015 插座 IP66 防尘盖, 尺寸22P, 橄榄镉表面
