97-3106A-20-7S
| Manufacturer | |
| Description | Conn MIL-C-5015 Circular SKT 8 POS Solder ST Cable Mount 8 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 8POS W/SOCKETS connector;metal circ;straight plug;size 20;8 #16 solder socket cont;olive drab connector, metal circ, straight plug, size20, 8 #16 solder socket cont, olive drab |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Approval Agency Marking | UL/CSA |
Electrical
| Voltage Rating | 900/1250, 500/700 VAC/VDC | Current Rating (Max) | 13A |
Mechanical
| Packaging | Bulk | Cable Exit | Solid |
| Shell Size | 20 | Wire Gauge | 16 |
| Orientation | N (Normal) | Shell Style | straight plug |
| Termination | Solder | Contact Type | socket contacts |
| Mounting Type | Cable Mount | Angle of Throw | Straight |
| Connector Type | Amphenol 97 Series - Standard Cylindrical Connector - solder type | Contact Finish | Silver |
| Fastening Type | Threaded | Housing Finish | Olive Drab Cadmium |
| Package / Case | Metal | Shell Material | solid backshell |
| Connector Usage | Threaded | Insertion Angle | 20-7 |
| Housing Material | Aluminum Alloy | Primary Material | 5015 Commercial |
| Number of Contacts | 8 | Dielectric Material | Diallyl-Phthalate |
| Number of Positions | 8 | Shell Size - Insert | 20-7 |
| Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated | Contact Layout, Typical | 8#16 |
Product Info
| Type | MIL-C-5015 Circular | Class | A |
| Gender | PL | Manufacturer | 97 Series |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Similar Parts
97-3057-12
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 20, 22 connector accessory;an3057 cable clamp;connector sizes 20;22;olive drab finish Circular MIL Spec Strain Reliefs & Adapters Cable Clamp AN3057 Shell Size 20,22 CABLE CLAMP, SIZE 20/22, ZINC ALLOY CABLE CLAMP, SIZE 20/22, DIECAST ZINC connector accessory, an3057 cable clamp, connector sizes 20, 22, olive drab finish Amphenol 97 系列 尺寸20, 22 电缆夹, 使用于带护套电缆，带管道保护的电线
97-3057-12-6
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 20, 22 connector accessory;an3057 cable clamp;step down;conn size 20;22;olive drab fin Circular MIL Spec Strain Reliefs & Adapters CABLE CLAMP 1/2 CABLE CLAMP, SIZE 20/22, DIECAST ZINC CABLE CLAMP, SIZE 20/22, ZINC ALLOY CABLE CLAMP, SIZE 20, 22 connector accessory, an3057 cable clamp, step down, conn size 20, 22, olive drab fin Amphenol 97 系列 尺寸20, 22 电缆夹, 使用于带护套电缆，带管道保护的电线
97-3057-1012
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 20, 22 connector accessory;ms3057a cable clamp;connector sizes 20;22;olive drab finish Circular MIL Spec Strain Reliefs & Adapters Cable Clamp MS3057A Size 20, 22 CABLE GLAND, SHELL SIZE 20/22 connector accessory, ms3057a cable clamp, connector sizes 20, 22, olive drab finish

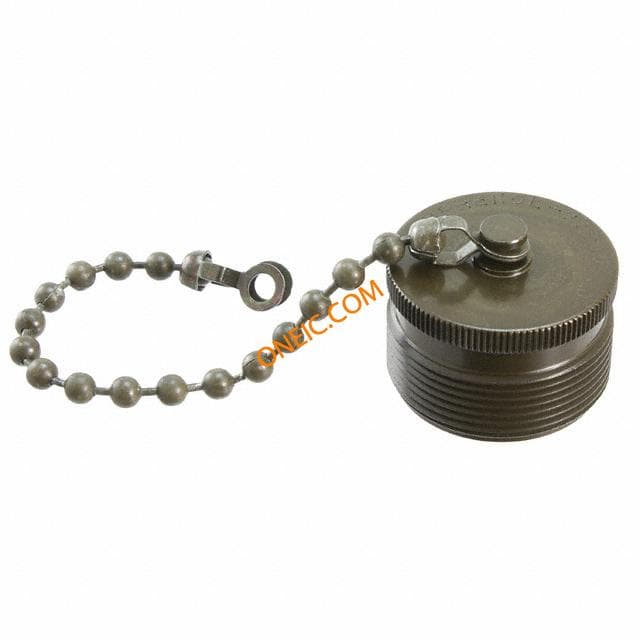

97-60-20P
amphenol
Connector Accessories Metal Protection Cap Bead Chain For Plug CONN CAP FOR SIZE 20 PLUG Cable mount plug & skt dust cap,Size 20 Circular MIL Spec Tools, Hardware & Accessories PLUG CAP 20 connector accessory, metal prot cap w/bead chain, for size 20 plugs, olive drab Amphenol 97 系列 MIL-DTL-5015 插座 IP66 防尘盖, 尺寸20P, 橄榄镉表面
97-3057-1012-1
amphenol
Connector Accessories Clamp/Bushing Zinc Die Cast Alloy/Rubber Olive Drab/Green Chromate Miscellaneous Connector Accessories CONN CABLE CLAMP SIZE 20, 22 Strt multipole cable clamp,Size 20,22 Circular MIL Spec Strain Reliefs & Adapters Clamp with Bushing Size 20, 22 CABLE CLAMP, SIZE 20/22, ZINC ALLOY CLAMP & BUSH, SIZE 22 connector accessory, cable clamp with rubber bushing, size 20, 22, olive drab Amphenol 97 系列 橄榄色 铝 电缆夹, 19.05mm 捆束直径
97-3102A-20-7P
amphenol
Conn MIL-C-5015 Circular PIN 8 POS Solder ST Box Mount 8 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RECEPT BOX MNT 8POS W/PINS connector;metal circ;box recept;size 20;8 #16 solder pin contact;olive drab CIRCULAR CONN, RECPT, SIZE 20, 8POS, BOX connector, metal circ, box recept, size 20, 8 #16 solder pin contact, olive drab
