97-3106A-16S-8P
| Manufacturer | |
| Description | Conn MIL-C-5015 Circular PIN 5 POS Solder ST Cable Mount 5 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 5POS W/PINS connector;metal circ;straight plug;size 16s;5 #16 solder pin contact;olive drab CIRCULAR CONNECTOR connector, metal circ, straight plug, size16s, 5 #16 solder pin contact, olive drab |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Tariff No | 85369010 |
| Approval Agency Marking | UL/CSA | ||
Electrical
| Voltage Rating | 500VAC, 700VDC | Current Rating (Max) | 13A |
Mechanical
| Weight | 0.027 | Packaging | Bulk |
| Cable Exit | Solid | Shell Size | 16S |
| Wire Gauge | 16 | Orientation | N (Normal) |
| Shell Style | straight plug | Termination | Solder |
| Contact Type | pin contacts | Mounting Type | Cable Mount |
| Angle of Throw | Straight | Connector Type | Amphenol 97 Series - Standard Cylindrical Connector - solder type |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Olive Drab Cadmium | Package / Case | Metal |
| Shell Material | solid backshell | Connector Usage | Threaded |
| Insertion Angle | 16S-8 | Material - Body | :Aluminium |
| Contact Material | :Copper | Housing Material | Aluminum Alloy |
| Primary Material | 5015 Commercial | 1st Contact Gender | :Pin |
| Number of Contacts | :5 | Contact Termination | :Solder |
| Dielectric Material | Diallyl-Phthalate | Number of Positions | 5 |
| Shell Size - Insert | 16S-8 | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
| Contact Layout, Typical | 5#16 | 1st Connector Mounting Type | :Cable |
Product Info
| Type | MIL-C-5015 Circular | Class | A |
| Gender | PL | Series | :97-3106A |
| Manufacturer | 97 Series | Application Specifics | Commercial |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts

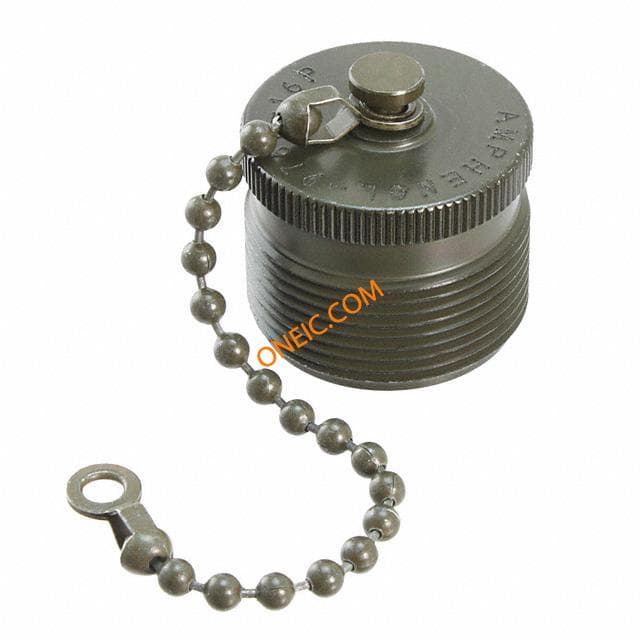

97-60-16P
