97-3106A-10SL-4S
| Manufacturer | |
| Description | Conn MIL-C-5015 Circular SKT 2 POS Solder ST Cable Mount 2 Terminal 1 Port CONN PLUG 2POS W/SOCKETS connector;metal circ;str plug;solid bkshl;size 10sl;2#16 solder socket;olive CIRCULAR, PLUG, 10SL-4, 2 POS, CABLE connector, metal circ, str plug, solid bkshl, size 10sl, 2#16 solder socket, olive Amphenol 2路 连接器 插头 , 外壳尺寸10SL |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | EU RoHS | Not Compliant |
| Tariff No | 85369010 | Approval Agency Marking | UL/CSA |
Electrical
| Voltage Rating | 500VAC, 700VDC | Current Rating (Max) | 13A |
Mechanical
| Weight | 0.014 | Diameter | 22.23 |
| Packaging | Bulk | Cable Exit | No |
| Shell Size | 10SL | Wire Gauge | 16 |
| Orientation | N (Normal) | Termination | Solder |
| Contact Type | 2Signal | Mounting Type | Cable Mount |
| Shell Plating | Cadmium | Angle of Throw | Straight |
| Connector Type | Plug, Female Sockets | Contact Finish | Silver |
| Fastening Type | Threaded | Housing Finish | Olive Drab Cadmium |
| Package / Case | Metal | Connector Usage | Threaded |
| Insertion Angle | :10SL-4 | Material - Body | :Aluminium |
| Contact Material | :Zinc | Housing Material | Aluminum Alloy |
| Length - Overall | 34.93 | Primary Material | 5015 Commercial |
| 1st Contact Gender | SKT | Number of Contacts | 2 |
| Contact Termination | :Solder | Dielectric Material | Diallyl-Phthalate |
| Number of Positions | 2 | Shell Size - Insert | 10SL-4 |
| Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated | Contact Layout, Typical | 2#16 |
| 1st Connector Mounting Type | :Cable | Shell Size - Insert (Convert To) | 10SL-4 |
Product Info
| Type | MIL-C-5015 Circular | Class | A |
| Gender | PL | Series | :97 |
| Manufacturer | 97 Series | Application Specifics | Commercial |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts

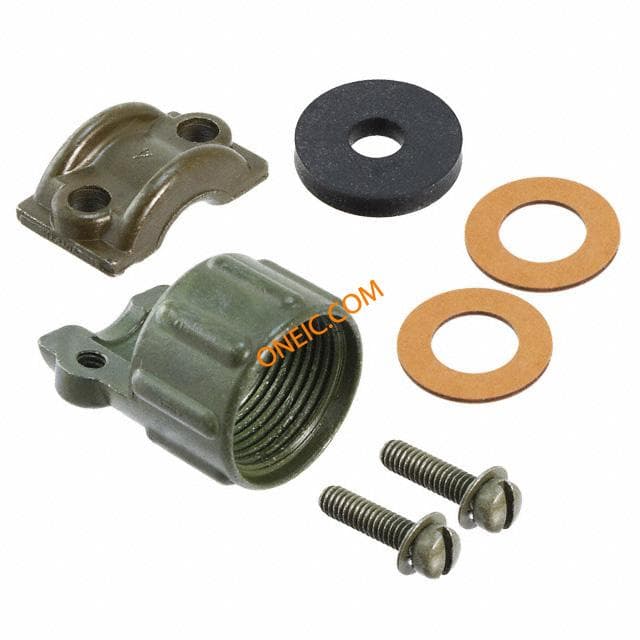

97-3057-4
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 10SL, 12S connector accessory;an3057 cable clamp;for connector size 10sl;12;12s;olive drab Circular MIL Spec Strain Reliefs & Adapters Cable Clamp AN3059 Shell Size 10SL, 12S CABLE GLAND, CLAMP 97 SERIES connector accessory, an3057 cable clamp, for connector size 10sl, 12, 12s, olive drab
97-3057-1004
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 10SL, 12S connector accessory;ms3057a cable clamp;connector size 10sl;12;12s;olive drab Circular MIL Spec Strain Reliefs & Adapters Cable Clamp MS3057A Size 10SL, 12S CABLE GLAND, SHELL SIZE 10 CABLE CLAMP, SIZE 10SL, 12S connector accessory, ms3057a cable clamp, connector size 10sl, 12, 12s, olive drab Amphenol 97 系列 尺寸10SL, 12S 电缆夹, 使用于带护套电缆，带管道保护的电线

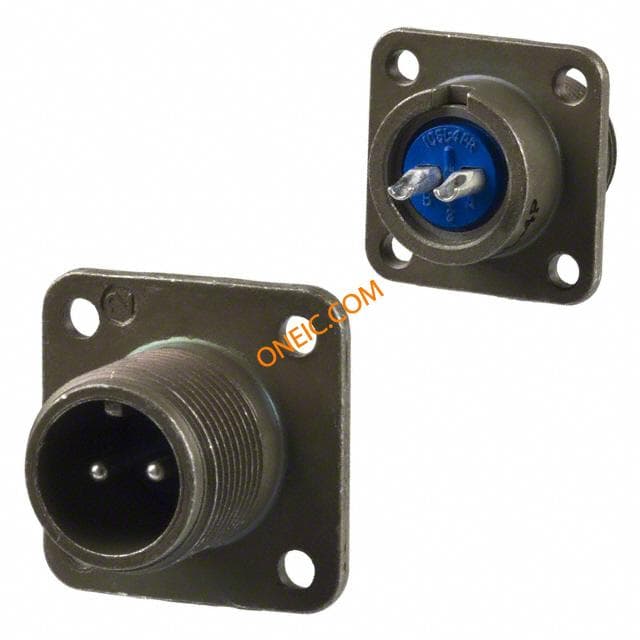

97-3102A-10SL-4P
