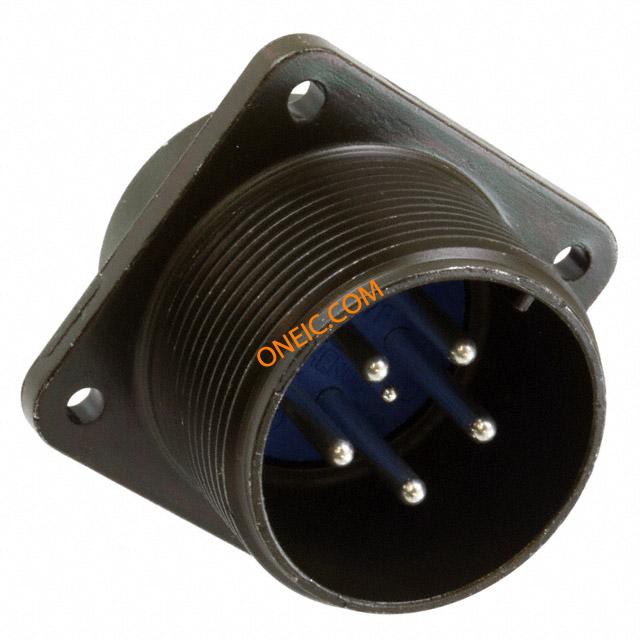

97-3102A-20-17P
| Manufacturer | |
| Description | Conn MIL-C-5015 Circular PIN 6 POS Solder ST Box Mount 6 Terminal 1 Port Circular MIL Spec Connector 6P Sz 20 Box Mount Pin Recept Solder CONN RCPT 6POS BOX MNT PIN SLD connector;metal circ;box recept;size 20;5#12 & 1#16 solder pin cont;olive drab connector, metal circ, box recept, size 20, 5#12 & 1#16 solder pin cont, olive drab |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 973102A2017P | Product Category | Circular MIL Spec Connector |
| Standard Package | Bulk | ||
Compliance
| RoHS | No | MIL Type | MIL-DTL-5015 |
| Approval Agency Marking | UL/CSA | ||
Electrical
| Voltage Rating | 700 V | Current Rating (Max) | 23 A, 13 A |
Mechanical
| Packaging | Bulk | Cable Exit | Solid |
| Shell Size | 20 | Wire Gauge | 12-14, 16-22 |
| Orientation | N (Normal) | Shell Style | Box Mount |
| Termination | Solder | Contact Type | Pin |
| Mounting Type | Box Mount | Shell Plating | Olive Drab Chromate over Cadmium |
| Angle of Throw | Straight | Connector Type | Receptacle, Male Pins |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Olive Drab Cadmium | Mounting Style | Panel |
| Package / Case | Metal | Shell Material | Aluminum Alloy |
| Connector Usage | Threaded | Insertion Angle | 20-17 |
| Housing Material | Aluminum Alloy | Primary Material | 5015 Commercial |
| Termination Style | Solder | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 6 | Dielectric Material | Diallyl-Phthalate |
| Number of Positions | 6 | Shell Size - Insert | 20-17 |
| Mounting Hole Diameter | 0.12 " | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
| Contact Layout, Typical | 5#12, 1#16 | ||
Product Info
| Type | MIL-C-5015 Circular | Class | A |
| Gender | RCP | Series | 97 |
| Manufacturer | 97 Series | Product Type | Receptacles |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
