97-3102A-18-8S
| Manufacturer | |
| Description | Conn MIL-C-5015 Circular SKT 8 POS Solder ST Box Mount 8 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RECEPT BOX MNT 8POS W/SOCK connector;metal circ;box recept;size 18;1#12 & 7#16 solder socket contact;olive connector, metal circ, box recept, size 18, 1#12 & 7#16 solder socket contact, olive Connector: military; socket; female; PIN:8; threaded joint |
| Category |
Business
| Other Names | 10-820050-08S | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Rad Hardened | No |
| Approval Agency Marking | UL/CSA | ||
Electrical
| Voltage Rating | 500VAC, 700VDC | Current Rating (Max) | 13A, 23A |
Mechanical
| Depth | 34.93 mm | Height | 34.93 mm |
| Weight | 0.05 kg | Packaging | Bulk |
| Cable Exit | No | Shell Size | 18 |
| Wire Gauge | #12, #16 | Orientation | N (Normal) |
| Shell Style | box mount receptable | Termination | Solder |
| Contact Form | (1/7)Signal | Contact Type | socket contacts |
| Mounting Type | Box Mount | Shell Plating | Olive Drab Cadmium |
| Angle of Throw | Straight | Connector Type | Amphenol 97 Series - Standard Cylindrical Connector - solder type |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Olive Drab Cadmium | Mounting Style | Box |
| Package / Case | Metal | Shell Material | solid backshell |
| Connector Usage | Threaded | Insertion Angle | 18-8 |
| Locking Feature | threaded joint | Housing Material | Aluminum Alloy |
| Length - Overall | 34.92 mm | Primary Material | 5015 Commercial |
| Connector - Cable | socket | 1st Contact Gender | SKT |
| Color - Connectors | grey-olive | Number of Contacts | 8 POS |
| Dielectric Material | Diallyl-Phthalate | Number of Positions | 8 |
| Shell Size - Insert | 18-8 | Mounting Hole Diameter | 0.12 " |
| Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated | Contact Layout, Typical | 1#12, 7#16 |
| Material - Housing & Prism | aluminium | Shell Size - Insert (Convert To) | 18-8 |
Product Info
| Type | MIL-C-5015 Circular | Class | A |
| Gender | RCP | Manufacturer | 97 Series |
| Number of Units | 1 | RF Family/Standard | 97 |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Similar Parts
97-3106A-18-8P
amphenol
Conn MIL-C-5015 Circular PIN 8 POS Solder ST Cable Mount 8 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 8POS W/PINS connector;metal circ;str plug;size 18;1#12 & 7#16 solder pin contact;olive drab CIRCULAR CONNECTOR PLUG, SIZE 18, 8POS, CABLE connector, metal circ, str plug, size 18, 1#12 & 7#16 solder pin contact, olive drab
97-3108B-18-8P
amphenol
Conn MIL-C-5015 Circular PIN 8 POS Solder RA Cable Mount 8 Terminal 1 Port CONN PLUG RT ANG 8POS W/PINS connector;metal circ;rt angle plug;size 18;1#12;7#16 solder pin cont;olive drab connector, metal circ, rt angle plug, size18, 1#12, 7#16 solder pin cont, olive drab
97-60-18
amphenol
Connector Accessories Metal Protection Cap Bead Chain For Receptacle CONN CAP FOR SIZE 18 RCPT Chassis mount plug&skt dust cap,Size 18 Circular MIL Spec Tools, Hardware & Accessories RECPT. CAP 18 connector accessory, metal prot cap w/bead chain, for size 18 recept, olive drab Amphenol 97 系列 MIL-DTL-5015 插头 IP66 防尘盖, 尺寸18, 橄榄镉表面

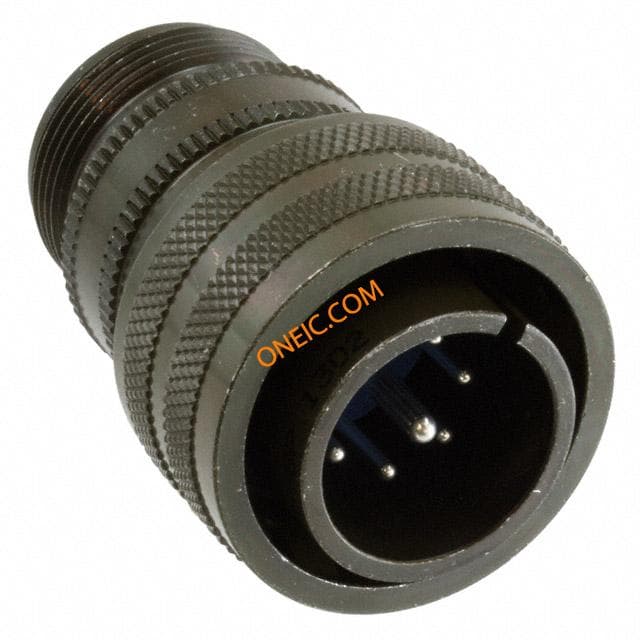

97-3107A-18-8P
