97-3102A-18-8P
| Manufacturer | |
| Description | Conn MIL-C-5015 Circular PIN 8 POS Solder ST Box Mount 8 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RECEPT BOX MNT 8POS W/PINS connector;metal circ;box recept;size 18;1#12 & 7#16 solder pin cont;olive drab connector, metal circ, box recept, size 18, 1#12 & 7#16 solder pin cont, olive drab |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Approval Agency Marking | UL/CSA |
Electrical
| Voltage Rating | 500VAC, 700VDC | Current Rating (Max) | 13A, 23A |
Mechanical
| Packaging | Bulk | Cable Exit | Solid |
| Shell Size | 18 | Wire Gauge | #12, #16 |
| Orientation | N (Normal) | Shell Style | box mount receptable |
| Termination | Solder | Contact Type | pin contacts |
| Mounting Type | Box Mount | Angle of Throw | Straight |
| Connector Type | Amphenol 97 Series - Standard Cylindrical Connector - solder type | Contact Finish | Silver |
| Fastening Type | Threaded | Housing Finish | Olive Drab Cadmium |
| Package / Case | Metal | Shell Material | solid backshell |
| Connector Usage | Threaded | Insertion Angle | 18-8 |
| Housing Material | Aluminum Alloy | Primary Material | 5015 Commercial |
| Number of Contacts | 8 | Dielectric Material | Diallyl-Phthalate |
| Number of Positions | 8 | Shell Size - Insert | 18-8 |
| Mounting Hole Diameter | 0.12 " | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
| Contact Layout, Typical | 1#12, 7#16 | ||
Product Info
| Type | MIL-C-5015 Circular | Class | A |
| Gender | RCP | Manufacturer | 97 Series |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Similar Parts

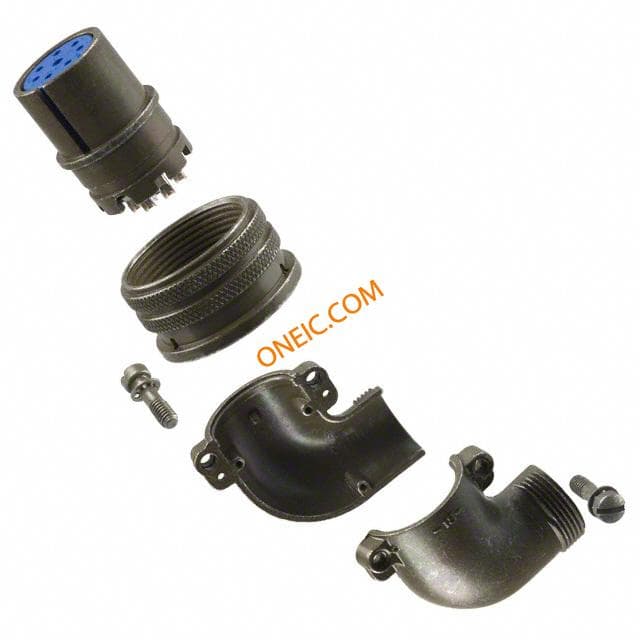

97-3108B-18-8S
