97-3102A-12SL-844P
| Manufacturer | |
| Description | Conn MIL-C-5015 Circular PIN 4 POS Solder ST Box Mount 4 Terminal 1 Port Circular MIL Spec Connector 4P Sz 12SL Box Mount Pin Recept Solder CONN RCPT 4POS BOX MNT W/PIN connector;metal circ;box recept;no bkshl;size 12sl;4#16 solder pin cont;olive CIRCULAR, RECEPTACLE, 12SL-844, BOX connector, metal circ, box recept, no bkshl, size 12sl, 4#16 solder pin cont, olive |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 973102A12SL844P | Product Category | Circular MIL Spec Connector |
| Standard Package | Bulk | ||
Compliance
| RoHS | No | MIL Type | MIL-DTL-5015 |
| Tariff No | 85369010 | Approval Agency Marking | UL/CSA |
Electrical
| Voltage Rating | 500VAC, 700VDC | Current Rating (Max) | 13A |
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Cable Exit | Solid | Shell Size | 12 |
| Wire Gauge | 16 | Orientation | N (Normal) |
| Shell Style | Potting | Termination | Solder |
| Contact Type | Pin | Mounting Type | Box Mount |
| Shell Plating | Olive Drab Chromate over Cadmium | Angle of Throw | Straight |
| Connector Type | Receptacle, Male Pins | Contact Finish | Silver |
| Fastening Type | Threaded | Housing Finish | Olive Drab Cadmium |
| Mounting Style | Panel | Package / Case | Metal |
| Shell Material | Aluminum Alloy | Connector Usage | Threaded |
| Insertion Angle | 12SL-844 | Material - Body | :Aluminium |
| Contact Material | Copper Alloy | Housing Material | Aluminum Alloy |
| Primary Material | 5015 Commercial | Termination Style | Solder |
| 1st Contact Gender | Socket (Female) | Mating Orientation | Threaded |
| Number of Contacts | 4 | Contact Termination | :Solder |
| Dielectric Material | Diallyl-Phthalate | Number of Positions | 4 |
| Shell Size - Insert | 12SL-844 | Mounting Hole Diameter | 0.12 " |
| Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated | Contact Layout, Typical | 4#16 |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Type | MIL-C-5015 Circular | Class | A |
| Gender | RCP | Series | 97 |
| Manufacturer | 97 Series | Product Type | Receptacles |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
97-60-12
amphenol

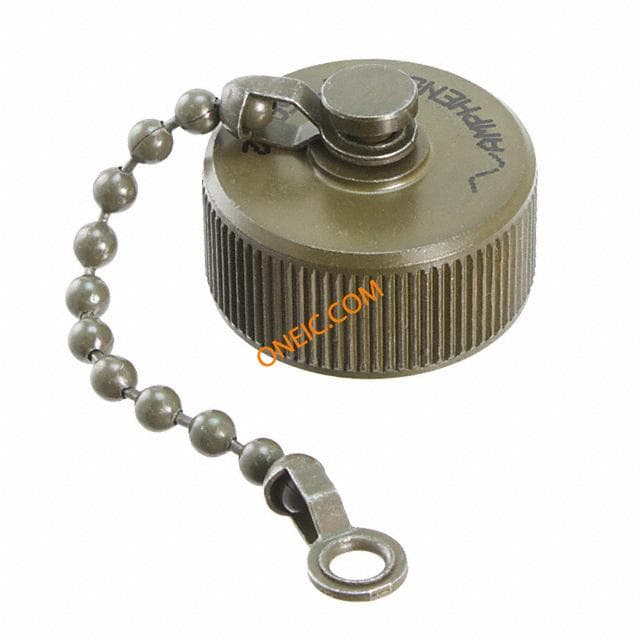

Connector Accessories Metal Protection Cap Bead Chain For Receptacle CONN CAP SIZE 12, 12S, 12SL RCPT connector accessory;metal prot cap w/bead chain;for size 12 recept;olive drab Circular MIL Spec Tools, Hardware & Accessories RECPT. CAP 12 12SL connector accessory, metal prot cap w/bead chain, for size 12 recept, olive drab
