97-3102A-12S-3S
| Manufacturer | |
| Description | Conn MIL-C-5015 Circular SKT 2 POS Solder ST Box Mount 2 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RECEPT BOX MNT 2POS W/SOCK connector;metal circ;box receptacle;size 12s;2 #16 solder socket cont;olive drab Circular MIL Spec Connector 2P Sz 12S Box Mount Socket Recept Solder CIRCULAR CONN, RCPT, SIZE 12S, 2POS, BOX connector, metal circ, box receptacle, size 12s, 2 #16 solder socket cont, olive drab |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Circular MIL Spec Connector | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL Type | MIL-DTL-5015 |
| Tariff No | 85366910 | Approval Agency Marking | UL/CSA |
Electrical
| Voltage Rating | 500VAC, 700VDC | Current Rating (Max) | 13A |
Mechanical
| Weight | 0.014 | Packaging | Bulk |
| Cable Exit | Solid | Shell Size | 12S |
| Wire Gauge | 16-22 | Orientation | N (Normal) |
| Shell Style | box mount receptable | Termination | Solder |
| Contact Type | socket contacts | Mounting Type | Box Mount |
| Shell Plating | Olive Drab Chromate over Cadmium | Angle of Throw | Straight |
| Connector Type | Amphenol 97 Series - Standard Cylindrical Connector - solder type | Contact Finish | Silver |
| Fastening Type | Threaded | Housing Finish | Olive Drab Cadmium |
| Mounting Style | Panel | Package / Case | Metal |
| Shell Material | solid backshell | Connector Usage | Threaded |
| Insertion Angle | 12S-3 | Material - Body | :Aluminium Alloy |
| Housing Material | Aluminum Alloy | Primary Material | 5015 Commercial |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 2 | Dielectric Material | Diallyl-Phthalate |
| Number of Positions | 2 | Shell Size - Insert | 12S-3 |
| Mounting Hole Diameter | 0.12 " | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
| Contact Layout, Typical | 2#16 | 1st Connector Mounting Type | :Box |
Product Info
| Type | MIL-C-5015 Circular | Class | A |
| Gender | RCP | Series | 97 |
| Manufacturer | 97 Series | Product Type | Receptacles |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
97-60-12
amphenol

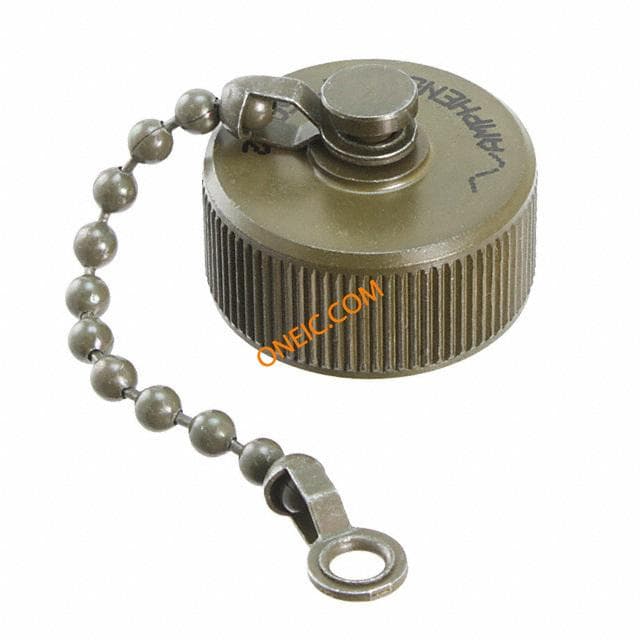

Connector Accessories Metal Protection Cap Bead Chain For Receptacle CONN CAP SIZE 12, 12S, 12SL RCPT connector accessory;metal prot cap w/bead chain;for size 12 recept;olive drab Circular MIL Spec Tools, Hardware & Accessories RECPT. CAP 12 12SL connector accessory, metal prot cap w/bead chain, for size 12 recept, olive drab
