97-3101A-32-8S
| Manufacturer | |
| Description | Conn MIL-C-5015 Circular SKT 30 POS Solder ST Cable Mount 30 Terminal 1 Port CONN RCPT 30POS CABLE SKT SLD connector;metal circ;cable recept;size 32;6#12 & 24#16 solder socket cont;olive Circular MIL Spec Connector 30P Sz 32 Sckt Cable Receptacle Solder connector, metal circ, cable recept, size 32, 6#12 & 24#16 solder socket cont, olive SEE 605-2154 97-3101A-32-8S |
| Category |
Business
| Other Names | 973101A328S | Product Category | Circular MIL Spec Connector |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS non-compliant | MIL Type | MIL-DTL-5015 |
| Approval Agency Marking | UL/CSA | ||
Electrical
| Voltage Rating | 500VAC, 700VDC | Current Rating (Max) | 13A, 23A |
Mechanical
| Packaging | Bulk | Cable Exit | Solid |
| Shell Size | 32 | Wire Gauge | 12-14, 16-22 |
| Orientation | N (Normal) | Shell Style | In-Line |
| Termination | Solder | Contact Type | Socket |
| Mounting Type | Cable Mount | Shell Plating | Olive Drab Chromate over Cadmium |
| Angle of Throw | Straight | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Olive Drab Cadmium | Mounting Style | Cable |
| Package / Case | Metal | Shell Material | Aluminum Alloy |
| Connector Usage | Threaded | Insertion Angle | 32-8 |
| Housing Material | Aluminum Alloy | Primary Material | 5015 Commercial |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 30 | Dielectric Material | Diallyl-Phthalate |
| Number of Positions | 30 | Shell Size - Insert | 32-8 |
| Mounting Hole Diameter | 0.173 " | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
| Contact Layout, Typical | 6#12, 24#16 | ||
Product Info
| Type | MIL-C-5015 Circular | Class | A |
| Gender | RCP | Series | 97 |
| Manufacturer | 97 Series | Product Type | Receptacles |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts
97-3057-1020
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 32 connector accessory;ms3057a cable clamp;connector size 32;olive drab finish Circular MIL Spec Strain Reliefs & Adapters Cable Clamp MS3057A Size 32 CIRCULAR CABLE CLAMP, SIZE 32 ZINC ALLOY CIRCULAR CABLE CLAMP, SIZE 32 , DIECAST CABLE CLAMP, SIZE 32 connector accessory, ms3057a cable clamp, connector size 32, olive drab finish Amphenol 97 系列 尺寸32 电缆夹, 使用于带护套电缆，带管道保护的电线
97-3106A-32-8P
amphenol
Conn MIL-C-5015 Circular PIN 30 POS Solder ST Cable Mount 30 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 30POS STRAIGHT W/PIN connector;metal circ;str plug;size 32;6#12 & 24#16 solder pin contact;olive drab Circular MIL Spec Connector 30P Strt Pin Plug Sz 32 Solder connector, metal circ, str plug, size 32, 6#12 & 24#16 solder pin contact, olive drab

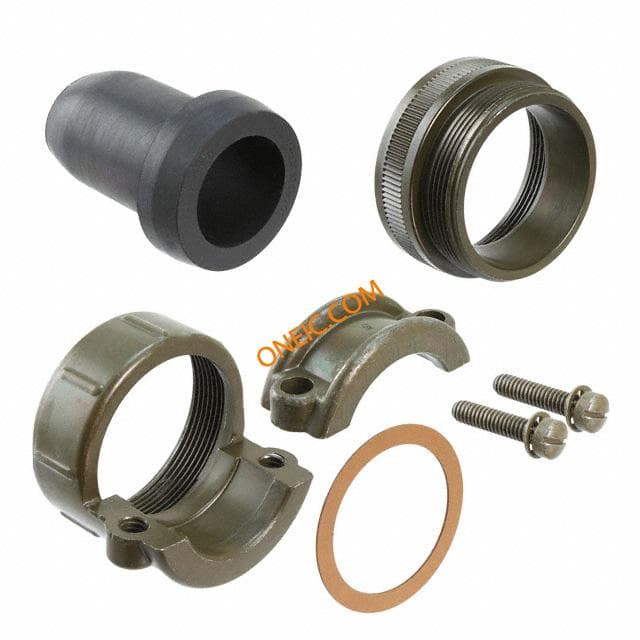

97-67-32-20
