97-3101A-18-22S
| Manufacturer | |
| Description | Conn MIL-C-5015 Circular SKT 3 POS Solder ST Cable Mount 3 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RCPT 3POS CABLE SKT SLD connector;metal circ;cable recept;size 18;3 #16 solder socket cont;olive drab Circular MIL Spec Connector 3P Shell Size 18 Cable Mount Recpt connector, metal circ, cable recept, size 18, 3 #16 solder socket cont, olive drab |
| Category |
Business
| Other Names | 973101A1822S | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS non-compliant | MIL Type | MIL-DTL-5015 |
| Approval Agency Marking | UL/CSA | ||
Electrical
| Voltage Rating | 900VAC, 1250VDC | Current Rating (Max) | 13A |
Mechanical
| Packaging | Bulk | Cable Exit | Solid |
| Shell Size | 18 | Wire Gauge | 16 |
| Orientation | N (Normal) | Shell Style | cable connecting receptacle |
| Termination | Solder | Contact Type | socket contacts |
| Mounting Type | Cable Mount | Shell Plating | Olive Drab Chromate over Cadmium |
| Angle of Throw | Straight | Connector Type | Amphenol 97 Series - Standard Cylindrical Connector - solder type |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Olive Drab Cadmium | Mounting Style | Wire |
| Package / Case | Metal | Shell Material | solid backshell |
| Connector Usage | Threaded | Insertion Angle | 18-22 |
| Contact Material | Copper Alloy | Housing Material | Aluminum Alloy |
| Primary Material | 5015 Commercial | Termination Style | Solder |
| 1st Contact Gender | Socket (Female) | Mating Orientation | Threaded |
| Number of Contacts | 3 | Dielectric Material | Diallyl-Phthalate |
| Number of Positions | 3 | Shell Size - Insert | 18-22 |
| Mounting Hole Diameter | 0.12 " | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
| Contact Layout, Typical | 3#16 | ||
Product Info
| Type | MIL-C-5015 Circular | Class | A |
| Gender | RCP | Series | 97 |
| Manufacturer | 97 Series | Product Type | Receptacles |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts
97-3057-1010
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 18 connector accessory;ms3057a cable clamp;connector size 18;olive drab finish Circular MIL Spec Strain Reliefs & Adapters Cable Clamp MS3057A Size 18 CABLE GLAND, SHELL SIZE 18 CABLE CLAMP, SIZE 18 connector accessory, ms3057a cable clamp, connector size 18, olive drab finish Amphenol 97 系列 尺寸18 电缆夹, 使用于带护套电缆，带管道保护的电线

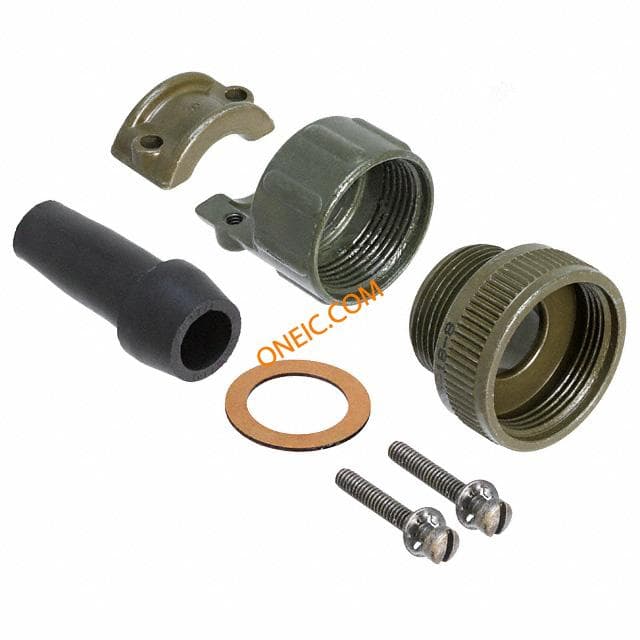

97-67-18-8
amphenol
Connector Accessories Water Resistant Cable Clamp Zinc Die Cast Alloy/Rubber Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 18 connector accessory;water resistant cable clamp;conn size 18;olive drab finish Circular MIL Spec Strain Reliefs & Adapters WR CLAMP 18 connector accessory, water resistant cable clamp, conn size 18, olive drab finish Cabel hood and fastener; Case: size 18; 11.12mm
97-3057-10-6
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 18 connector accessory;an3057 cable clamp;step down;conn size 18;olive drab finish Circular MIL Spec Strain Reliefs & Adapters REAR CLAMP CIRCULAR CABLE CLAMP, SIZE 18 , DIECAST CIRCULAR CABLE CLAMP, SIZE 18 ZINC ALLOY connector accessory, an3057 cable clamp, step down, conn size 18, olive drab finish Amphenol 97 系列 尺寸18 电缆夹, 使用于带护套电缆，带管道保护的电线
97-67-18-6
amphenol
Connector Accessories Water Resistant Cable Clamp Zinc Die Cast Alloy/Rubber Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 18 connector accessory;water resistant cable clamp;size 18;olive drab finish Circular MIL Spec Strain Reliefs & Adapters WR CLAMP 18 connector accessory, water resistant cable clamp, size 18, olive drab finish
97-3057-10
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 18 connector accessory;an3057 cable clamp;connector size 18;olive drab finish Circular MIL Spec Strain Reliefs & Adapters REAR CLAMP 18 CIRCULAR CABLE CLAMP, SIZE 18 DIECAST CIRCULAR CABLE CLAMP, SIZE 18 ZINC ALLOY connector accessory, an3057 cable clamp, connector size 18, olive drab finish Amphenol 97 系列 尺寸18 电缆夹, 使用于带护套电缆，带管道保护的电线

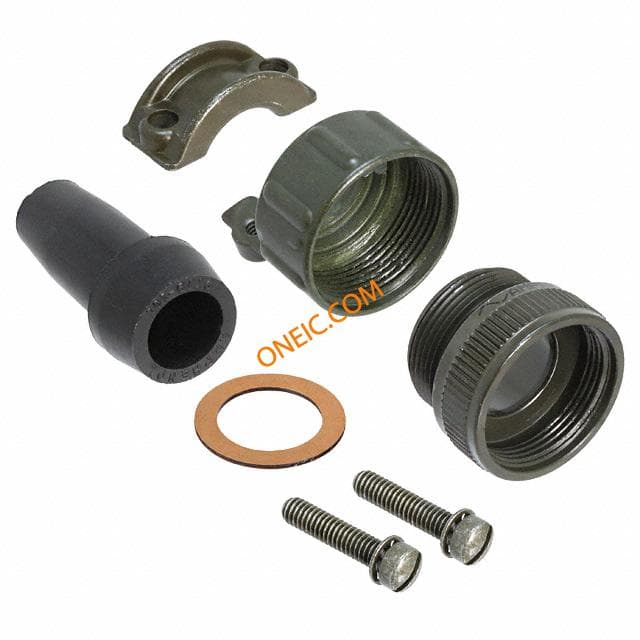

97-67-18-10
amphenol
Connector Accessories Water Resistant Cable Clamp Zinc Die Cast Alloy/Rubber Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 18 connector accessory;water resistant cable clamp;conn size 18;olive drab finish Circular MIL Spec Strain Reliefs & Adapters WR CLAMP 18 CIRCULAR CABLE CLAMP, SIZE 18 ZINC ALLOY CABLE CLAMP, SIZE 18, DIECAST ZINC connector accessory, water resistant cable clamp, conn size 18, olive drab finish
97-3057-1010-1
amphenol
Connector Accessories Clamp/Bushing Zinc Die Cast Alloy/Rubber Olive Drab/Green Chromate Miscellaneous Connector Accessories CONN CABLE CLAMP SIZE 18 Straight multipole cable clamp,Size 18 Circular MIL Spec Strain Reliefs & Adapters Clamp with Bushing Size 18 CIRCULAR CABLE CLAMP, SIZE 18, ZINC ALLOY CABLE CLAMP AND BUSH, SIZE 18 connector accessory, cable clamp with rubber bushing, size 18, olive drab Amphenol 97 系列 橄榄色 压铸件锌 电缆夹, 15.88mm 捆束直径

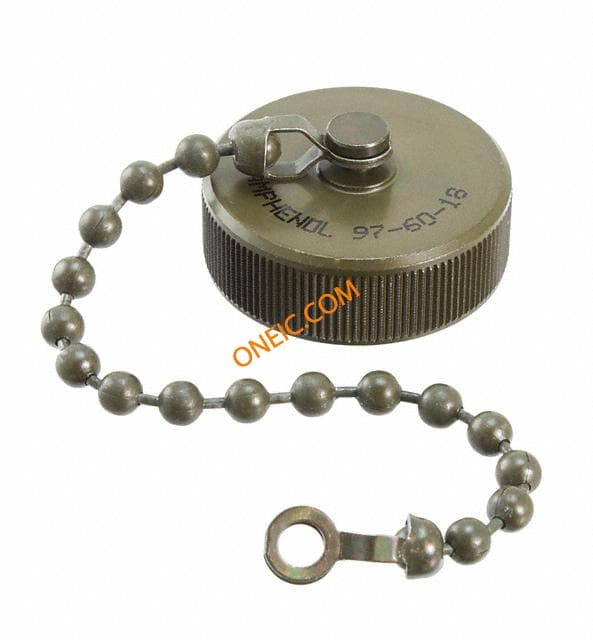

97-60-18
