97-3101A-16-10P
| Manufacturer | |
| Description | Conn MIL-C-5015 Circular PIN 3 POS Solder ST Cable Mount 3 Terminal 1 Port CONN RCPT 3POS CABLE PIN SLD connector;metal circ;cable recept;size 16;3 #12 solder pin contact;olive drab Circular MIL Spec Connector 3P Sz 10 Pin Cable Receptacle Solder connector, metal circ, cable recept, size 16, 3 #12 solder pin contact, olive drab |
| Category |
Business
| Other Names | 973101A1610P | Product Category | Circular MIL Spec Connector |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS non-compliant | MIL Type | MIL-DTL-5015 |
| Approval Agency Marking | UL/CSA | ||
Electrical
| Voltage Rating | 500VAC, 700VDC | Current Rating (Max) | 23A |
Mechanical
| Packaging | Bulk | Cable Exit | Solid |
| Shell Size | 16 | Wire Gauge | 12-14 |
| Orientation | N (Normal) | Shell Style | In-Line |
| Termination | Solder | Contact Type | Pin |
| Mounting Type | Cable Mount | Shell Plating | Olive Drab Chromate over Cadmium |
| Angle of Throw | Straight | Connector Type | Receptacle, Male Pins |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Olive Drab Cadmium | Mounting Style | Cable |
| Package / Case | Metal | Shell Material | Aluminum Alloy |
| Connector Usage | Threaded | Insertion Angle | 16-10 |
| Housing Material | Aluminum Alloy | Primary Material | 5015 Commercial |
| Termination Style | Solder | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 3 | Dielectric Material | Diallyl-Phthalate |
| Number of Positions | 3 | Shell Size - Insert | 16-10 |
| Mounting Hole Diameter | 0.12 " | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
| Contact Layout, Typical | 3#12 | ||
Product Info
| Type | MIL-C-5015 Circular | Class | A |
| Gender | RCP | Series | 97 |
| Manufacturer | 97 Series | Product Type | Receptacles |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts
97-67-16-6
amphenol
Connector Accessories Water Resistant Cable Clamp Zinc Die Cast Alloy/Rubber Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 16, 16S connector accessory;water resistant cable clamp;size 16s;16;olive drab finish Circular MIL Spec Strain Reliefs & Adapters WR CLAMP 16S 16 connector accessory, water resistant cable clamp, size 16s, 16, olive drab finish
97-60-16
amphenol
Connector Accessories Metal Protection Cap Bead Chain For Receptacle CONN CAP FOR SIZE 16, 16S RCPT Chassis mount plug&skt dust cap,Size 16S Circular MIL Spec Tools, Hardware & Accessories RECPT. CAP 16 16S connector accessory, metal prot cap w/bead chain, for size 16 recept, olive drab Amphenol 97 系列 MIL-DTL-5015 插头 IP66 防尘盖, 尺寸16, 橄榄镉表面
97-3057-8
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 16, 16S connector accessory;an3057 cable clamp;connector size 16;16s;olive drab finish Circular MIL Spec Strain Reliefs & Adapters Cable Clamp AN3067 Shell Size 16, 16S CABLE CLAMP, SIZE 16/16S, ZINC ALLOY CABLE CLAMP, SIZE 16/16S, DIECAST ZINC connector accessory, an3057 cable clamp, connector size 16, 16s, olive drab finish Amphenol 97 系列 尺寸16, 16S 电缆夹, 使用于带护套电缆，带管道保护的电线
97-3055-16-6
amphenol

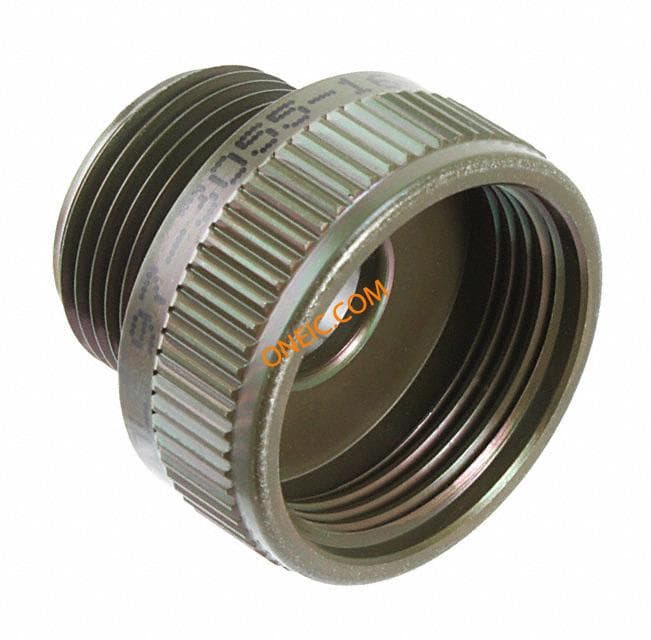

Connector Accessories Adapter Used As Reducing Bushing Circular MIL Spec Strain Reliefs & Adapters Bushing Adapter Shell Size 16, 16S CIRC REDUCING BUSHING SZ 16, 16S connector accessory;reducing/extending bushing;conn size 16s;16;conduit 3/8 inch connector accessory, reducing/extending bushing, conn size 16s, 16, conduit 3/8 inch
97-3057-1008-1
amphenol
Connector Accessories Clamp/Bushing Zinc Die Cast Alloy/Rubber Olive Drab/Green Chromate Miscellaneous Connector Accessories CONN CABLE CLAMP SIZE 16, 16S Straight multipole cable clamp,Size 16 Circular MIL Spec Strain Reliefs & Adapters Clamp with Bushing Size 16, 16S CABLE GLAND CLAMP CABLE CLAMP, SIZE 16, 16S connector accessory, cable clamp with rubber bushing, size 16, 16s, olive drab Amphenol 97 系列 橄榄色 铝合金 电缆夹, 14.27mm 捆束直径
97-3106A-16-10S
amphenol
Conn MIL-C-5015 Circular SKT 3 POS Solder ST Cable Mount 3 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 3POS STRAIGHT W/SKT connector;metal circ;straight plug;size 16;3 #12 solder socket cont;olive drab Circular MIL Spec Connector 3P Strt Socket Plug Sz 16 Solder connector, metal circ, straight plug, size16, 3 #12 solder socket cont, olive drab
97-3057-1008
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 16, 16S connector accessory;ms3057a cable clamp;connector size 16;16s;olive drab finish Circular MIL Spec Strain Reliefs & Adapters Cable Clamp MS3057A Size 16, 16S CABLE CLAMP, SIZE 16, 16S CABLE GLAND, SHELL SIZE 16/16S connector accessory, ms3057a cable clamp, connector size 16, 16s, olive drab finish
97-67-16-8
amphenol

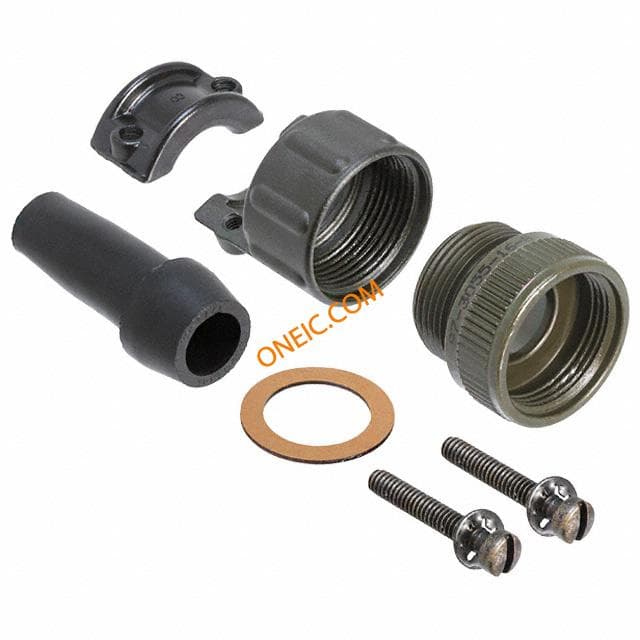

Connector Accessories Water Resistant Cable Clamp Zinc Die Cast Alloy/Rubber Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 16, 16S connector accessory;water resistant cable clamp;size 16s;16;olive drab finish Circular MIL Spec Strain Reliefs & Adapters WR CABLE CLAMP16S 16 connector accessory, water resistant cable clamp, size 16s, 16, olive drab finish
