97-3100A-32-17P
| Manufacturer | |
| Description | Conn MIL-C-5015 Circular PIN 4 POS Solder ST Wall Mount 4 Terminal 1 Port Circular MIL Spec Connector 4P Sz 32 Wall Mount Pin Recept Solder CONN RCPT 4POS WALL MNT PIN SLD connector;metal circ;wall recept;size 32;4 #4 solder pin contact;olive drab connector, metal circ, wall recept, size 32, 4 #4 solder pin contact, olive drab |
| Category |
Business
| Other Names | 973100A3217P | Product Category | Circular MIL Spec Connector |
| Standard Package | Bulk | ||
Compliance
| RoHS | No | MIL Type | MIL-DTL-5015 |
| Approval Agency Marking | UL/CSA | ||
Electrical
| Voltage Rating | 900VAC, 1250VDC | Current Rating (Max) | 80A |
Mechanical
| Packaging | Bulk | Cable Exit | Solid |
| Shell Size | 32 | Wire Gauge | 4 |
| Orientation | N (Normal) | Shell Style | Potting |
| Termination | Solder | Contact Type | Pin |
| Mounting Type | Wall Mount | Shell Plating | Olive Drab Chromate over Cadmium |
| Angle of Throw | Straight | Connector Type | Receptacle, Male Pins |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Olive Drab Cadmium | Mounting Style | Wire |
| Package / Case | Metal | Shell Material | Aluminum Alloy |
| Connector Usage | Threaded | Insertion Angle | 32-1 |
| Contact Material | Copper Alloy | Housing Material | Aluminum Alloy |
| Primary Material | 5015 Commercial | Termination Style | Solder |
| 1st Contact Gender | Pin (Male) | Mating Orientation | Threaded |
| Number of Contacts | 5 | Dielectric Material | Diallyl-Phthalate |
| Number of Positions | 4 | Shell Size - Insert | 32-17 |
| Mounting Hole Diameter | 0.173 " | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
| Contact Layout, Typical | 4#4 | ||
Product Info
| Type | MIL-C-5015 Circular | Class | A |
| Gender | RCP | Series | 97 |
| Manufacturer | 97 Series | Product Type | Receptacles |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts
97-3057-1020
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 32 connector accessory;ms3057a cable clamp;connector size 32;olive drab finish Circular MIL Spec Strain Reliefs & Adapters Cable Clamp MS3057A Size 32 CIRCULAR CABLE CLAMP, SIZE 32 ZINC ALLOY CIRCULAR CABLE CLAMP, SIZE 32 , DIECAST CABLE CLAMP, SIZE 32 connector accessory, ms3057a cable clamp, connector size 32, olive drab finish Amphenol 97 系列 尺寸32 电缆夹, 使用于带护套电缆，带管道保护的电线

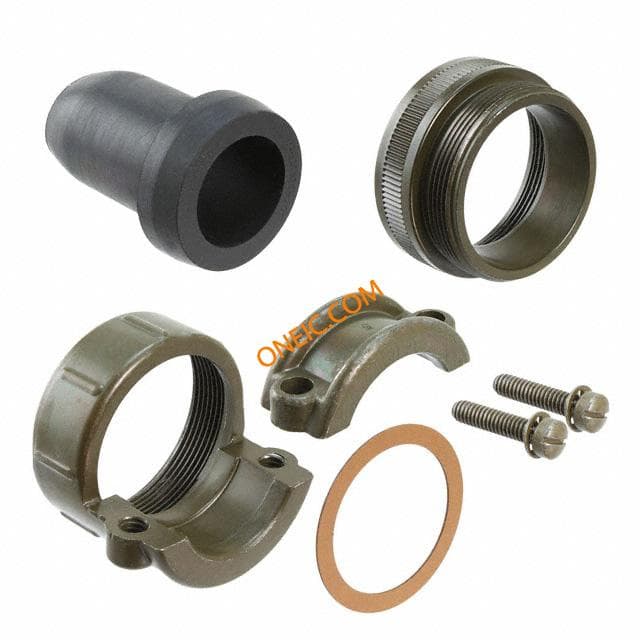

97-67-32-20
