97-3100A-28-12S
| Manufacturer | |
| Description | Conn MIL-C-5015 Circular SKT 26 POS Solder ST Wall Mount 26 Terminal 1 Port Circular MIL Spec Connector 26P Sz 28 Wall Mount Socket Recept Solder MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RCPT 26POS WALL MNT SKT SLD connector;metal circ;wall recept;size 28;26 #16 solder socket contact;olive drab connector, metal circ, wall recept, size 28, 26 #16 solder socket contact, olive drab |
| Category |
Business
| Other Names | 973100A2812S | Product Category | Circular MIL Spec Connector |
| Standard Package | Bulk | ||
Compliance
| RoHS | No | MIL Type | MIL-DTL-5015 |
| Approval Agency Marking | UL/CSA | ||
Electrical
| Voltage Rating | 500VAC, 700VDC | Current Rating (Max) | 13A |
Mechanical
| Packaging | Bulk | Cable Exit | Solid |
| Shell Size | 28 | Wire Gauge | 16 |
| Orientation | N (Normal) | Shell Style | Potting |
| Termination | Solder | Contact Type | socket contacts |
| Mounting Type | Wall Mount | Shell Plating | Olive Drab Chromate over Cadmium |
| Angle of Throw | Straight | Connector Type | Amphenol 97 Series - Standard Cylindrical Connector - solder type |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Olive Drab Cadmium | Mounting Style | Wire |
| Package / Case | Metal | Shell Material | Aluminum Alloy |
| Connector Usage | Threaded | Insertion Angle | 28-1 |
| Contact Material | Copper Alloy | Housing Material | Aluminum Alloy |
| Primary Material | 5015 Commercial | Termination Style | Solder |
| 1st Contact Gender | Socket (Female) | Mating Orientation | Threaded |
| Number of Contacts | 9 | Dielectric Material | Diallyl-Phthalate |
| Number of Positions | 26 | Shell Size - Insert | 28-12 |
| Mounting Hole Diameter | 0.147 " | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
| Contact Layout, Typical | 26#16 | ||
Product Info
| Type | MIL-C-5015 Circular | Class | A |
| Gender | RCP | Series | 97 |
| Manufacturer | 97 Series | Product Type | Receptacles |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts
97-60-28
amphenol
Connector Accessories Metal Protection Cap Bead Chain For Receptacle CONN CAP FOR SIZE 28 RCPT connector accessory;metal prot cap w/bead chain;for size 28 recept;olive drab Circular MIL Spec Tools, Hardware & Accessories RECPT. CAP 28 connector accessory, metal prot cap w/bead chain, for size 28 recept, olive drab
97-3057-1016
amphenol

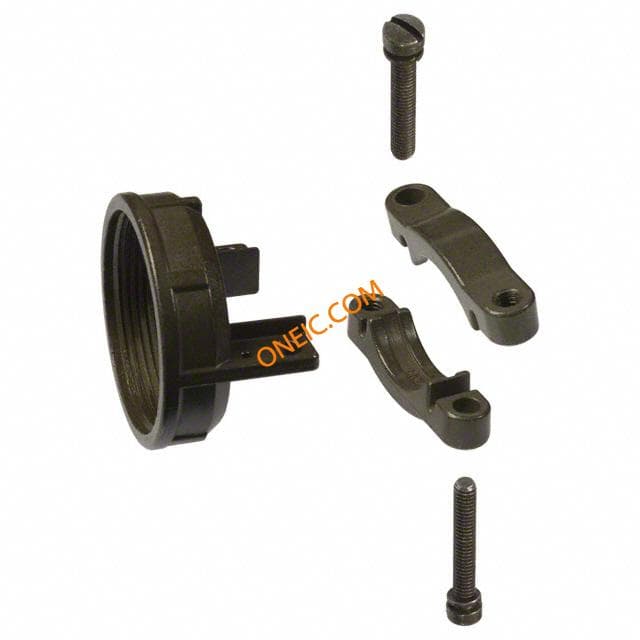

Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 24, 28 connector accessory;ms3057a cable clamp;connector sizes 24;28;olive drab finish Circular MIL Spec Strain Reliefs & Adapters Cable Clamp MS3057A Size 24, 28 CABLE CLAMP, SIZE 24/28, DIECAST ZINC CABLE CLAMP, SIZE 24/28, ZINC ALLOY CABLE CLAMP, SIZE 24, 28 connector accessory, ms3057a cable clamp, connector sizes 24, 28, olive drab finish
97-3057-16
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate Circular MIL Spec Strain Reliefs & Adapters Cable Clamp AN3057 Shell Size 24,28 CONN CABLE CLAMP SIZE 24, 28 connector accessory;an3057 cable clamp;connector size 24;28;olive drab finish CABLE CLAMP, SIZE 24/28, DIECAST ZINC CABLE CLAMP, SIZE 24/28, ZINC ALLOY connector accessory, an3057 cable clamp, connector size 24, 28, olive drab finish Amphenol 97 系列 尺寸24, 28 电缆夹, 使用于带护套电缆，带管道保护的电线
97-67-28-16
amphenol
Connector Accessories Water Resistant Cable Clamp Zinc Die Cast Alloy/Rubber Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 24, 28 connector accessory;water resistant cable clamp;conn size 24;28;olive drab fin Circular MIL Spec Strain Reliefs & Adapters WR CLAMP 24 28 connector accessory, water resistant cable clamp, conn size 24, 28, olive drab fin
97-3057-1016-1
amphenol
Connector Accessories Clamp/Bushing Zinc Die Cast Alloy/Rubber Olive Drab/Green Chromate Miscellaneous Connector Accessories CONN CABLE CLAMP SIZE 24, 28 Straight multipole cable clamp,Size24,28 Straight multipole cable clamp,Size 28 Circular MIL Spec Strain Reliefs & Adapters Clamp with Bushing Size 24, 28 CABLE CLAMP, SIZE 24/28, ZINC ALLOY CLAMP & BUSH, SIZE 24&28 connector accessory, cable clamp with rubber bushing, size 24, 28, olive drab Amphenol 97 系列 橄榄色 铝 电缆夹, 23.8mm 捆束直径
97-3106A-28-12P
amphenol
Conn MIL-C-5015 Circular PIN 26 POS Solder ST Cable Mount 26 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 26POS STRAIGHT W/PIN connector;metal circ;straight plug;size 28;26 #16 solder pin contact;olive drab Circular MIL Spec Connector 26P Strt Pin Plug Sz 28 Solder CIRCULAR CONNECTOR PLUG SIZE 28, 26POS, CABLE connector, metal circ, straight plug, size28, 26 #16 solder pin contact, olive drab
97-67-28-12
amphenol

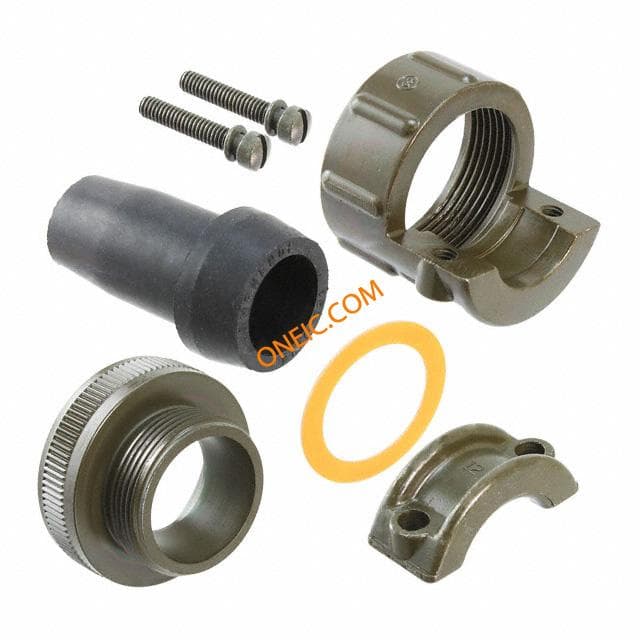

Connector Accessories Water Resistant Cable Clamp Zinc Die Cast Alloy/Rubber Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 24, 28 connector accessory;water resistant cable clamp;conn size 24;28;olive drab fin Circular MIL Spec Strain Reliefs & Adapters WR CLAMP 24 28 connector accessory, water resistant cable clamp, conn size 24, 28, olive drab fin
