97-3100A-14S-1S
| Manufacturer | |
| Description | Conn MIL-C-5015 Circular SKT 3 POS Solder ST Wall Mount 3 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RECEPT WALL MNT 3POS W/SOCK connector;metal circ;wall recept;size 14s;3 #16 solder socket cont;olive drab Circular MIL Spec Connector 3P Sz 14S Wall Mount Socket Recept Solder connector, metal circ, wall recept, size 14s, 3 #16 solder socket cont, olive drab |
| Category |
Business
| Product Category | Circular MIL Spec Connector | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL Type | MIL-DTL-5015 |
| Approval Agency Marking | UL/CSA | ||
Electrical
| Voltage Rating | 500VAC, 700VDC | Current Rating (Max) | 13A |
Mechanical
| Packaging | Bulk | Cable Exit | Solid |
| Shell Size | 14S | Wire Gauge | 16-22 |
| Orientation | N (Normal) | Shell Style | wall receptacle |
| Termination | Solder | Contact Type | socket contacts |
| Mounting Type | Wall Mount | Shell Plating | Olive Drab Chromate over Cadmium |
| Angle of Throw | Straight | Connector Type | Amphenol 97 Series - Standard Cylindrical Connector - solder type |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Olive Drab Cadmium | Mounting Style | Panel |
| Package / Case | Metal | Shell Material | solid backshell |
| Connector Usage | Threaded | Insertion Angle | 14S-1 |
| Housing Material | Aluminum Alloy | Primary Material | 5015 Commercial |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 3 | Dielectric Material | Diallyl-Phthalate |
| Number of Positions | 3 | Shell Size - Insert | 14S-1 |
| Mounting Hole Diameter | 0.12 " | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
| Contact Layout, Typical | 3#16 | ||
Product Info
| Type | MIL-C-5015 Circular | Class | A |
| Gender | RCP | Series | 97 |
| Manufacturer | 97 Series | Product Type | Receptacles |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts
97-67-14-4
amphenol
Connector Accessories Water Resistant Cable Clamp Zinc Die Cast Alloy/Rubber Olive Drab/Green Chromate CONN CBL CLAMP SZ 12SL, 14, 14S connector accessory;water resistant cable clamp;size 12sl;14;14s;olive drab Circular MIL Spec Strain Reliefs & Adapters WR CLAMP 12SL 14S 14 connector accessory, water resistant cable clamp, size 12sl, 14, 14s, olive drab
97-3057-6
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CBL CLAMP SZ 12SL, 14, 14S Circular MIL Spec Strain Reliefs & Adapters Cable Clamp AN3062 Size 12S, 14, 14S CABLE GLAND, CLAMP 97 SERIES connector accessory, an3057 cable clamp, connector size 12sl, 14, 14s, olive drab
97-3057-1007
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CBL CLAMP SZ 12SL, 14, 14S connector accessory;ms3057a cable clamp;connector size 12sl;14;14s;olive drab Circular MIL Spec Strain Reliefs & Adapters Cable Clamp MS3057A Size 12SL, 14, 14S CABLE CLAMP, SIZE 12SL, 14, 14S CABLE GLAND, SHELL SIZE 12 connector accessory, ms3057a cable clamp, connector size 12sl, 14, 14s, olive drab
97-3057-1007-1
amphenol
Connector Accessories Clamp/Bushing Zinc Die Cast Alloy/Rubber Olive Drab/Green Chromate Miscellaneous Connector Accessories CONN CBL CLAMP SZ 12SL, 14, 14S Straight multipole cable clamp,Size 14 Circular MIL Spec Strain Reliefs & Adapters Clamp with Bushing Size 12SL, 14, 14S CIRCULAR CABLE CLAMP SIZE 12SL/14/14S, ZINC ALLOY CIRCULAR CLAMP, SIZE 14/14S, ALUMINIUM connector accessory, cable clamp with rubber bushing, size 12sl, 14, 14s, olive drab Amphenol 97 系列 橄榄色 压铸件锌 电缆夹, 11.1mm 捆束直径
97-3108B-14S-1P
amphenol

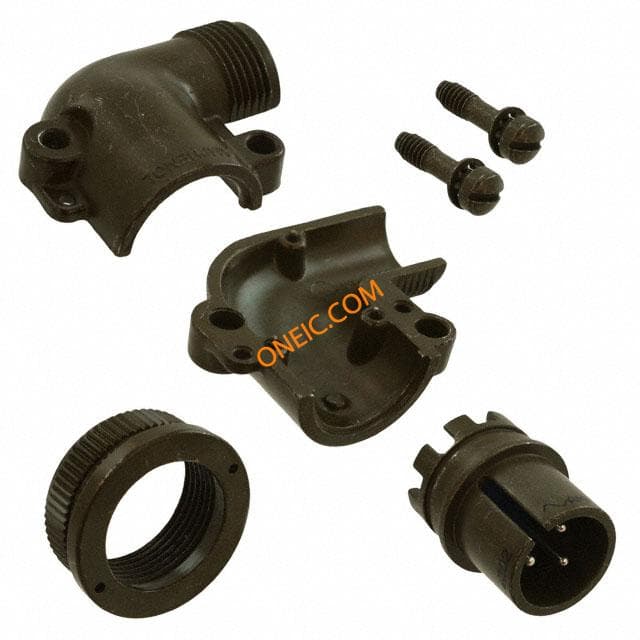

Conn MIL-C-5015 Circular PIN 3 POS Solder RA Cable Mount 3 Terminal 1 Port CONN PLUG RT ANG 3POS W/PINS connector;metal circ;rt angle plug;size 14s;3 #16 solder pin contact;olive drab connector, metal circ, rt angle plug, size14s, 3 #16 solder pin contact, olive drab
