97-3100A-10SL-3P
| Manufacturer | |
| Description | Conn MIL-C-5015 Circular PIN 3 POS Solder ST Wall Mount 3 Terminal 1 Port CONN RCPT 3POS WALL MNT W/PIN connector;metal circ;wall recept;size 10sl;3#16 solder pin contact;olive drab Circular MIL Spec Connector 2P Sz 10SL Wall Mnt Socket Recpt Solder connector, metal circ, wall recept, size 10sl, 3#16 solder pin contact, olive drab |
| Category |
Business
| Other Names | 973100A10SL3P | Product Category | Circular MIL Spec Connector |
| Standard Package | Bulk | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL Type | MIL-DTL-5015 |
| Approval Agency Marking | UL/CSA | ||
Electrical
| Voltage Rating | 500VAC, 700VDC | Current Rating (Max) | 13A |
Mechanical
| Packaging | Bulk | Cable Exit | Solid |
| Shell Size | 10 | Wire Gauge | 16-22 |
| Orientation | N (Normal) | Shell Style | Wall Mount |
| Termination | Solder | Contact Type | Pin |
| Mounting Type | Wall Mount | Shell Plating | Olive Drab Chromate over Cadmium |
| Angle of Throw | Straight | Connector Type | Receptacle, Male Pins |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Olive Drab Cadmium | Mounting Style | Panel |
| Package / Case | Metal | Shell Material | Aluminum Alloy |
| Connector Usage | Threaded | Insertion Angle | 10SL-3 |
| Housing Material | Aluminum Alloy | Primary Material | 5015 Commercial |
| Termination Style | Solder | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 3 | Dielectric Material | Diallyl-Phthalate |
| Number of Positions | 3 | Shell Size - Insert | 10SL-3 |
| Mounting Hole Diameter | 0.12 " | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
| Contact Layout, Typical | 3#16 | ||
Product Info
| Type | MIL-C-5015 Circular | Class | A |
| Gender | RCP | Series | 97 |
| Manufacturer | 97 Series | Product Type | Receptacles |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts
97-3057-4
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 10SL, 12S connector accessory;an3057 cable clamp;for connector size 10sl;12;12s;olive drab Circular MIL Spec Strain Reliefs & Adapters Cable Clamp AN3059 Shell Size 10SL, 12S CABLE GLAND, CLAMP 97 SERIES connector accessory, an3057 cable clamp, for connector size 10sl, 12, 12s, olive drab
97-3057-1004
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 10SL, 12S connector accessory;ms3057a cable clamp;connector size 10sl;12;12s;olive drab Circular MIL Spec Strain Reliefs & Adapters Cable Clamp MS3057A Size 10SL, 12S CABLE GLAND, SHELL SIZE 10 CABLE CLAMP, SIZE 10SL, 12S connector accessory, ms3057a cable clamp, connector size 10sl, 12, 12s, olive drab Amphenol 97 系列 尺寸10SL, 12S 电缆夹, 使用于带护套电缆，带管道保护的电线
97-3106A-10SL-3S
amphenol
Conn MIL-C-5015 Circular SKT 3 POS Solder ST Cable Mount 3 Terminal 1 Port CONN PLUG 3POS W/SOCKETS connector;metal circ;str plug;solid bkshl;size 10sl;3#16 solder socket;olive SOCKET, FREE, 3WAY connector, metal circ, str plug, solid bkshl, size 10sl, 3#16 solder socket, olive

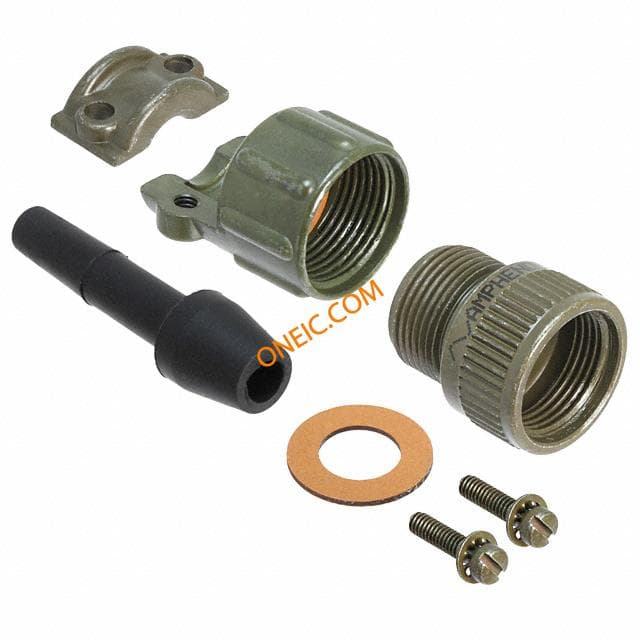

97-67-12-4
amphenol
Connector Accessories Water Resistant Cable Clamp/Bushing Zinc Alloy/Rubber Olive Drab/Green Chromate CONN CBL CLAMP SZ 10SL, 12, 12S connector accessory;water resistant cable clamp;size 10sl;12;12s;olive drab Circular MIL Spec Strain Reliefs & Adapters WR CLAMP 10SL 12S 12 connector accessory, water resistant cable clamp, size 10sl, 12, 12s, olive drab

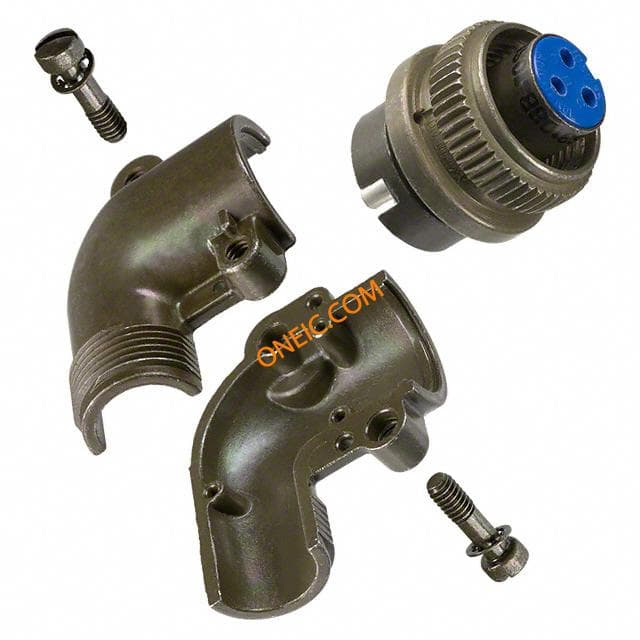

97-3108B-10SL-3S
amphenol
Conn MIL-C-5015 Circular SKT 3 POS Solder RA Cable Mount 3 Terminal 1 Port CONN PLUG RT ANG 3POS W/SOCKETS connector;metal circ;rt angle plug;split bkshl;size 10sl;3#16 solder socket;oliv Circular MIL Spec Connector 3P Size 10SL Solder R/A Socket Plug connector, metal circ, rt angle plug, split bkshl, size 10sl, 3#16 solder socket, oliv
97-3057-1004-1
amphenol
Connector Accessories Clamp/Bushing Zinc Die Cast Alloy/Rubber Olive Drab/Green Chromate Miscellaneous Connector Accessories CONN CABLE CLAMP SIZE 10SL, 12S Straight multipole cable clamp,Size 10 Circular MIL Spec Strain Reliefs & Adapters Clamp with Bushing Size 10SL, 12S CABLE CLAMP, SIZE 10SL/12S, ZINC ALLOY CIRCULAR CLAMP, SIZE 10SL/12S, ALUMINIUM connector accessory, cable clamp with rubber bushing, size 10sl, 12, 12s, olive drab Amphenol 97 系列 橄榄色 铝 电缆夹, 7.92mm 捆束直径

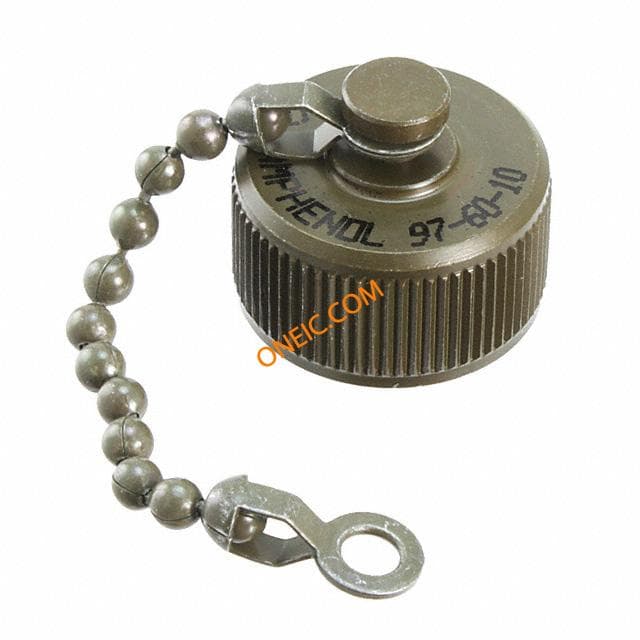

97-60-10
