031-71053-1010
| Manufacturer | |
| Description | Conn BNC RCP 0Hz to 1GHz 75Ohm Solder RA Thru-Hole Gold CONN BNC JACK R/A 75 OHM PCB Connector; RF; BNC; Rt. Angle; PCB Jack; Bulkhead Mnt; 75 Ohm; Nickel/Gold |
| Category |
Business
| Standard Package | 25 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Impedance | 75 Ohm | Voltage Rating | 500V |
| Frequency - Max | 1GHz | ||
Mechanical
| Height | 13.1 mm | Packaging | Tray |
| Body Finish | Nickel | Termination | Solder |
| Body Material | Zinc Die Cast | Housing Color | Silver |
| Mounting Type | Panel Mount, Bulkhead; Through Hole, Right Angle | Connector Type | Jack, Female Socket |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Mounting Style | Through Hole | Plating - Body | Nickel |
| Connector Style | BNC | Length - Overall | 35.6 mm |
| Shield Termination | Solder | Contact Termination | Solder |
| Dielectric Material | Polypropylene (PP) | Insulation Material | Polytetrafluoroethyl |
| Center Contact Plating | Gold | Center Contact Material | Phosphor Bronze |
| Supplier Device Package | Right Angle | ||
Product Info
| Type | BNC | Gender | RCP |
| Features | Board Lock, Isolated | Connection Type | PCB |
Environmental
| Operating Temperature | -55°C ~ 85°C | ||
Similar Parts

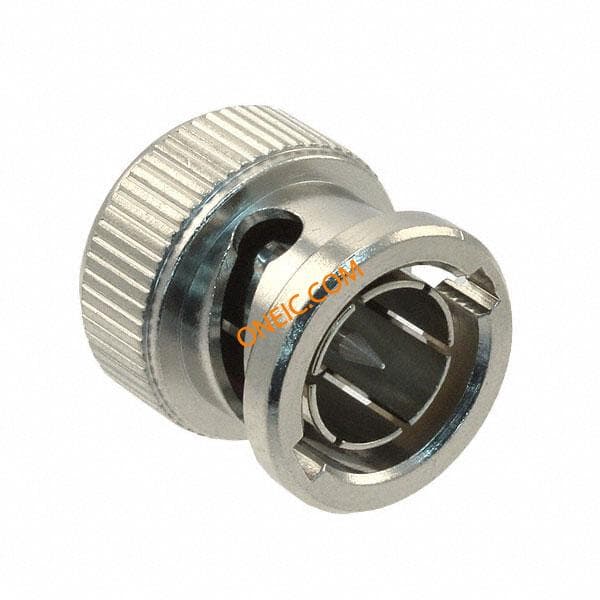

000-5275
amphenol
Connector Accessories BNC 51Ohm Male Shorting Cap and Chain Nickel CONN PLUG BNC SHORTING W/O CHAIN Coaxial/RF; Cap-NoChain; BNC; Shorting; Male; Nickel; forJacksandRecep; Straight; 75Ohms

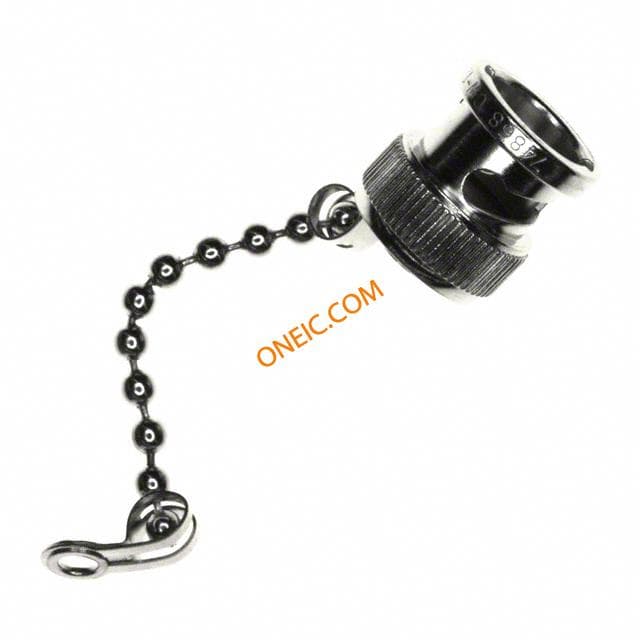

031-6
amphenol
Connector Accessories BNC 50Ohm Male Cap and Chain Connector Accessories BNC 51Ohm Male Shorting Cap and Chain Nickel CONN BNC MALE CAP & CHAIN Coaxial/RF; Cap-w/Chain; BNC; Protective; Male; Nickel; forJacksandRecep; Str.; 75Ohms

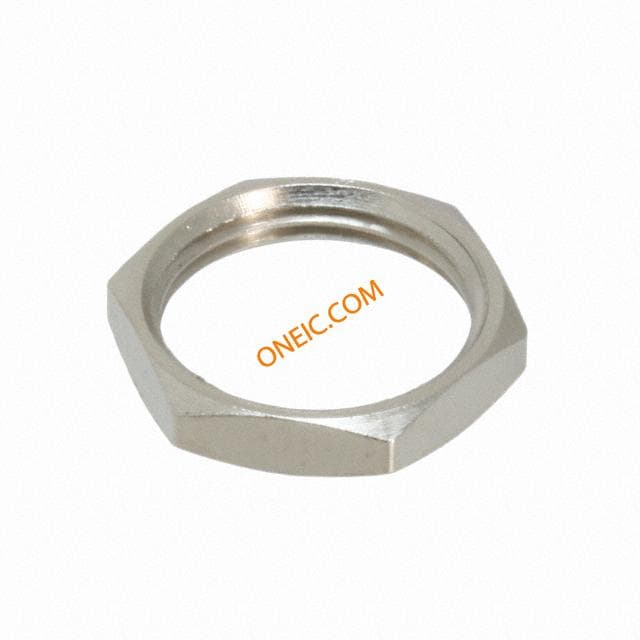

31-5652
